Refilling Hydraulic Oil

IMPORTANT: Always use specified oil (see "Fuel, Lubricants, Coolant and Capacities" Section). Carefully clean filler neck area before filling with fresh oil.

Refilling Bevel Gear Drive with Oil:

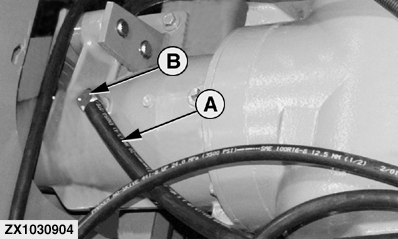

Remove hose (A) and elbow (B).

By means of a hose and a funnel, refill approx. 11 L (2.9 U.S. gal) of fresh oil through filler neck. Reinstall elbow and hose.

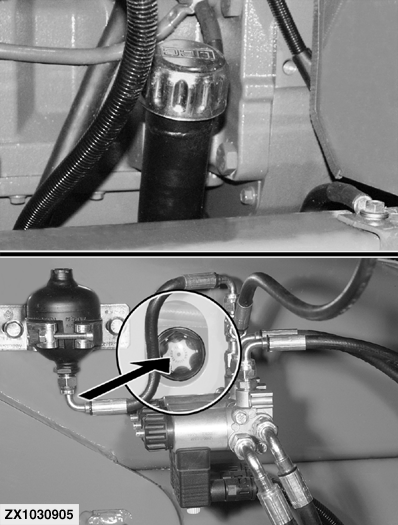

Refilling Hydraulic Oil Tank with Oil:

Refill at filler neck up to upper sight glass.

OUZXMAY,0000399 -19-10FEB02-1/1
