Low Pressure Switch

IMPORTANT: Use the highest comfortable blower speed and adjust air conditioning temperature to an intermediate setting. Avoid operating with lowest blower speed at maximum cooling temperature.

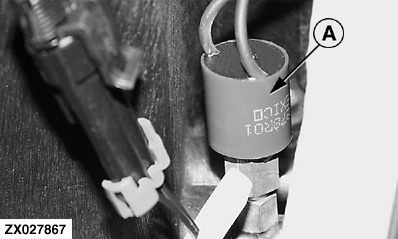

Low pressure (A) (located under training seat) protects the compressor if refrigerant is lost. The switch can also activate if there is insufficient air flow across the evaporator. It can also cause the compressor to cycle on cool days or if there is a slow leak in the system.

If the compressor cycles excessively, or if there is no cooling, see your John Deere dealer.

A-Low Pressure Switch

OUZXMAY,000039E -19-14FEB02-1/1
