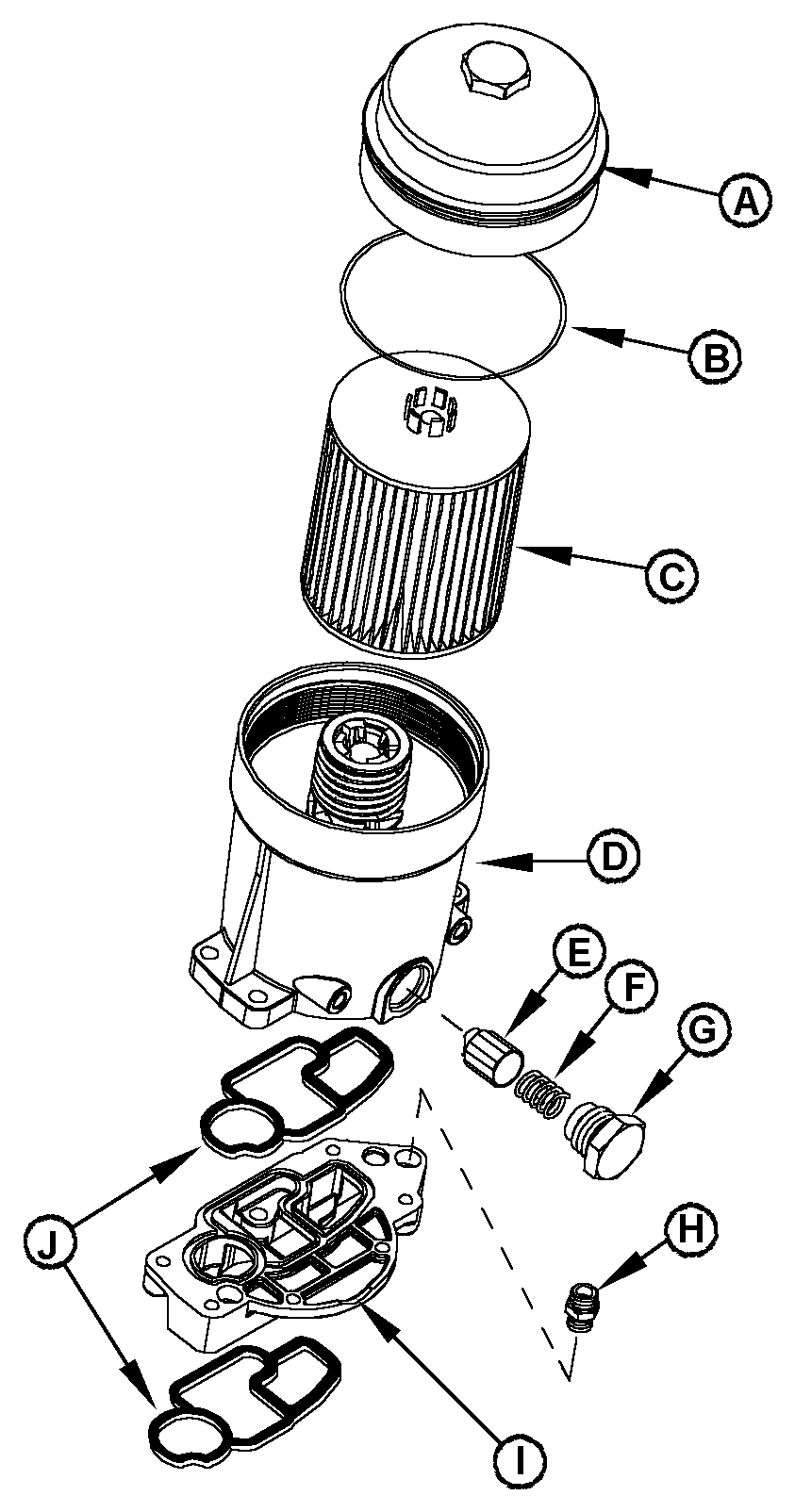

Top-Load Oil Filter Assembly, John Deere POWERTECH® 8.1 L Engine

A-Screw Cap
B-O-ring
C-Filter Element
D-Oil Filter Housing
E-Pressure Regulating Valve
F-Spring
G-Plug
H-Flex Fitting
I-Adapter Plate Assembly
J-Seal

POWERTECH is a trademark of Deere & Company.

OUZXMAY,00003AE -19-04MAR02-1/1
