Retorque Wheel Nuts

Retorque wheel nuts as specified in Sections "Wheels and Ballast" and "Lubrication, Periodic Services". Failure to do this could result in a wheel falling off during operation, causing the machine to tip over with serious injury to the operator and extensive damage to the machine.

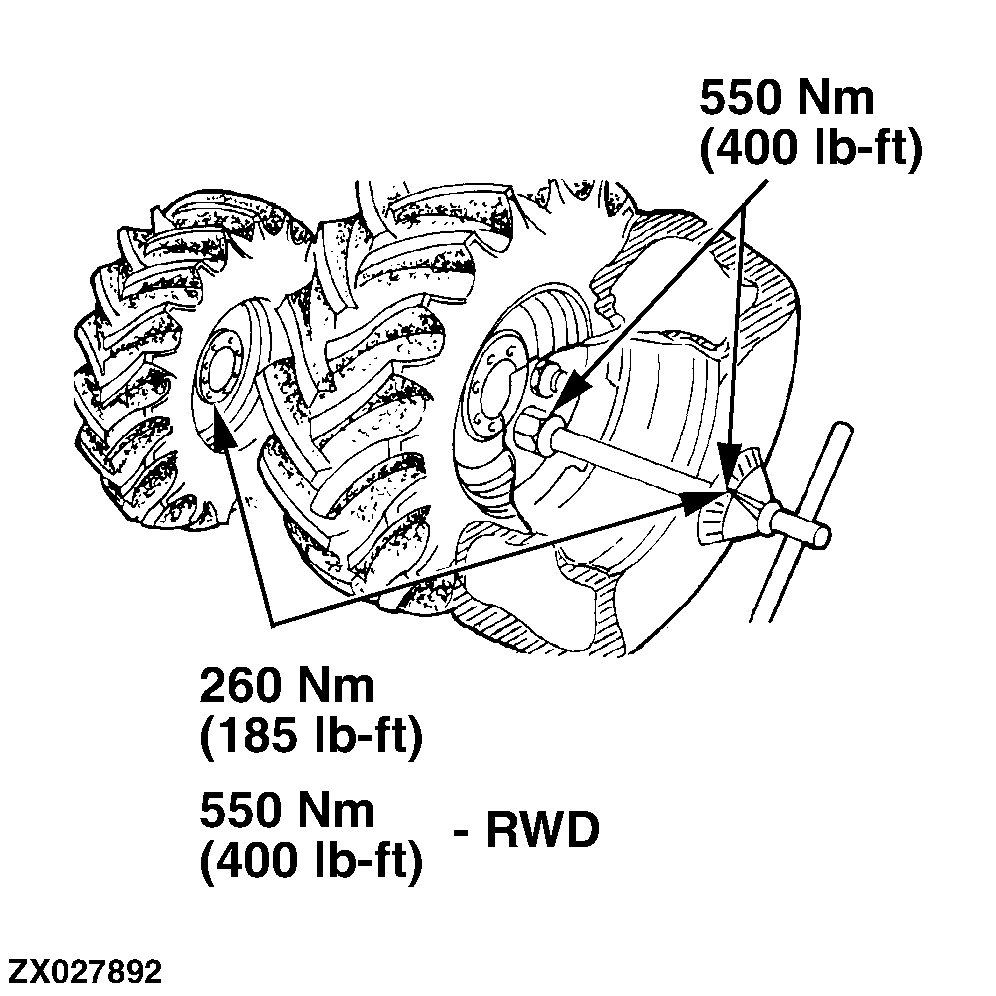

Front Axle Wheel Nuts:

  • 550 Nm (400 lb-ft)

Rear Axle Wheel Nuts:

  • 260 Nm (185 lb-ft) - Standard axle
  • 550 Nm (400 lb-ft) - RWD axle
ZX027892
