Automatic Header Control Display

Return to Position Display

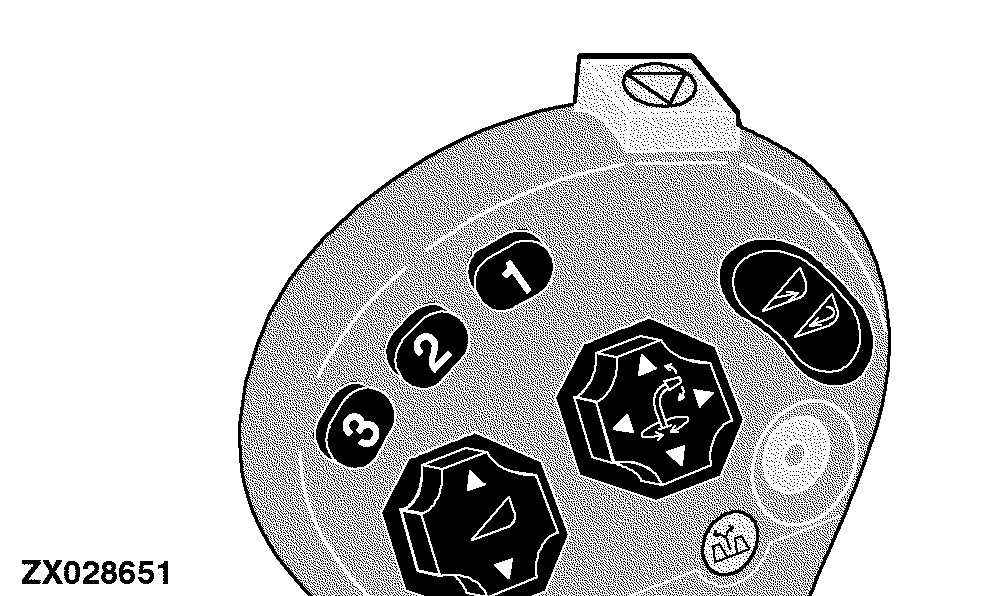

The automatic header control mode is activated by pressing one of two switches (2) or (3) located on the multi function lever.

OUZXMAY,00003BA -19-25APR02-1/8

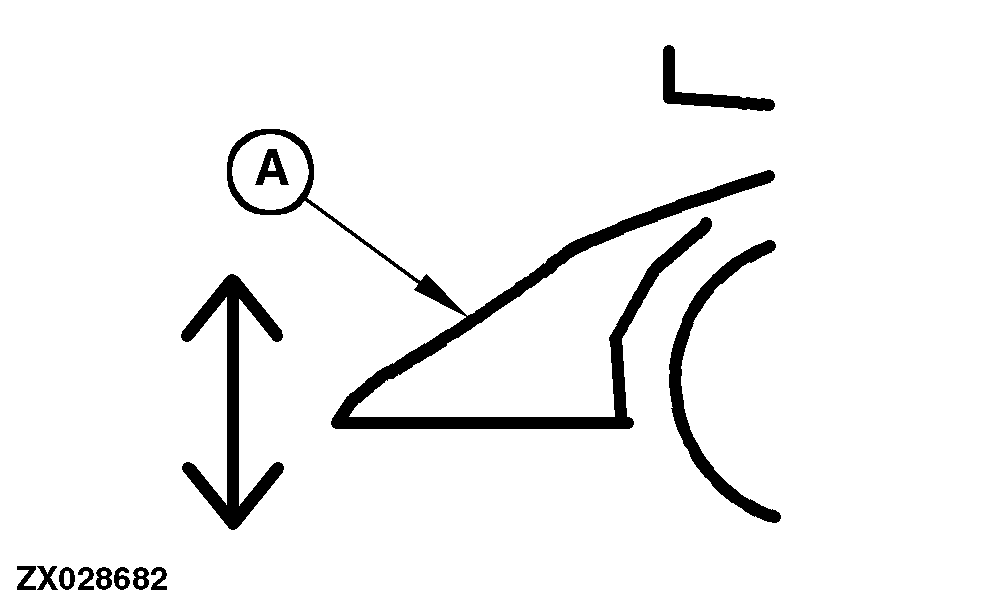

If the return to position mode is active (based on a CAN bus message), the return to position icon (A) will be displayed.

This icon gives an indication that the return to position mode is currently active.

OUZXMAY,00003BA -19-25APR02-2/8

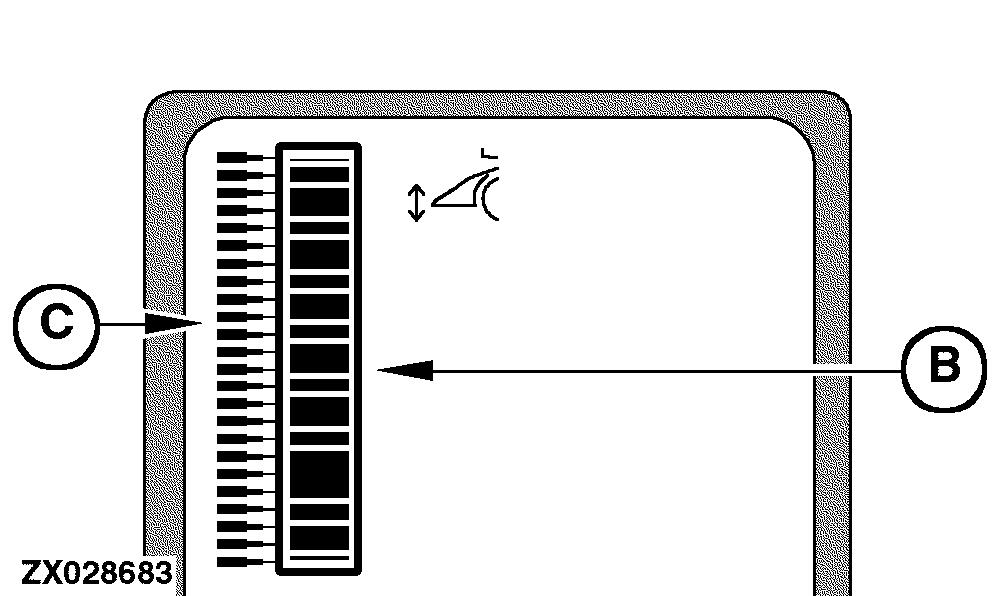

The inner bar graph (B) graphically represents the current header position with respect to the machine.

The outer bar graph pointer (C) graphically represents the desired value of the header position with respect to the machine. This information is provided via the CAN bus from the SPFH main control unit.

If the header is in the lowest position setting, the lowest bar graph element is displayed.
If the header is at its highest position setting, all 24 bar graph elements are displayed.
If the header position is between these extremes, the corresponding inner bar graph elements are displayed.

For the desired header position, only the single outer bar graph pointer representing the desired position is displayed.

To ensure that the inner bar graph (B) represents the maximum motion of the header that is currently in use, a calibration is required. This calibration determines what the potentiometer readings are that correspond with the lowest header and highest header position. Without doing this calibration, the bar graph display may not show the complete range of motion of the header.

To calibrate the upper and lower header limit use the following address:

Upper and lower header limit - Address SPF 101

NOTE: For detailed calibration information see Section "Calibration Procedures" at the appropriate addresses.

The digital display displays header height information along with the appropriate units (cm or inch).

OUZXMAY,00003BA -19-25APR02-3/8

Return to Position - Operation

While the return to position mode is active, change to the desired position setting can be made by turning the input control knob (D) located on the armrest. Only one bar graph pointer element is displayed at a time.

OUZXMAY,00003BA -19-25APR02-4/8

Return to Pressure Display

The automatic header control mode is activated by pressing switch (3) located on the multi function lever.

OUZXMAY,00003BA -19-25APR02-5/8

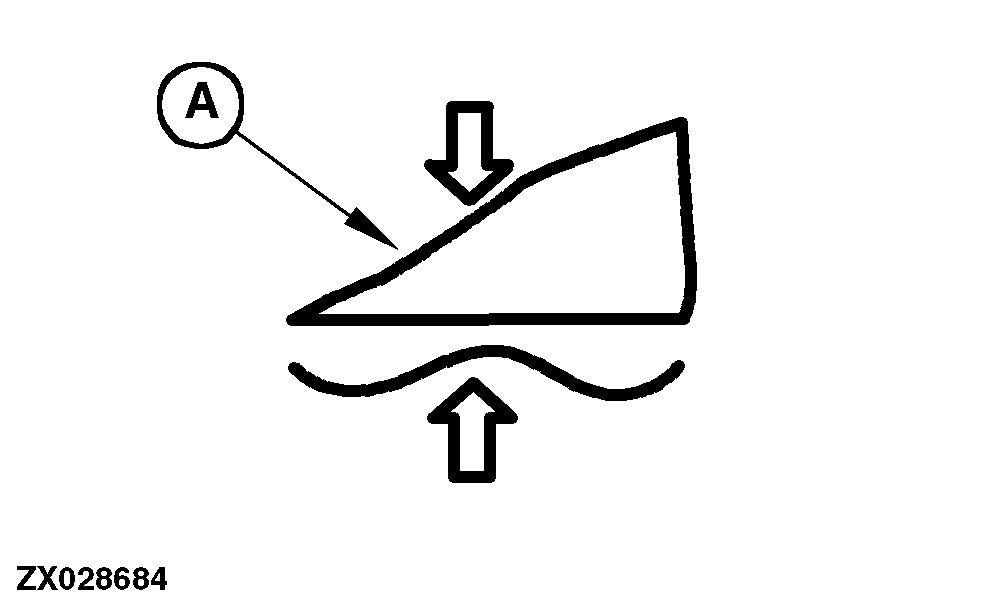

If the return to pressure mode is active (based on a CAN bus message), the return to pressure icon (A) will be displayed.

This icon gives an indication that the return to pressure mode is currently active.

OUZXMAY,00003BA -19-25APR02-6/8

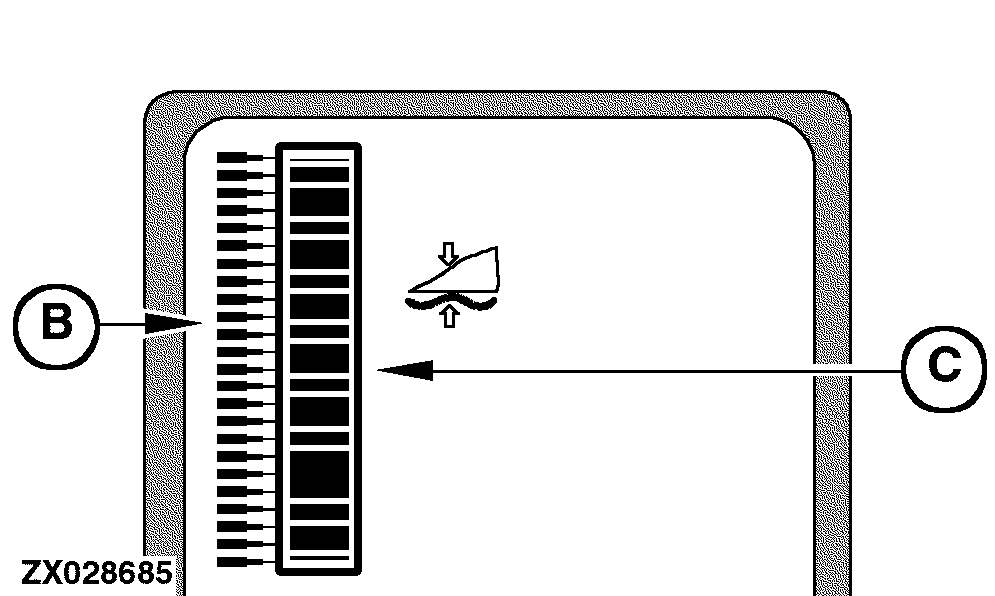

Additionally, the previously stored desired pressure value is used to determine which pointer element on the outer bar graph (B) is displayed.

When the return to pressure is first activated or reactivated, the digital display line displays the desired pressure value, in the appropriate units (bars or PSI), for a maximum of 3 seconds or until another switch on the display is pressed. While adjusting the desired pressure setting (see Operation below), the digital display line continues to update the pressure value.

The inner bar graph (C) is used to graphically represent the current pressure. The pressure information is provided via the CAN bus from the SPFH main control unit.

To ensure that the inner bar graph represents the maximum pressure range of the header that is currently in use, a calibration is required. This calibration determines what the pressure readings are that correspond with the operating range of the header. Without doing this calibration, the bar graph display may not show the complete range of pressure of the header.

To calibrate the header type use the following address:

Header type - Address SPF 100

NOTE: For detailed calibration information see Section "Calibration Procedures" at the appropriate addresses.

The digital display displays header pressure information along with the appropriate units (bars or PSI).

OUZXMAY,00003BA -19-25APR02-7/8

Return to Pressure - Operation

While the return to pressure mode is active, change to the desired pressure setting can be made by turning the input control knob (D) located on the armrest. Only one bar graph pointer element is displayed at a time.
