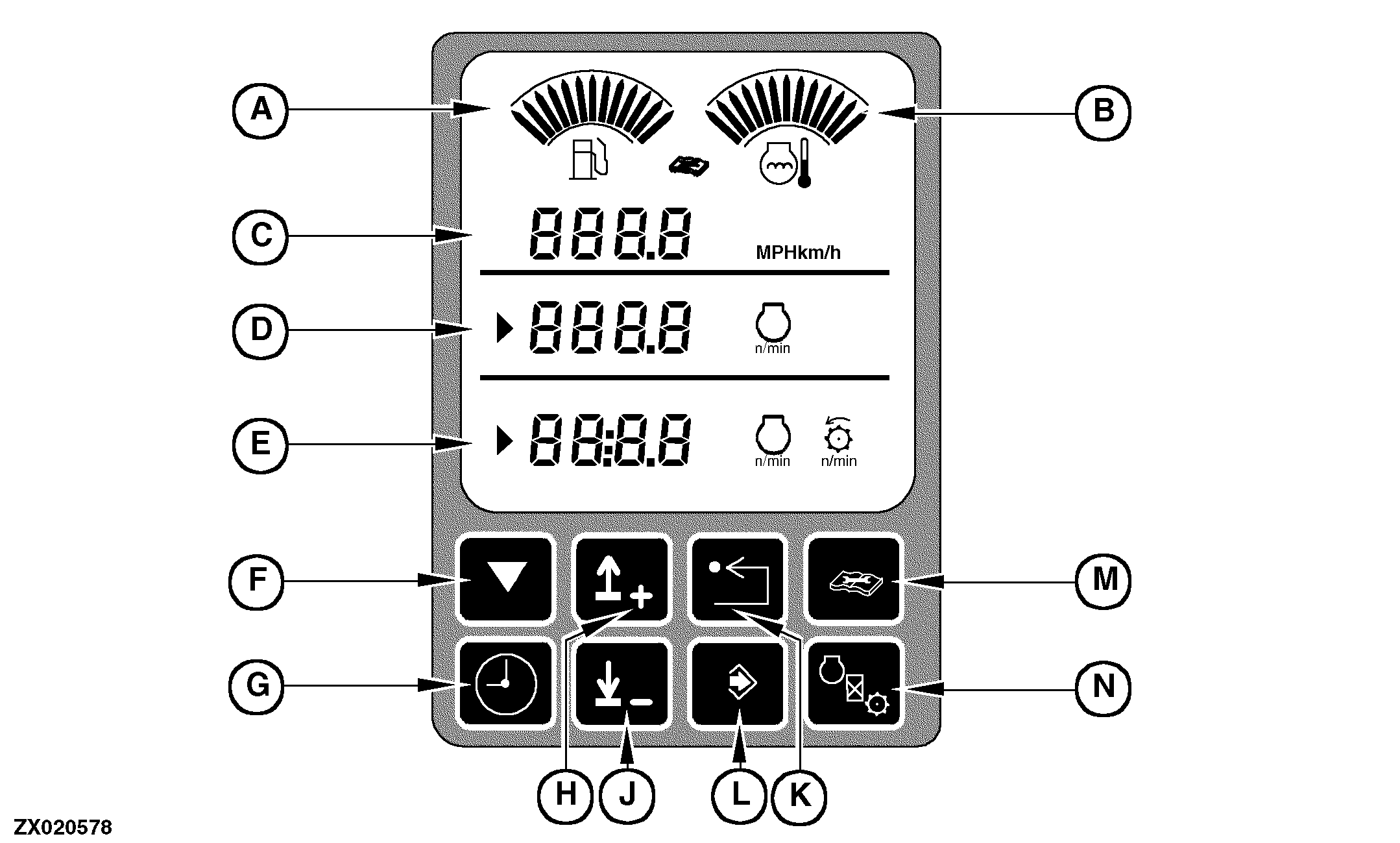

A-Fuel Gauge
B-Engine Coolant Temperature Gauge
C-Top Line - Ground Speed
D-Middle Line - Engine Speed

E-Bottom Line - Cutterhead Speed
F-Calibration Switch
G-Clock Key

H-Up Arrow Switch
J-Down Arrow Switch
K-Back Arrow Switch
L-Enter Switch

M-Diagnostic Switch
N-Key For Engine Operating Hours And Cutterhead Operating Hours

At power-up, all display segments are turned on for a period of two seconds. After the two-second period, select which of the following data shall be displayed, and where:

• Engine speed
• Cutterhead speed
• Time (clock)

OUZXMAY,00003BB -19-04MAY02-1/1
