Coolant Temperature Gauge

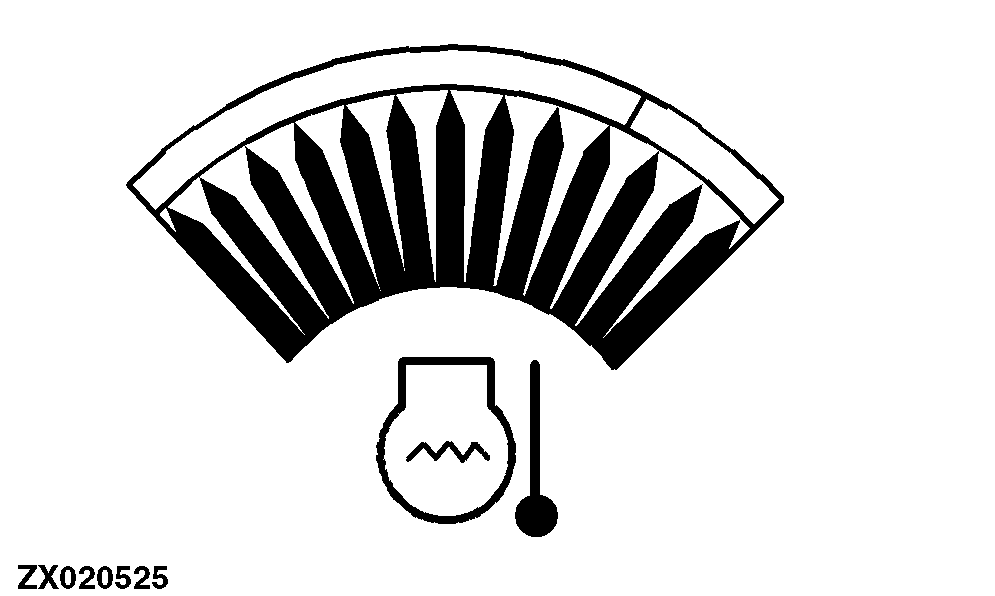

Coolant temperature is indicated by a 13-element analog simulation at the top right corner of the monitor screen.

The table below shows how the 13 elements relate to the temperature measurements:

  • Element 1 - 40° C (104° F)
  • Element 2 - 47° C (117° F)
  • Element 3 - 53° C (127° F)
  • Element 4 - 60° C (140° F)
  • Element 5 - 65° C (149° F)
  • Element 6 - 72° C (162° F)
  • Element 7 - 77° C (171° F)
  • Element 8 - 84° C (183° F)
  • Element 9 - 93° C (199° F)
  • Element 10 - 100° C (212° F)
  • Element 11 - 108° C (226° F)
  • Element 12 - 114° C (237° F)
  • Element 13 - 120° C (248° F)
ZX020525

OUZXMAY,00003BC -19-04MAY02-1/2

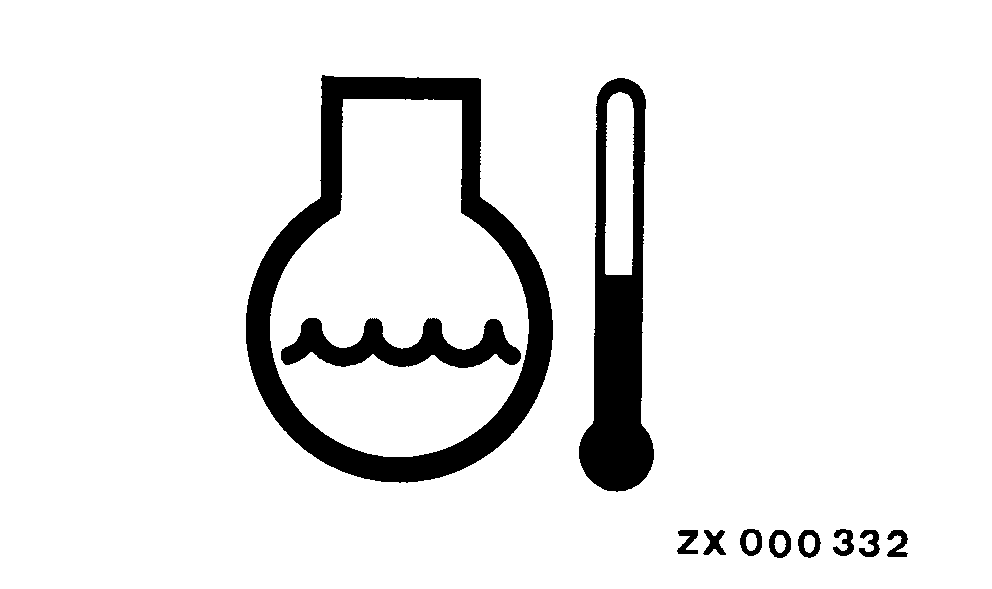

IMPORTANT: If the coolant temperature indicator light on warning display panel comes on and the buzzer sounds, stop engine and check problem immediately.

ZX000332

OUZXMAY,00003BC -19-04MAY02-2/2
