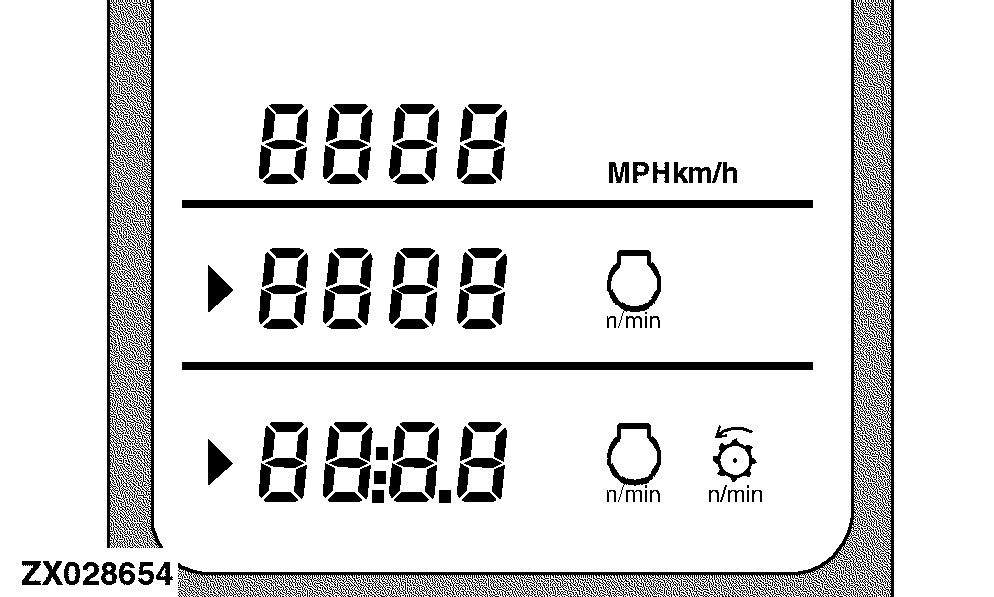

Three-Line Display Panel

Digital data are presented in 3 lines with 7 segment symbols. The following data are displayed:

  • Operational information
  • Progamming data
  • Diagnostic Trouble Codes (DTC)

The relevant symbols and units of measurement are also displayed to make the data understandable.

ZX028654

OUZXMAY,00003BE -19-05MAY02-1/1
