Diagnostic Icon

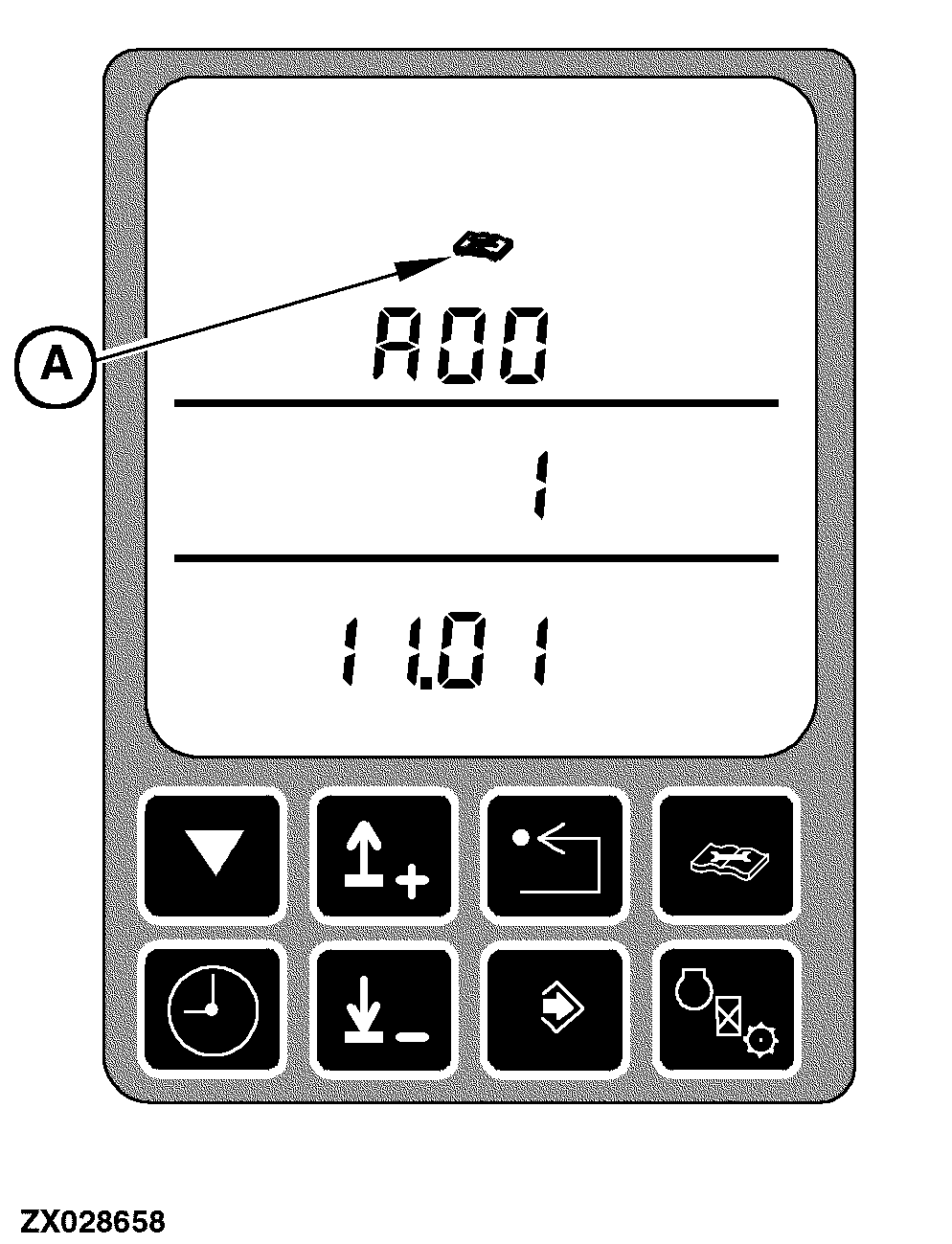

Diagnostic icon, steady

Diagnostic Icon (A) is on steady and a diagnostic trouble code is displayed on the three lines. This means a corrective action is immediately required. Do not operate forage harvester until the problem is corrected.

OUZXMAY,00003C0 -19-05MAY02-1/2

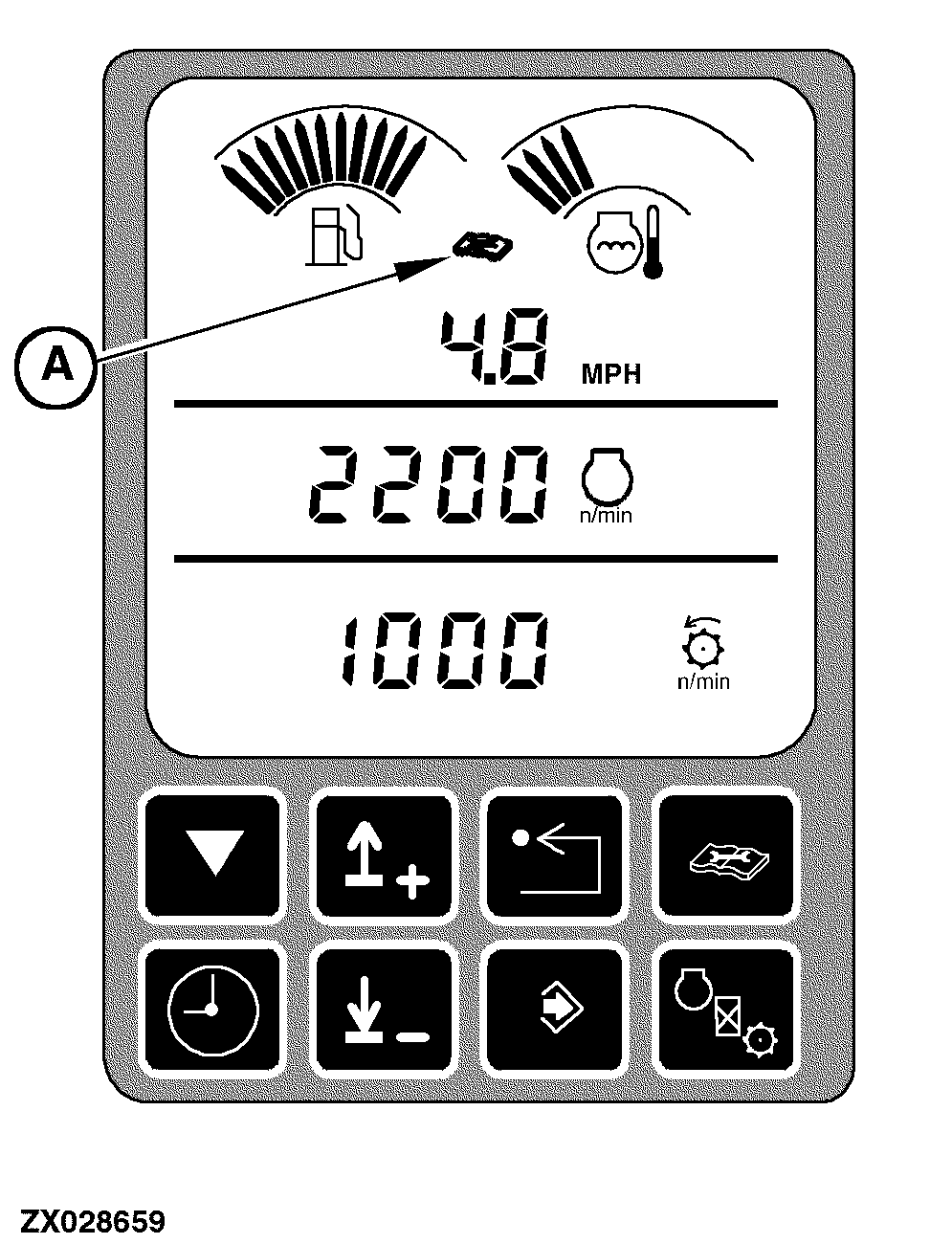

Diagnostic icon, flashing

The diagnostic icon (A) is flashing continuously. This means a diagnostic code has been generated. Stop the forage harvester when convenient and determine the cause.

OUZXMAY,00003C0 -19-05MAY02-2/2
