Infinitely Variable Length of Cut Transmission (IVLOC) Display

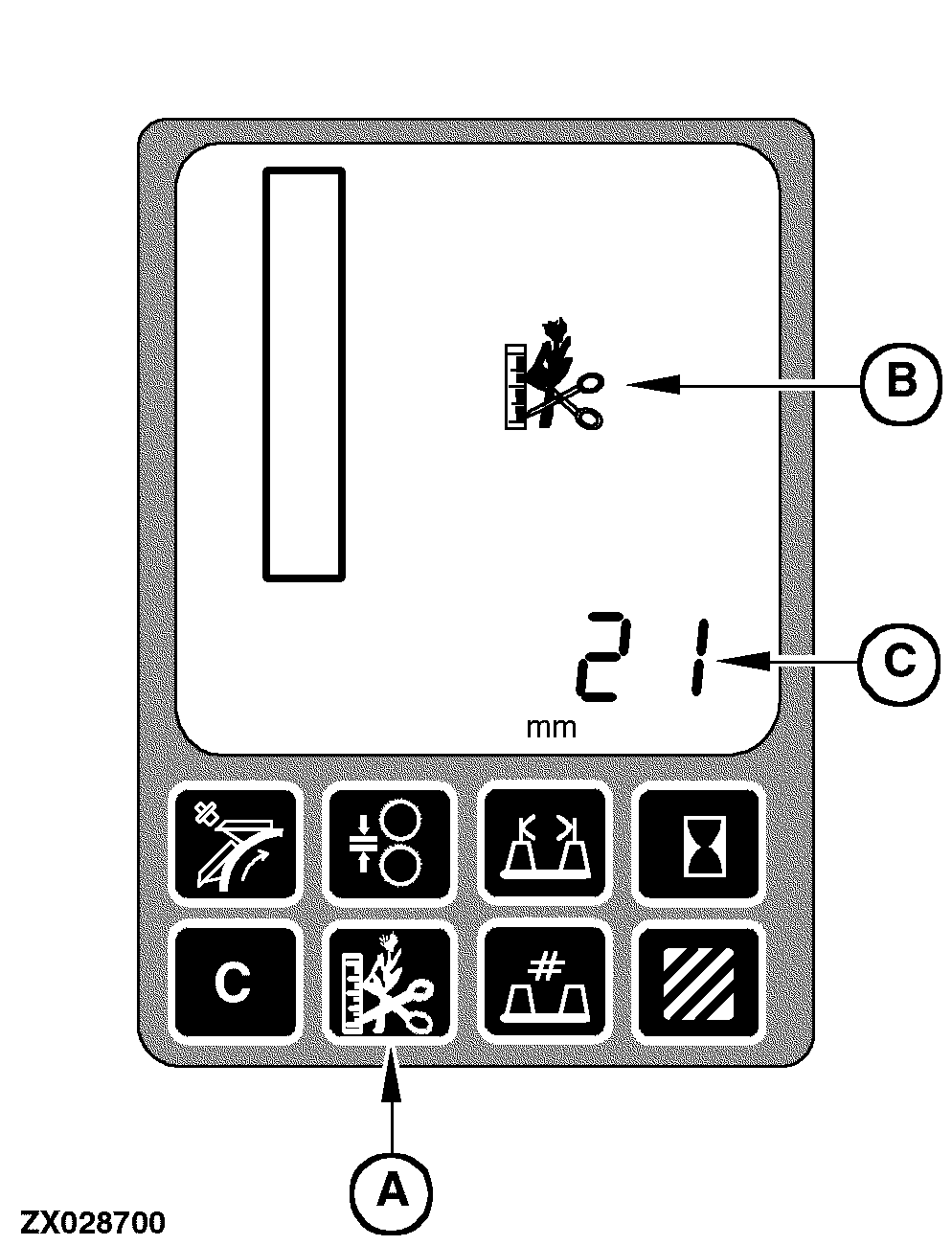

To activate the IVLOC display mode, press the IVLOC switch (A) located on the performance monitor. If this switch is pressed the IVLOC icon (B) will be displayed and the current IVLOC information will be displayed on the digital display line (C) along with the appropriate units (mm or in.) for a maximum of 10 seconds. To change this setting use the input control knob (D) located on the armrest. While the input control knob is rotated the LOC value setting will change on the display. This will be the new LOC setting. The resolution of the LOC digital display will be mm or 100th of inch.
A-IVLOC Switch
B-IVLOC Icon
C-Digital Display Line
D-Input Control Knob
|
