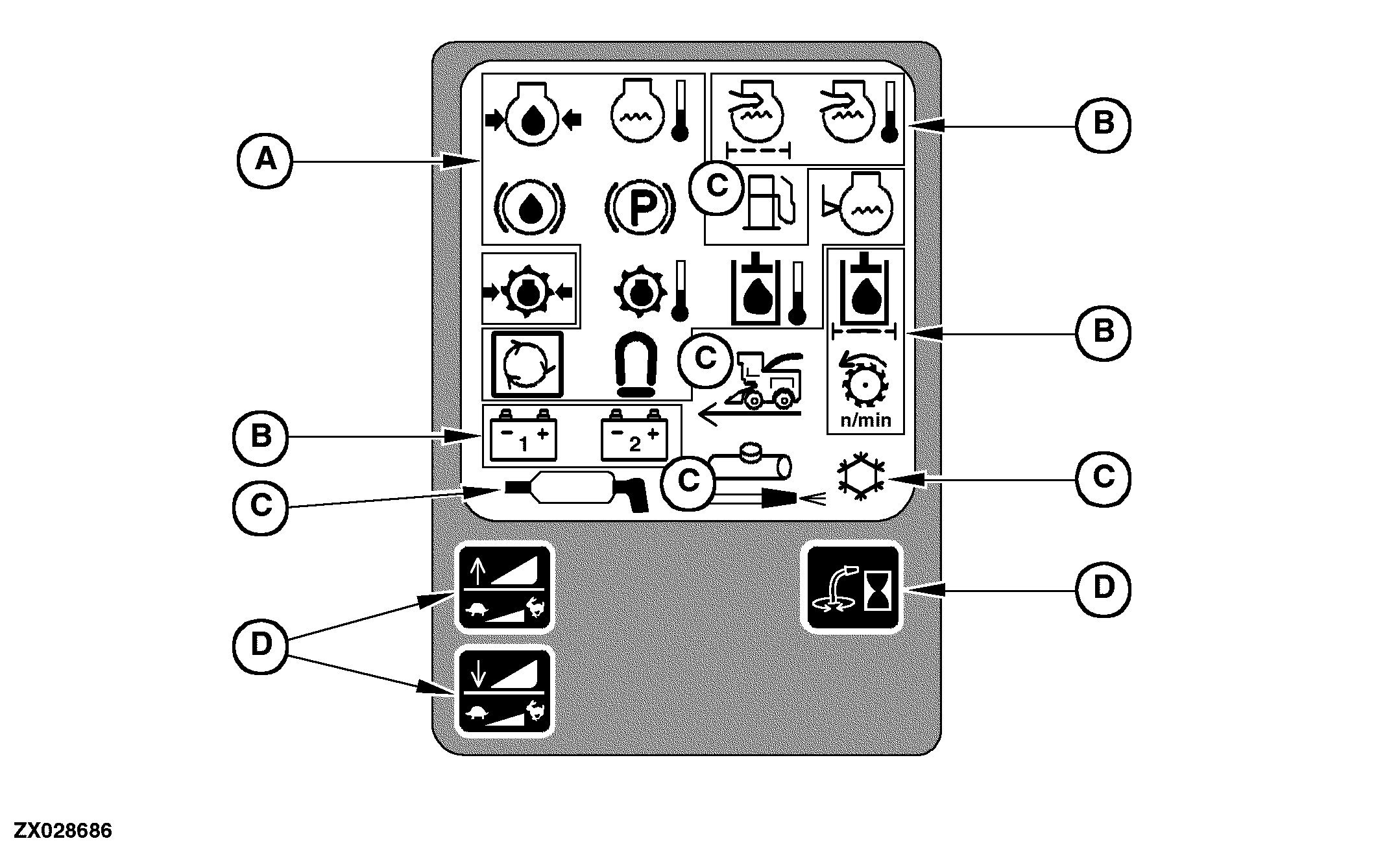

A-Priority 1 Indicator Icons, STOP (bold edged box)

B-Priority 2 Indicator Icons, Warning (fine edged box)

C-Priority 3 Indicator Icons, Protection (no box)

D-Quick Calibration Switches

OUZXMAY,00003D3 -19-14MAY02-1/4

NOTE: For detailed description of qiuck calibration switches see Section "Calibration Procedures"

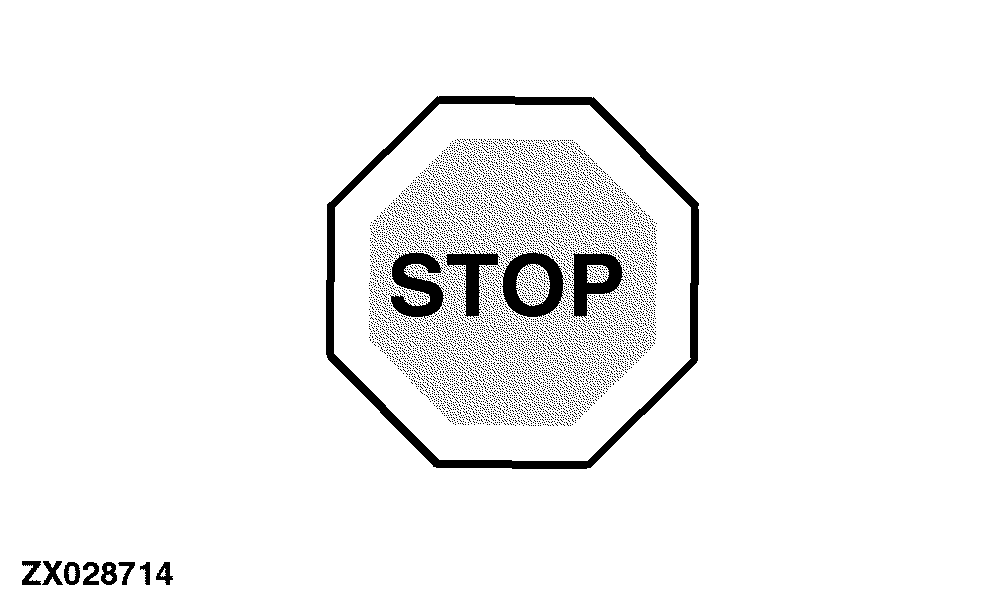

Priority 1 Indicator Icons - Stop

These indicator icons are associated with the most important machine functions (road and operating safety, engine).

When one of the priority 1 indicator icons comes on, the red STOP light appears simultaneously at the automatic function control panel and a continuous acoustic warning starts to sound.

OUZXMAY,00003D3 -19-14MAY02-2/4

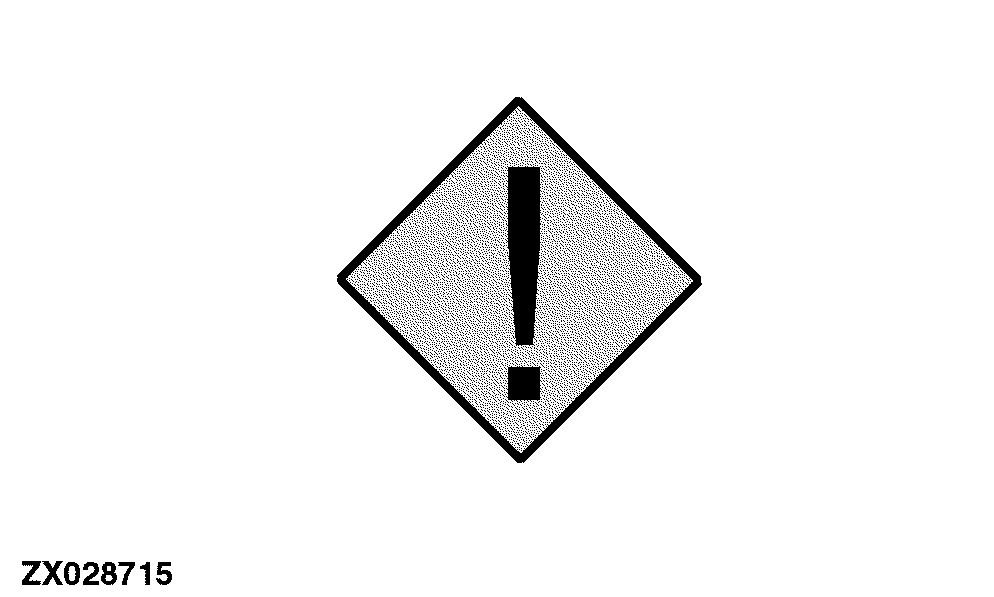

Priority 2 Indicator Icons - Warning

These indicator icons are associated with functions that can impair vehicle performance but are not severe enough to immediately impact safety or the engine operations.

When a priority 2 indicator icons comes on, the warning light at the automatic function control panel appears simultaneously and an acoustic warning sounds for 5 seconds.

OUZXMAY,00003D3 -19-14MAY02-3/4

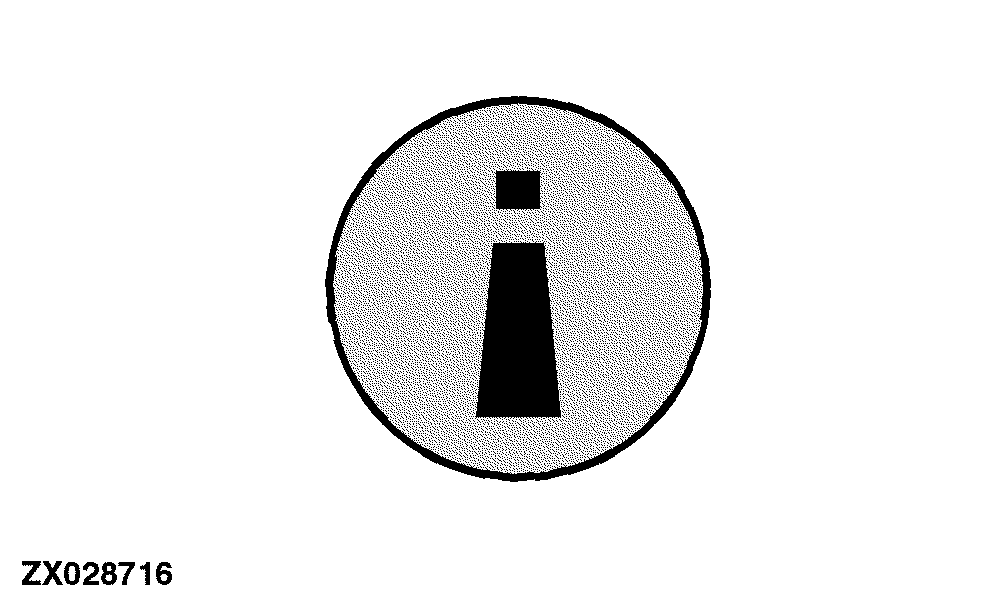

Priority 3 Indicator Icons - Protection

These indicator icons are associated with functions that alert the operator that a function is active / engaged or has malfunctioned. When a priority 3 indicator icons comes on, the protection light at the automatic function control panel appears simultaneously.

OUZXMAY,00003D3 -19-14MAY02-4/4
