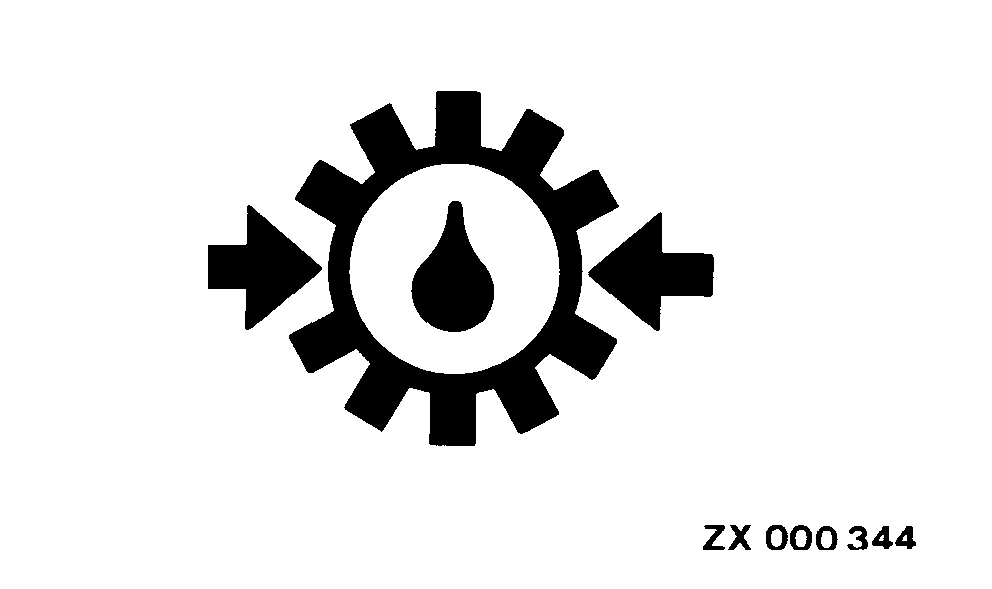

Hydrostatic Charge Pressure Indicator Icon

Lights up if charge pressure drops below 1000 kPa (10 bar; 145 psi).

  • Check reservoir oil level. Change oil filter, if necessary.

If this indicator light still stays on, see your John Deere dealer.

ZX000344

OUZXMAY,00003DF -19-14MAY02-1/1
