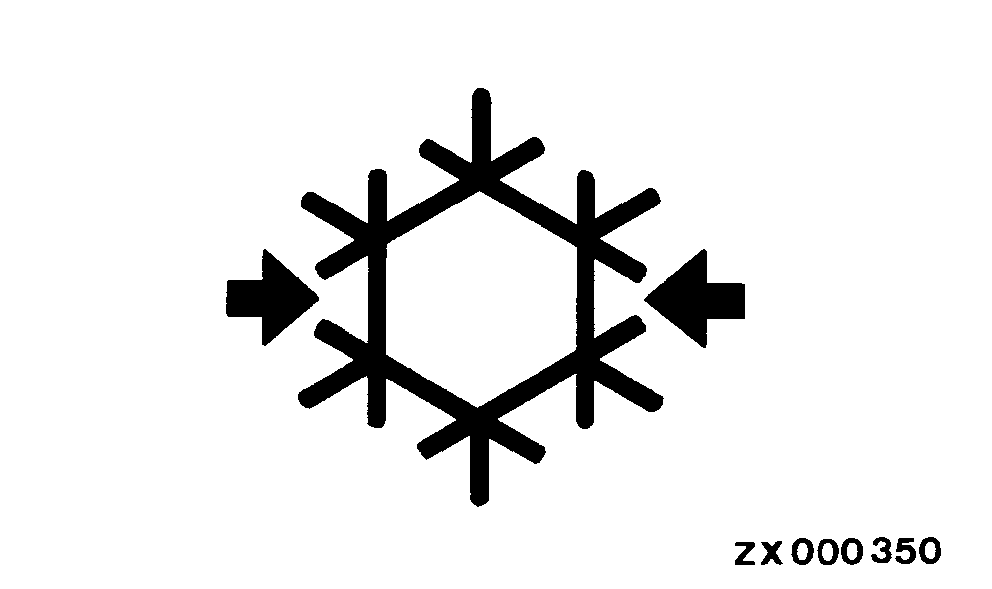

Air Conditioner Indicator Icon

Lights up if system pressure exceeds 2400 kPa (24 bar; 350 psi).

• Switch off air conditioning system and remedy the fault.

If this indicator light still stays on, see your John Deere dealer.

OUZXMAY,00003E8 -19-14MAY02-1/1
