OMZ93299: 7200, 7300, 7400 and 7500 Self-Propelled Forage Harvesters, Block File: OUZXMAY_00003EC_19

Address RCP 117 Calibration - ATC Temperature Potentiometer

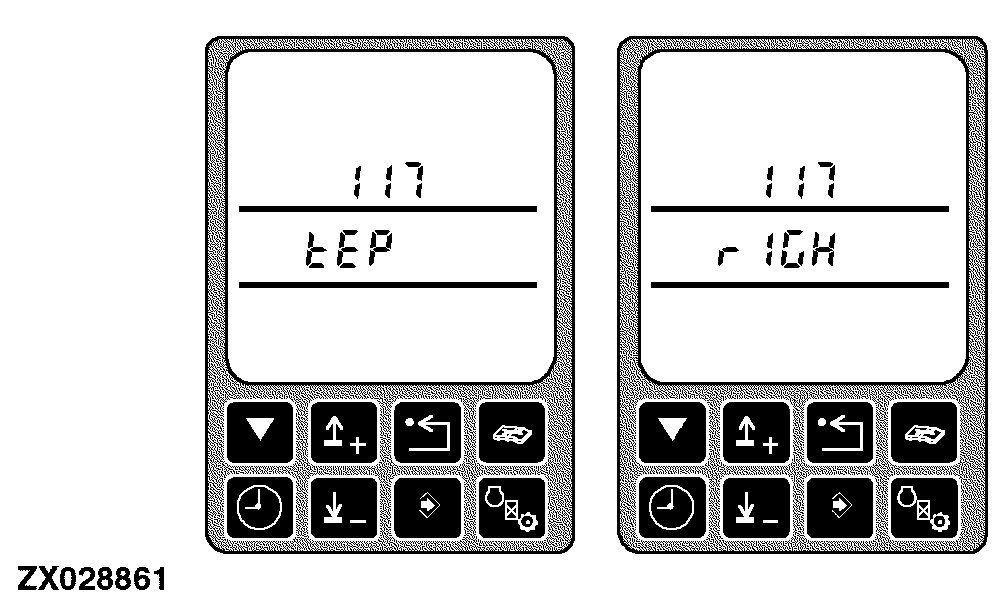

After pushing the enter switch, at this address the corner post control unit displays alternately "tEP" (indicating temp) and "LEFt".

OUZXMAY,00003EC -19-22MAY02-1/5

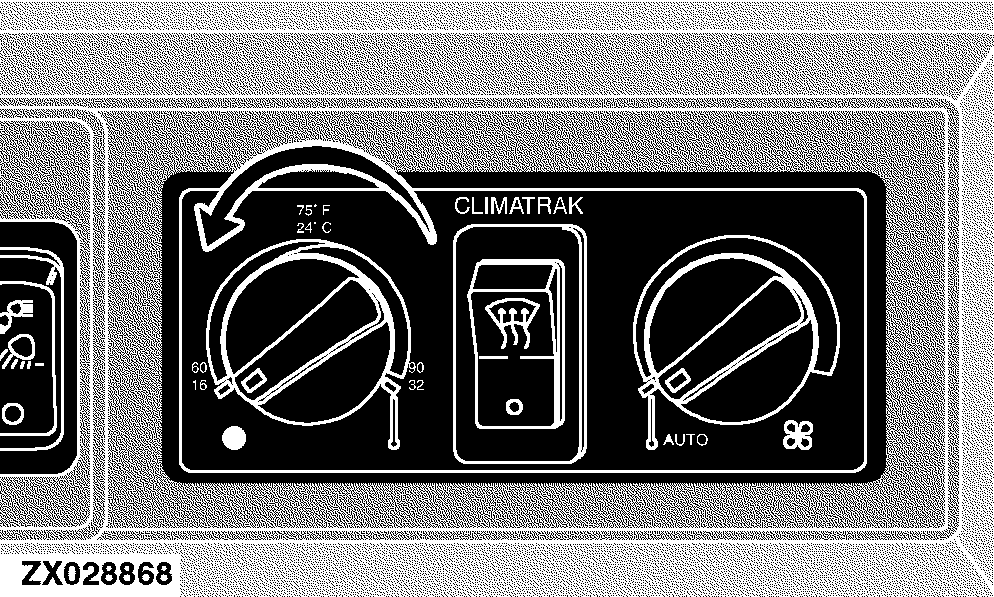

Move temperature control knob to minimum position (= max cool position).

Pushing the calibrate switch: The corner post control unit records the current ATC temperature potentiometer reading as the minimum potentiometer value.

OUZXMAY,00003EC -19-22MAY02-2/5

The corner post control unit then displays alternately "tEP" and "rIGH" (indicating right).

OUZXMAY,00003EC -19-22MAY02-3/5

Move temperature control knob to maximum position.

Pushing the enter switch: The corner post control unit records and stores the current ATC temperature potentiometer reading as the maximum potentiometer value.

OUZXMAY,00003EC -19-22MAY02-4/5

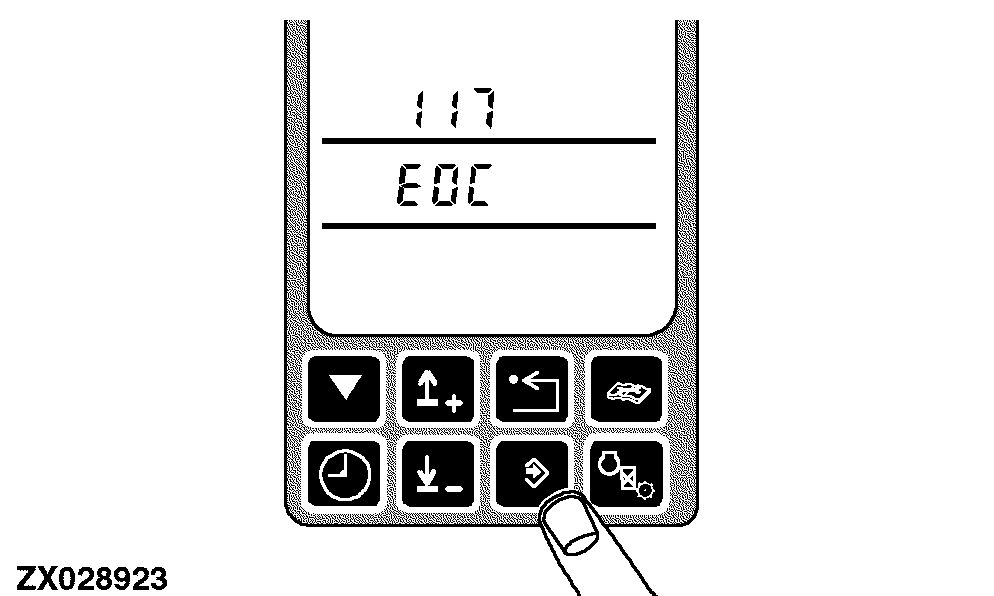

EOC will display the end of calibration mode.

OUZXMAY,00003EC -19-22MAY02-5/5
