Address RCP 118 Calibration - ATC Fan Potentiometer

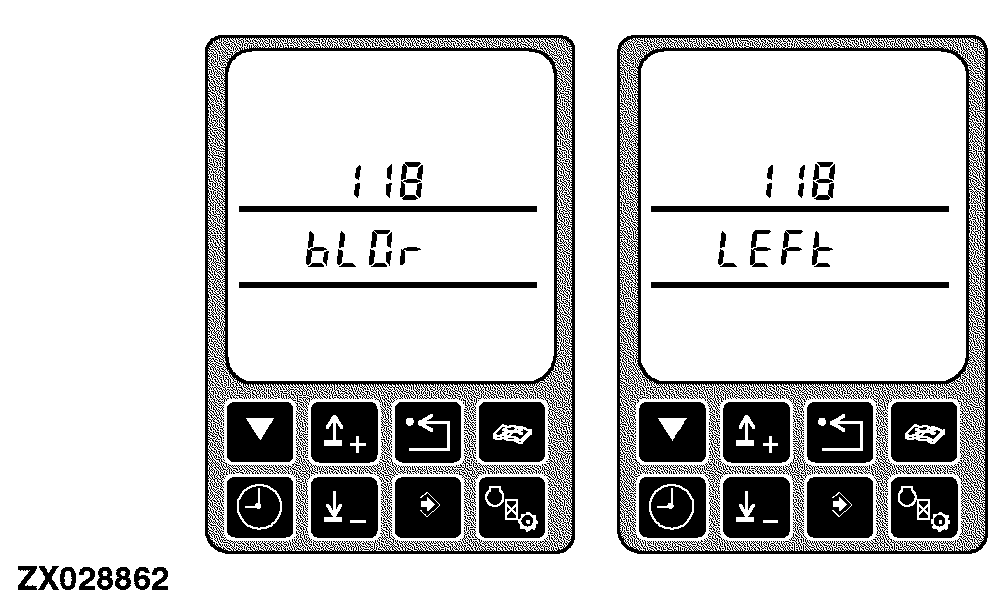

After pushing the enter switch, at this address, the corner post control unit displays alternately "bLOr" (indicating blower) and "LEFt".

ZX028862

OUZXMAY,00003ED -19-22MAY02-1/5

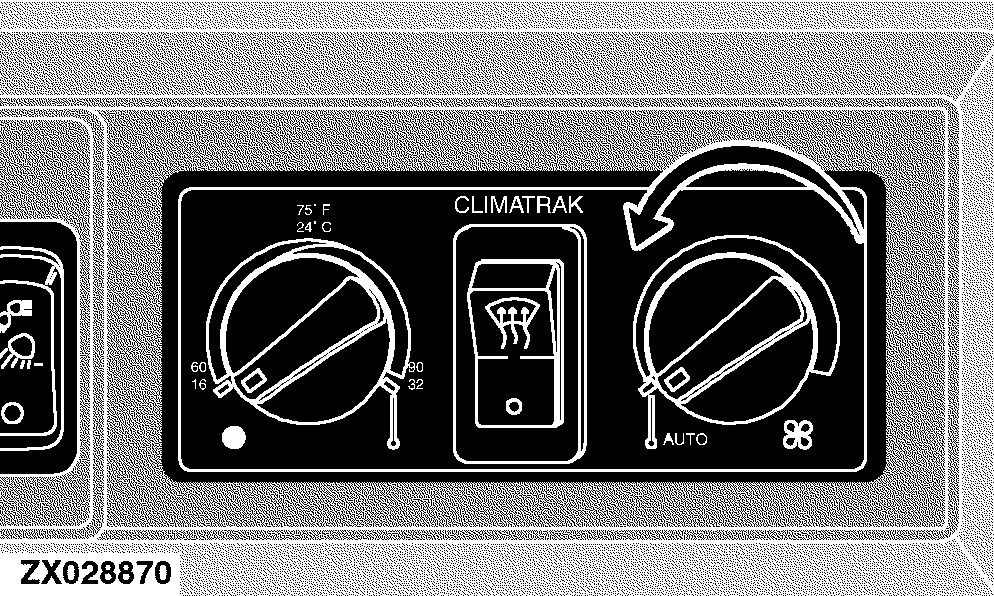

Move fan control knob to minimum (but not AUTO) position.

Pushing the calibrate switch: The corner post control unit records the current ATC fan potentiometer reading as the minimum potentiometer value.

ZX028870

OUZXMAY,00003ED -19-22MAY02-2/5

The corner post control unit then displays alternately "bLOr" and "rIGH" (indicating right).

ZX028863

OUZXMAY,00003ED -19-22MAY02-3/5

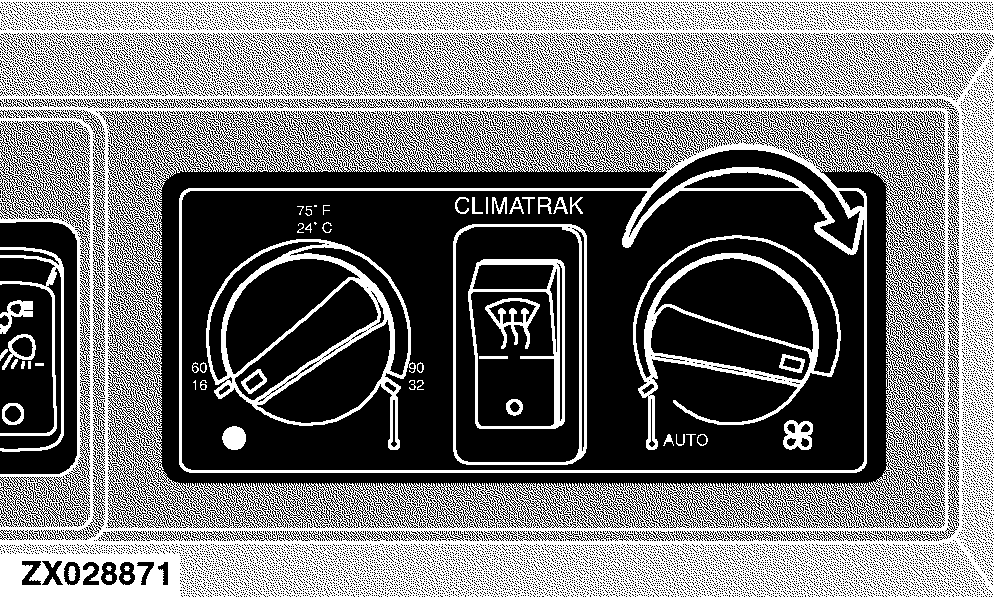

Move fan control knob to maximum position.

Pushing the enter switch: The corner post control unit records and stores the current ATC fan potentiometer reading as the maximum potentiometer value.

ZX028871

OUZXMAY,00003ED -19-22MAY02-4/5

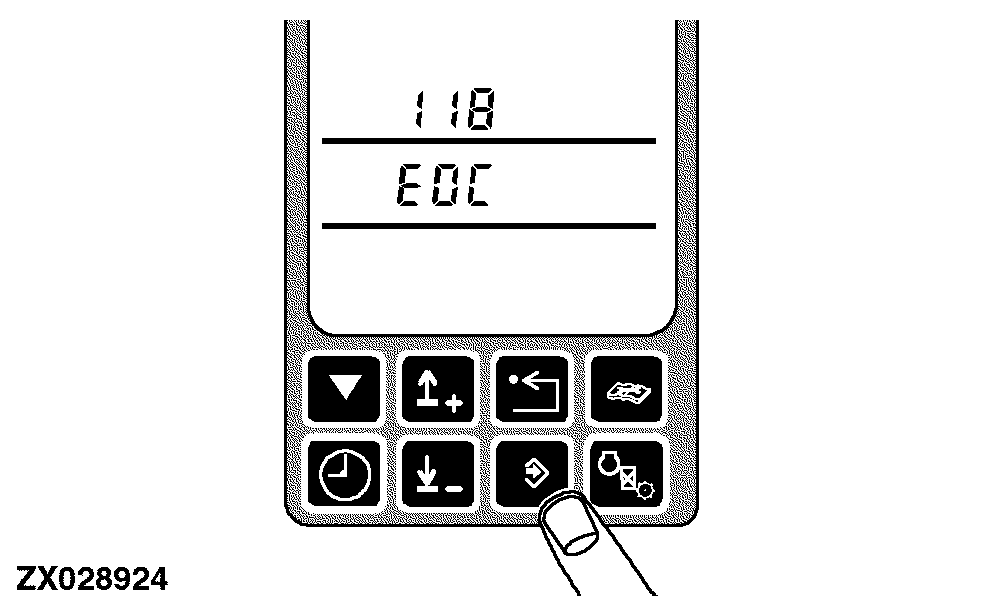

EOC will display the end of calibration mode.

ZX028924

OUZXMAY,00003ED -19-22MAY02-5/5
