Address RCP 119 Calibration - Dimmer For Cab Interior Light Potentiometer

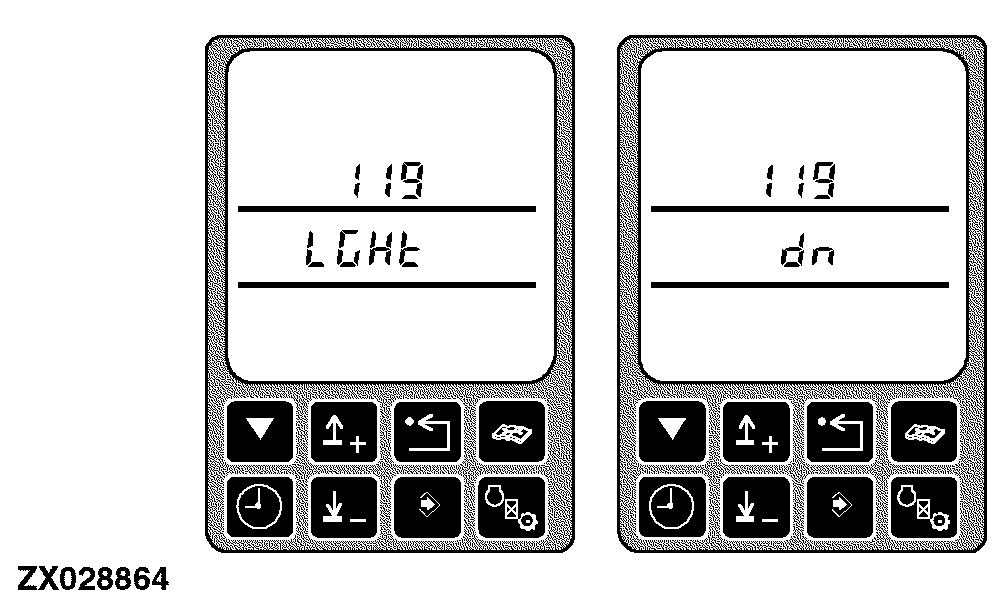

After pressing the enter switch, at this address, the corner post control unit displays alternately "LGHt" (indicating light) and "dn" (indicating down).

ZX028864

OUZXMAY,00003EE -19-22MAY02-1/5

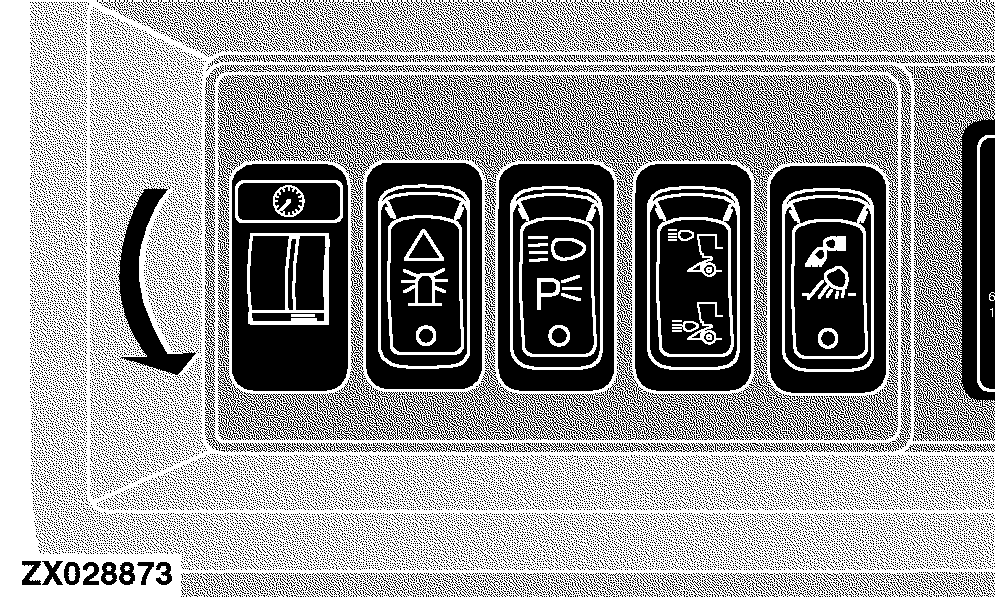

Move dimmer for cab interior light to minimum position.

Pushing the calibrate switch: The corner post control unit records the current cab backlighting dimmer potentiometer reading as the minimum potentiometer value.

ZX028873

OUZXMAY,00003EE -19-22MAY02-2/5

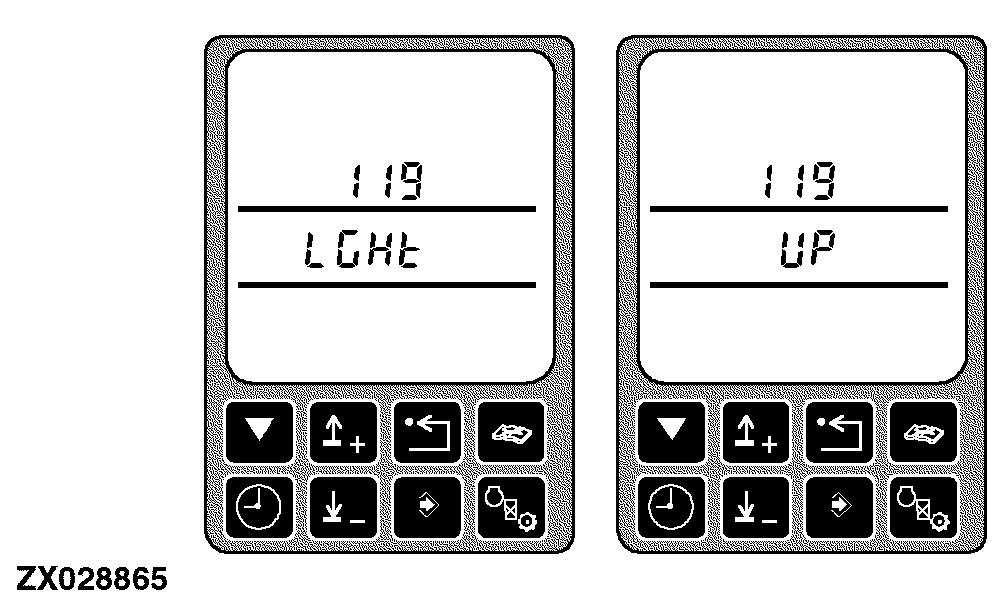

The corner post control unit then displays alternately "LGHt" and "UP".

ZX028865

OUZXMAY,00003EE -19-22MAY02-3/5

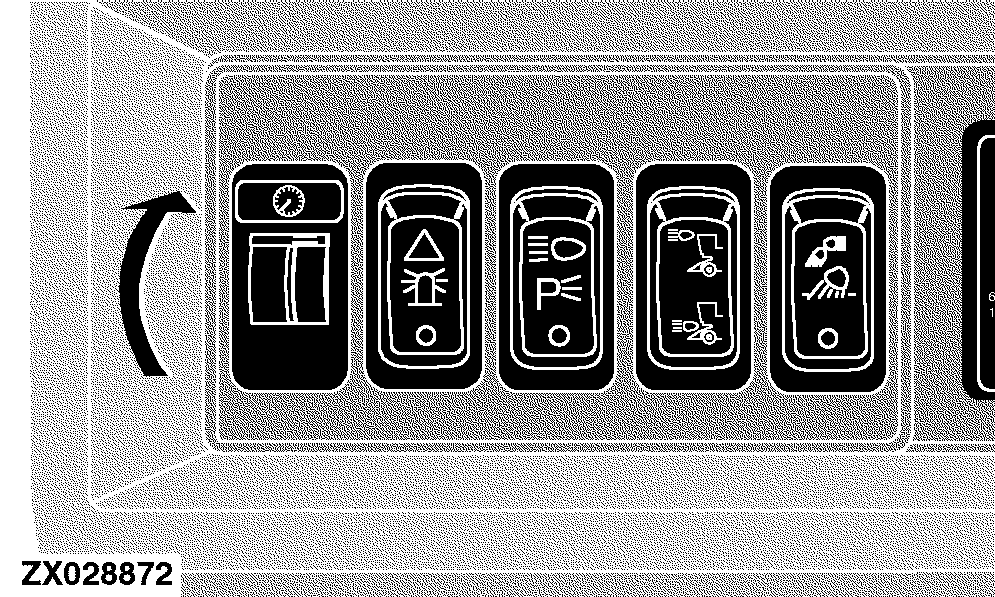

Move dimmer knob to maximum position.

Pushing the enter switch: The corner post control unit records and stores the current cab backlighting dimmer potentiometer reading as the maximum potentiometer value.

ZX028872

OUZXMAY,00003EE -19-22MAY02-4/5

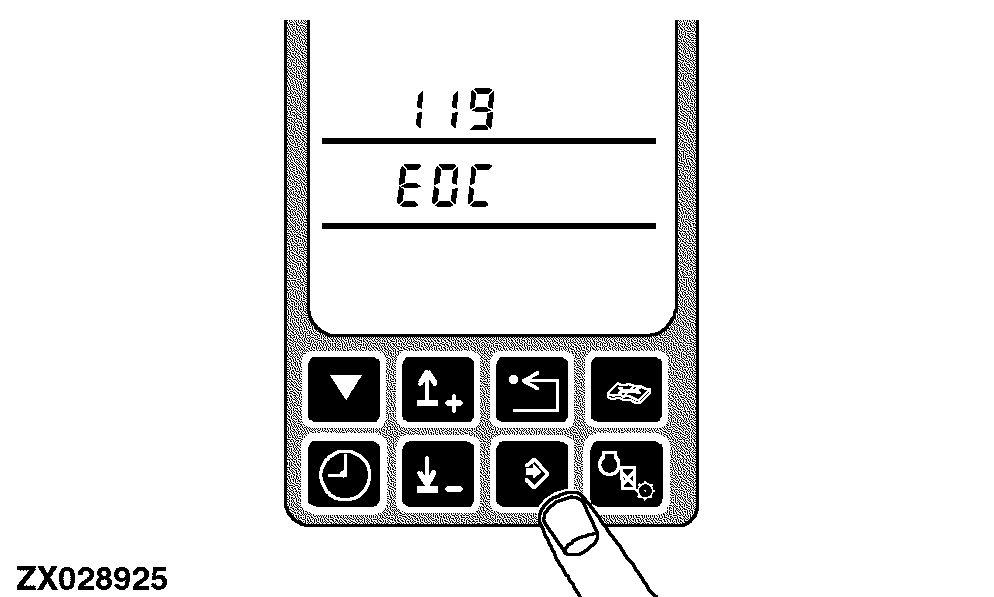

EOC will display the end of calibration mode.
