Address ARC 119 Calibration - Row Guidance Potentiometer

  • Entering this address, the armrest control unit displays alternately "rGPt" (indicating row guidance potentiometer) and "LEFt" (indicating left).
    ZX028734

OUZXMAY,00003F0 -19-22MAY02-1/3

  • Pushing the calibrate key: The armrest control unit records the current row guidance potentiometer reading as the minimum potentiometer value.

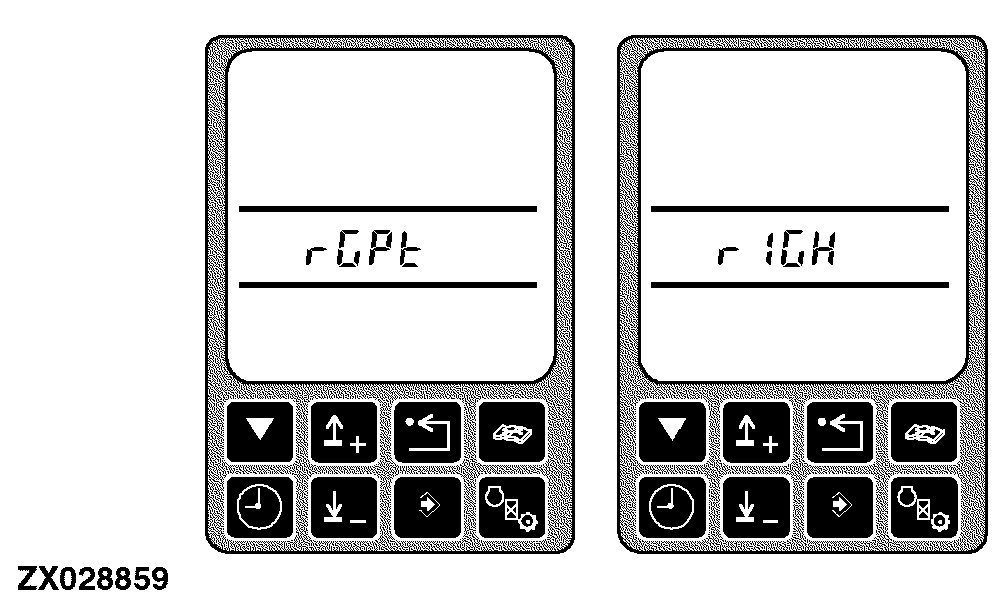

  • The armrest control unit then displays alternately "rGPt" and "rIGH" (indicating right).
  • Pushing the enter key: The armrest control unit records the current row guidance potentiometer reading as the maximum potentiometer value.
    ZX028859

OUZXMAY,00003F0 -19-22MAY02-2/3

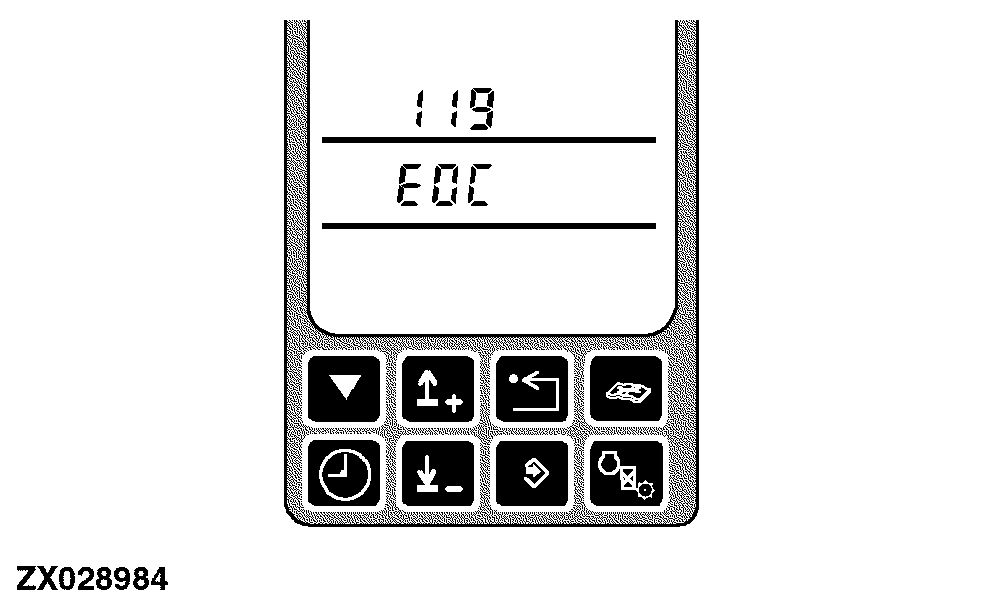

      EOC will display the end of calibration mode.

    ZX028984

OUZXMAY,00003F0 -19-22MAY02-3/3
