Address RCP 101 Calibration - Rear Wheel Drive Control Unit

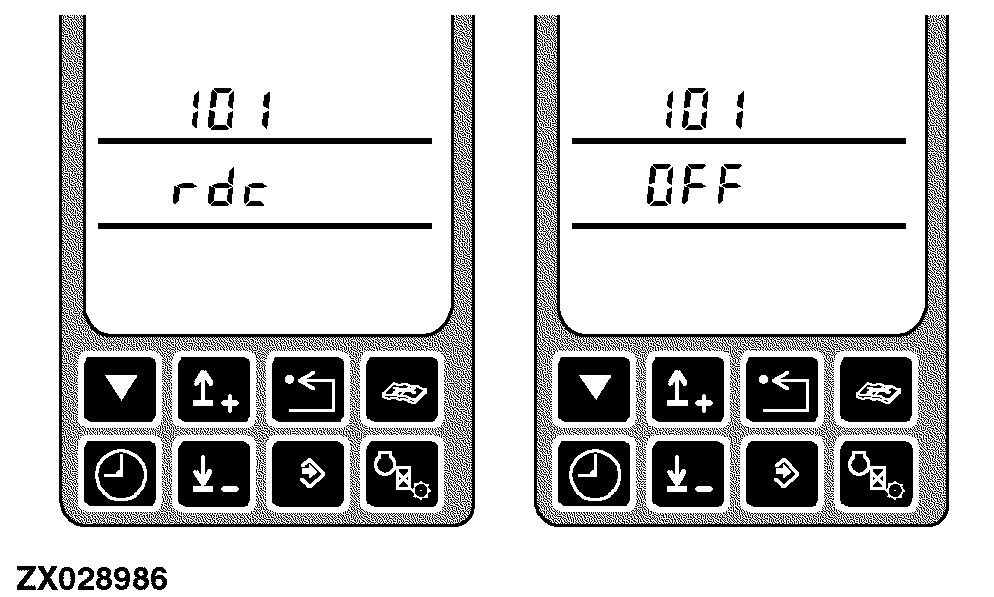

Entering this address, the corner post control unit displays "rcp".

Pushing the enter key: The corner post control unit requests calibration.

OUZXMAY,00003F2 -19-22MAY02-1/6

If the rear wheel drive control unit is disabled, the display shows "OFF" and "rcp".

OUZXMAY,00003F2 -19-22MAY02-2/6

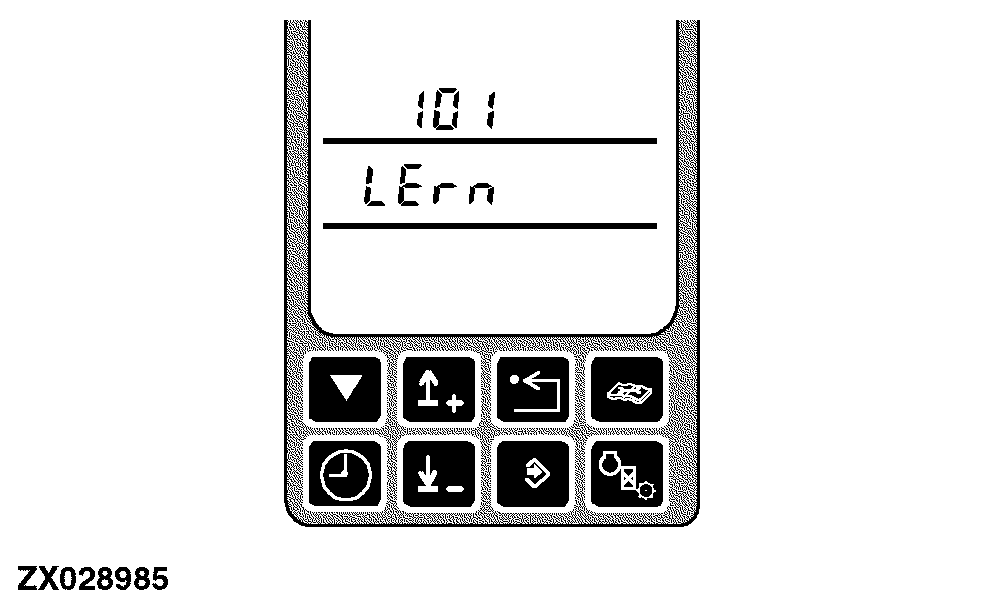

If the rear wheel drive control unit is enabled, the display shows "LErn".

OUZXMAY,00003F2 -19-22MAY02-3/6

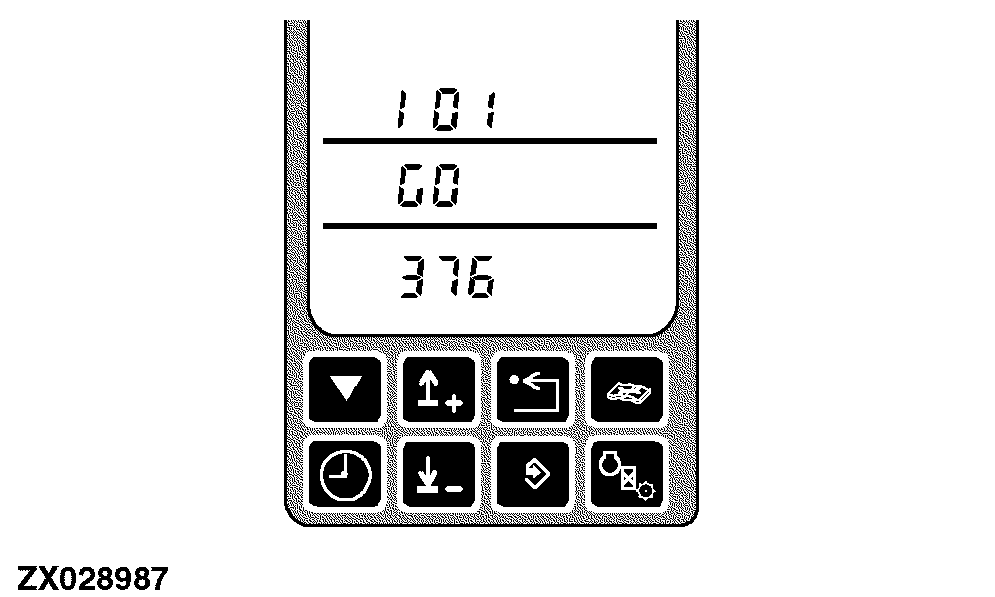

Once the rear wheel drive control unit begins the calibration, the display alternately displays "GO" and the current teaching ratio transmitted from the rear wheel drive control unit.

OUZXMAY,00003F2 -19-22MAY02-4/6

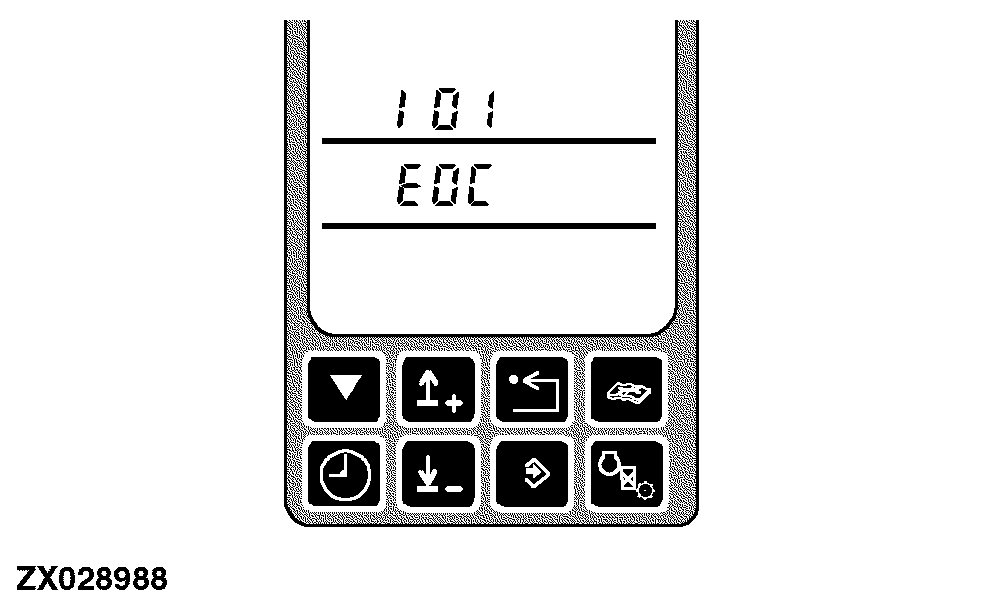

EOC will display the end of calibration mode.

This teaching ratio can be displayed with address RCP 102.

OUZXMAY,00003F2 -19-22MAY02-5/6

"Err" will be displayed if the calibration was not successful.

OUZXMAY,00003F2 -19-22MAY02-6/6
