Address SPF 101 Calibration - Upper And Lower Header Limit

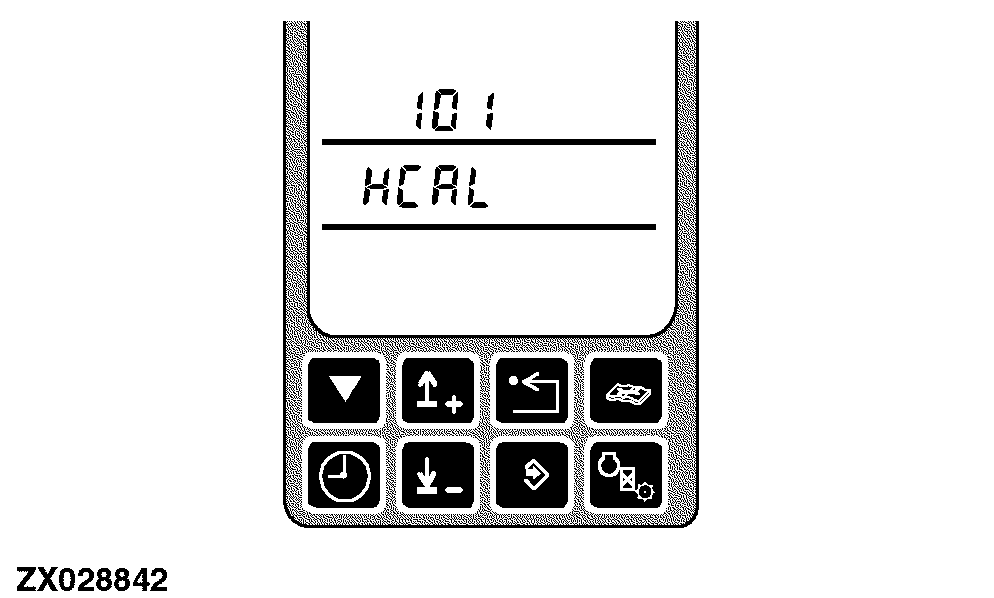

After selecting this address, the SPFH main control unit displays "HCal" to indicate header limit calibration.

OUZXMAY,00003F8 -19-22MAY02-1/4

After entering this diagnostic address, the SPFH main control unit displays "HdUP" to indicate the header should be moved to the upper limit.

Move the header all the way up.

OUZXMAY,00003F8 -19-22MAY02-2/4

Pressing the calibration switch captures the current header position as the upper limit and changes the display to "Hddn" to indicate the header should be moved to the lower limit.

Pressing the enter switch captures the current header position as the lower limit and stores the upper and lower header limit.

OUZXMAY,00003F8 -19-22MAY02-3/4

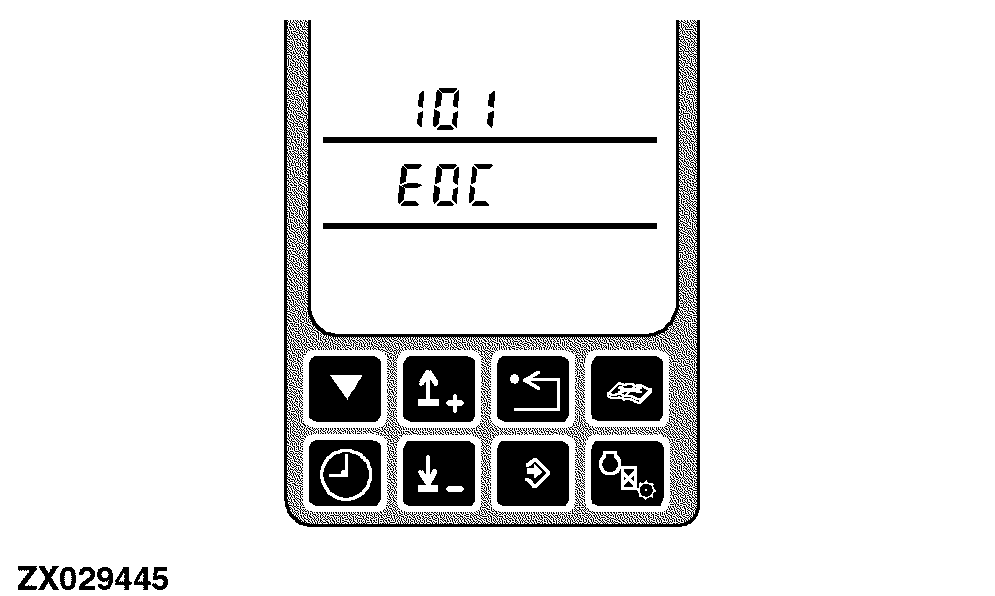

EOC will display the end of calibration mode.
