Address SPF 108 Calibration - Sharpening Door Closed Position

Ignition and field mode are switched on.

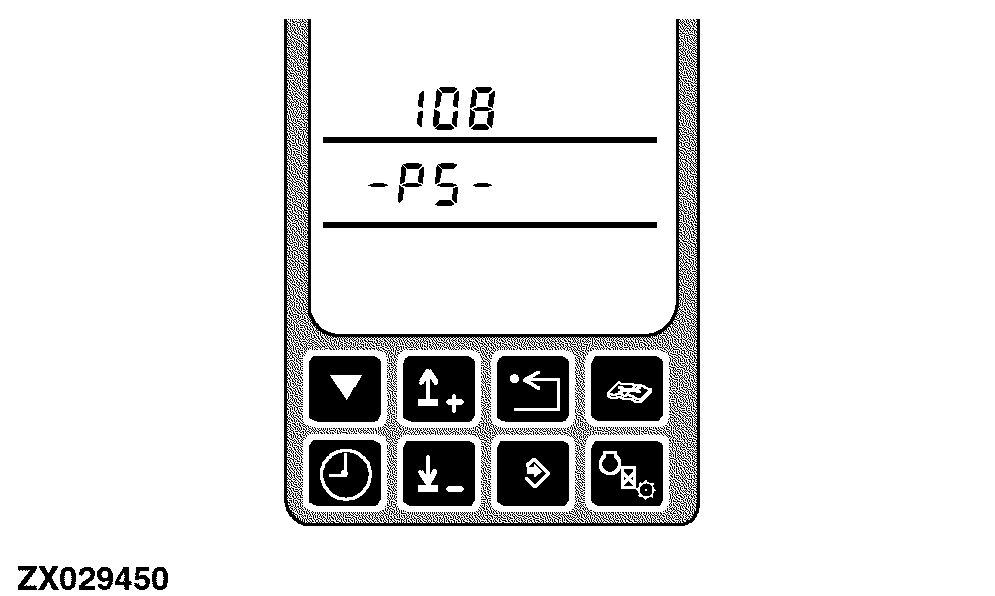

After entering this diagnostic address the display will show the address and PS (Powr-Savr).

ZX029450

OUZXMAY,00003FB -19-22MAY02-1/6

Pushing any Powr-Savr switch for at least 1 second.

ZX029451

OUZXMAY,00003FB -19-22MAY02-2/6

Use the input control knob to move the sharpening door to the closed position.

ZX029452

OUZXMAY,00003FB -19-22MAY02-3/6

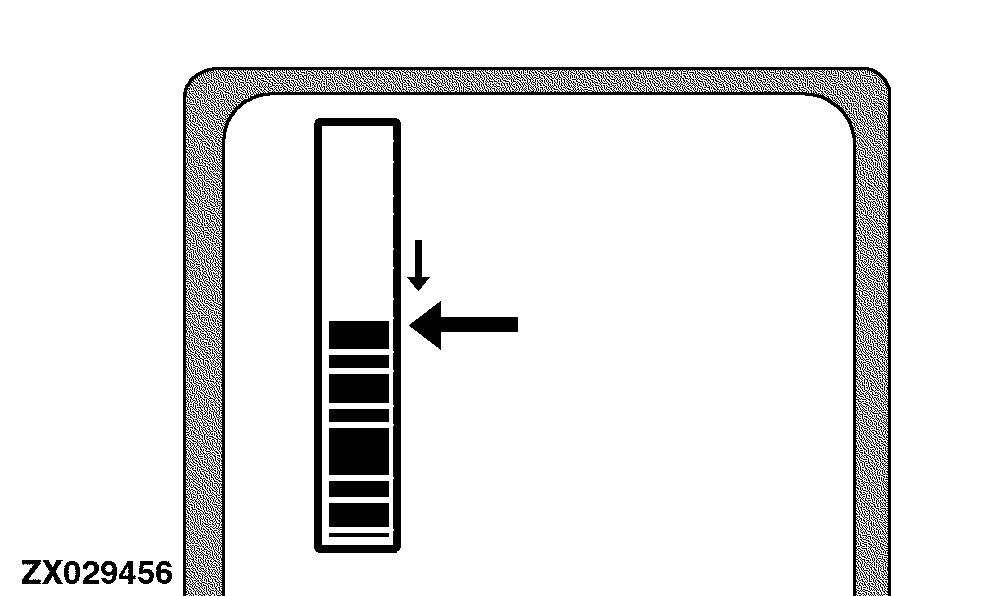

The inner bar graph indicates the position of the sharpening door.

ZX029456

OUZXMAY,00003FB -19-22MAY02-4/6

When the closed position is reached the display will show the corresponding value. Press the enter switch to store this position.

ZX029458

OUZXMAY,00003FB -19-22MAY02-5/6

EOC will display the end of calibration mode.

ZX029454

OUZXMAY,00003FB -19-22MAY02-6/6
