Address SIG 100 Calibration - Metal Detector Enable

Used to enable the metal detector simultaneously when the main clutch is engaged.

OUZXMAY,0000427 -19-23JUN02-1/5

After entering this address, the display will show the address and on.

ZX028998

OUZXMAY,0000427 -19-23JUN02-2/5

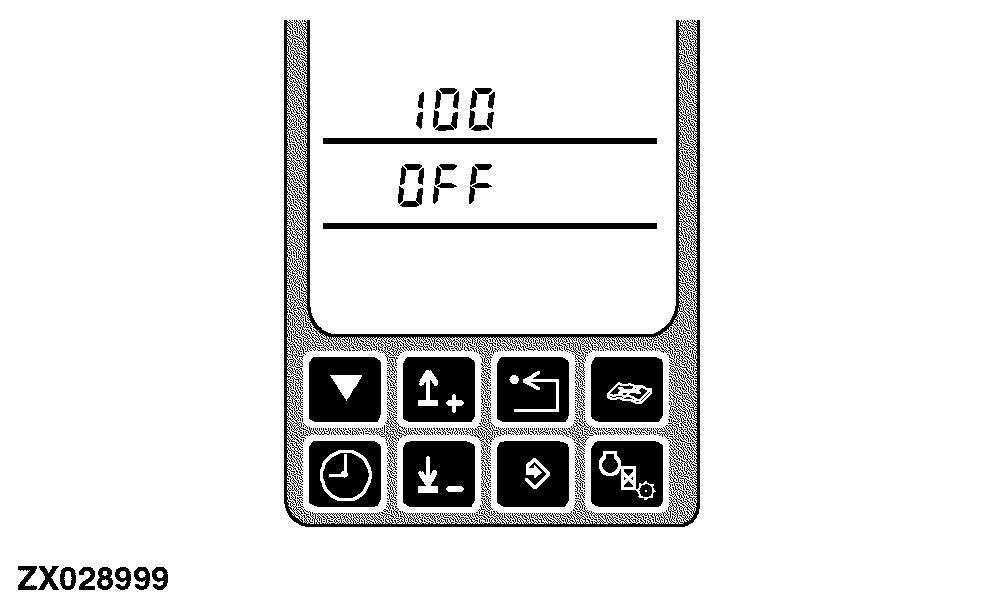

Pressing the calibration switch will toggle the override.

ON - If the override is not active.

OFF - If the override is active.

Pressing the enter switch will set the override based on the operator selection.

ZX028999

OUZXMAY,0000427 -19-23JUN02-3/5

NOTE: The override is disabled when power is removed from the control unit.

EOC will display the end of calibration mode.

ZX029000

OUZXMAY,0000427 -19-23JUN02-4/5

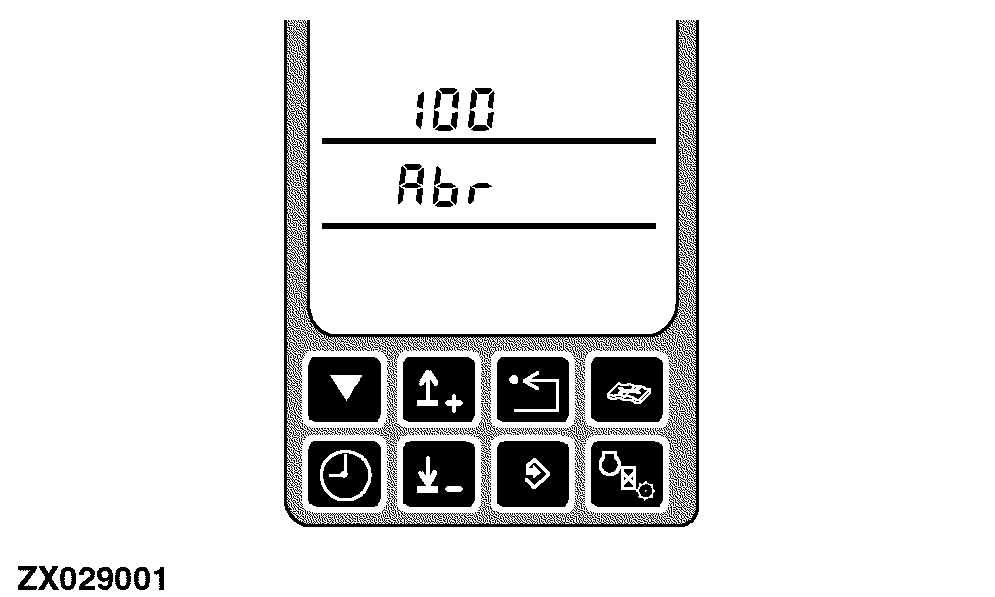

Pressing the back switch two times will abort the calibration.

ZX029001

OUZXMAY,0000427 -19-23JUN02-5/5
