On-Board Diagnostics - Beep Mode

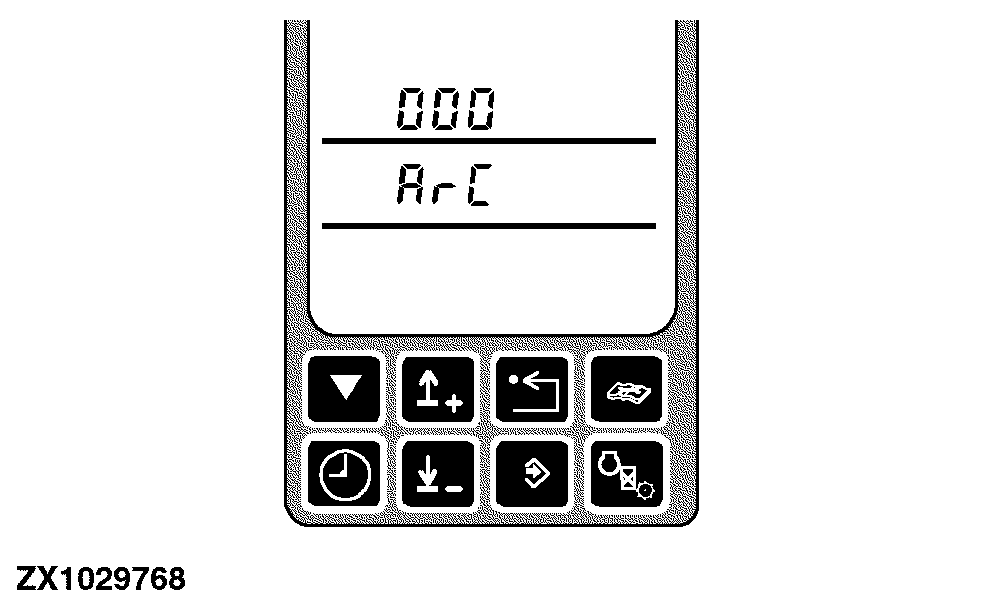

Once the desired device is selected, the control unit identifier and the initial diagnostic address 000 are shown.

OUZXMAY,0000434 -19-26JUN02-1/5

Navigate to the system beep mode diagnostic address using the up switch.

Press the enter switch to access this address.

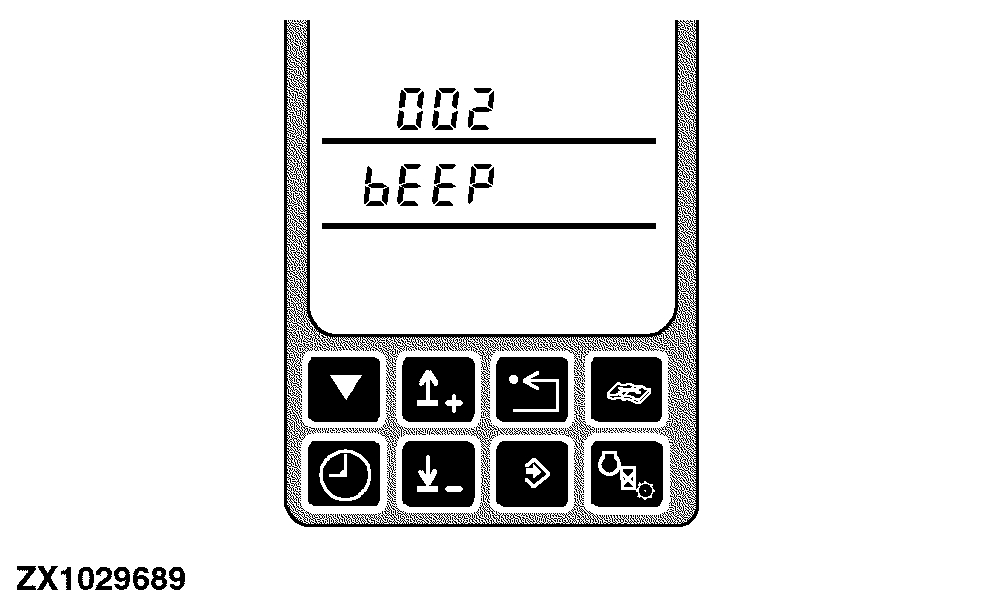

The display will show the beep mode address and a beep will sound to indicate beep mode has been entered.

Operation

When operating in system beep mode a significant change in any of the beep mode inputs will cause an alarm to sound and the display to show the diagnostic address of the input which changed.

OUZXMAY,0000434 -19-26JUN02-2/5

Example: Beep mode for road safety switch at address ARC 050

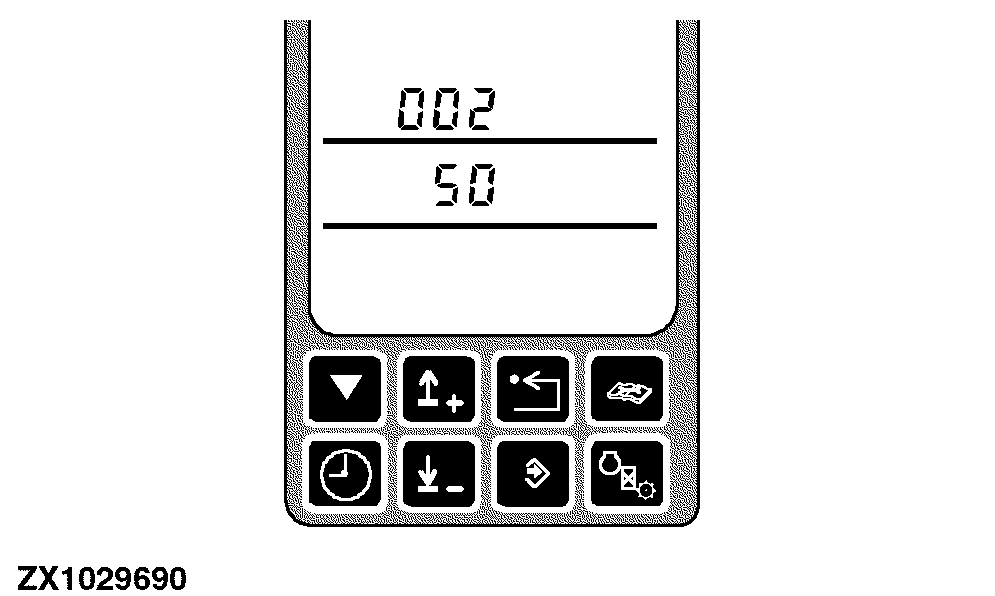

Press the road safety switch to get displayed the corresponding address. The display will show: 002 and 50.

OUZXMAY,0000434 -19-26JUN02-3/5

If the address is displayed and a beep sounds, jump to that address by use of the enter switch.

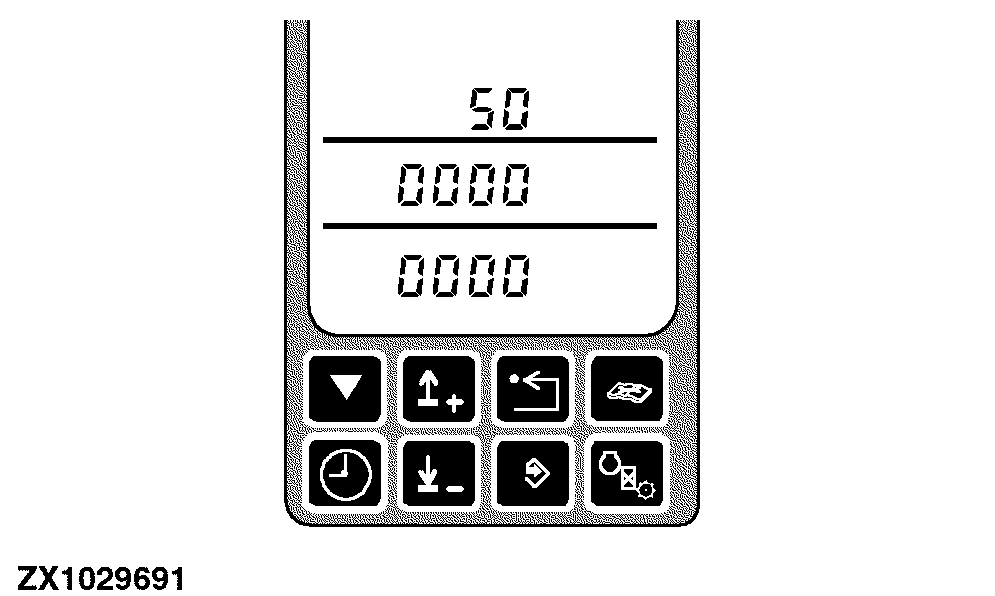

The display will show the diagnostic address.

OUZXMAY,0000434 -19-26JUN02-4/5

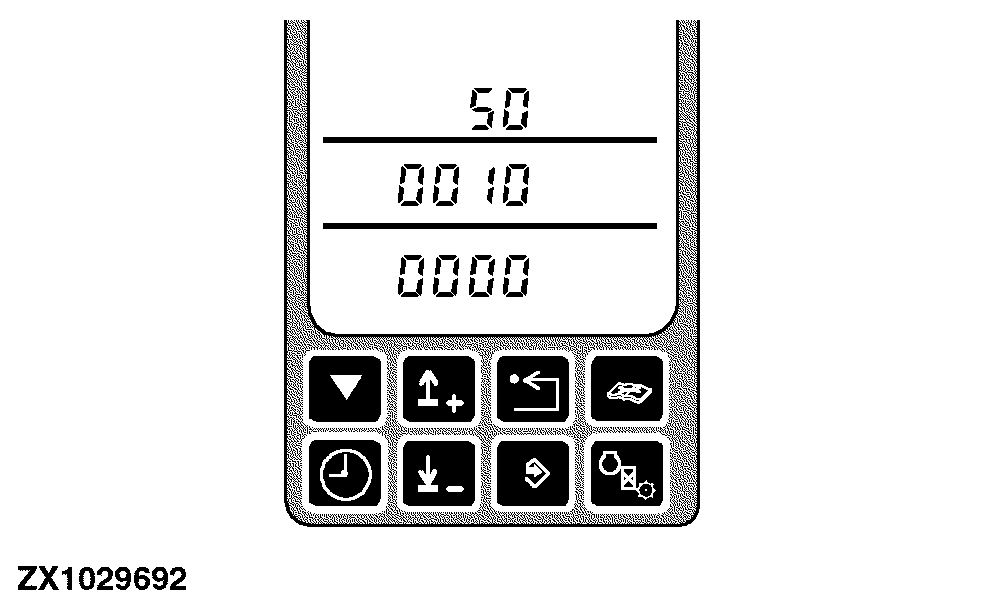

Press the road safety switch again to check the digital input of this switch.

If the digit for the road safety switch alternates from 0 to I the digital input for this switch is o.k..

OUZXMAY,0000434 -19-26JUN02-5/5
