Operator Messages and Instructions

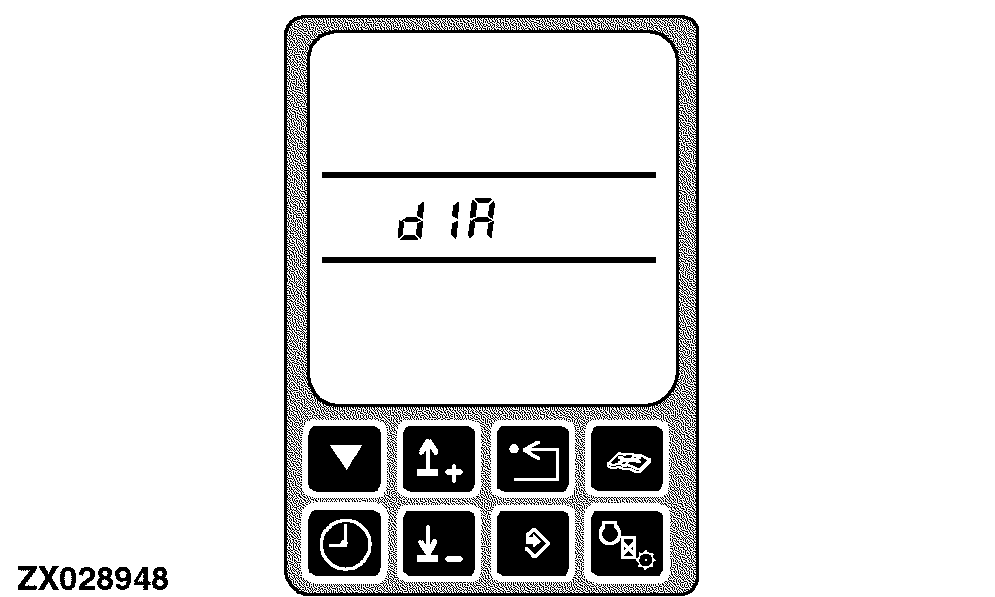

"DIA" - to indicate that diagnostic mode has been entered.
|
|
|
|
OUZXMAY,0000435 -19-26JUN02-1/11
|
|

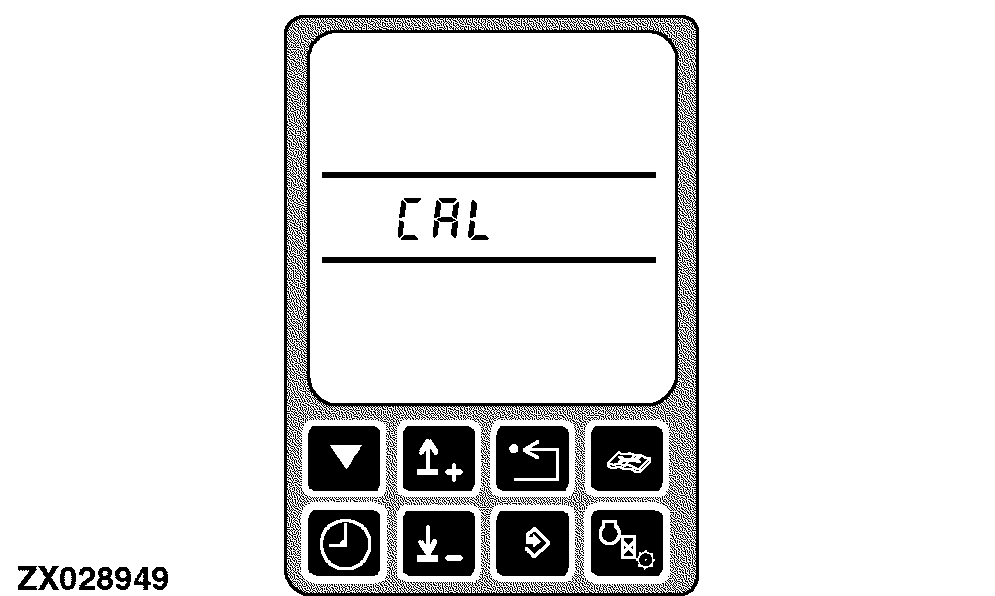

"CAL" - to indicate that an interactive calibration address has been encountered.
|
|
|
|
OUZXMAY,0000435 -19-26JUN02-2/11
|
|
"EOC" - to indicate that an end of interactive calibration has been entered.
|
|
|
|
OUZXMAY,0000435 -19-26JUN02-3/11
|
|
"InP" - to indicate that data input calibration mode has been entered.
|
|
|
|
OUZXMAY,0000435 -19-26JUN02-4/11
|
|
"DONE" - to indicate that a request to clear active diagnostic codes has been completed.
|
|
|
|
OUZXMAY,0000435 -19-26JUN02-5/11
|
|
"CODE" - to indicate that diagnostic trouble codes are present.
|
|
|
|
OUZXMAY,0000435 -19-26JUN02-6/11
|
|

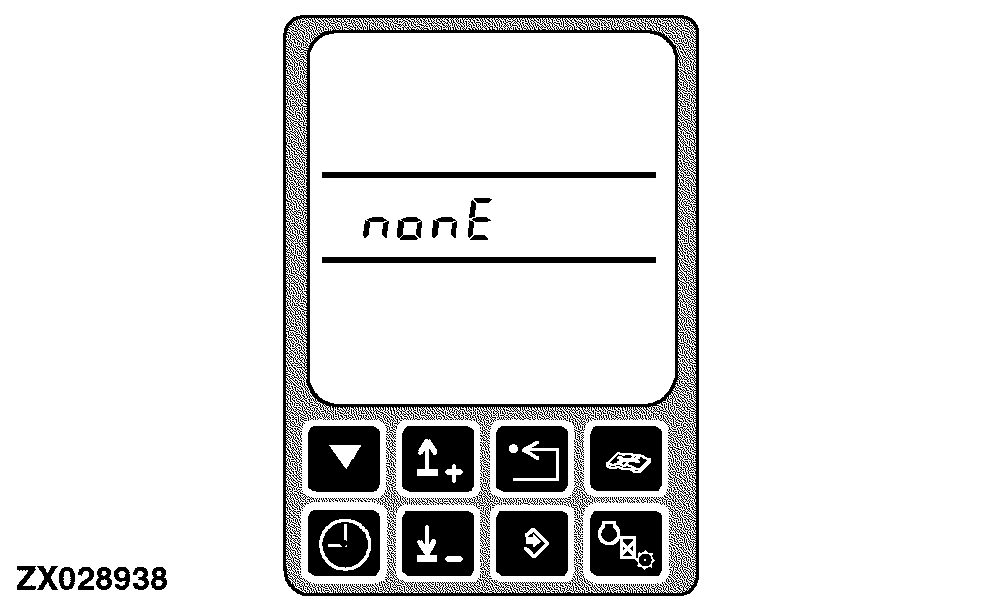

"NONE" - to indicate that no diagnostic trouble codes are present.
|
|
|
|
OUZXMAY,0000435 -19-26JUN02-7/11
|
|
"CLR?" - to clear diagnostic troubles codes.
|
|
|
|
OUZXMAY,0000435 -19-26JUN02-8/11
|
|

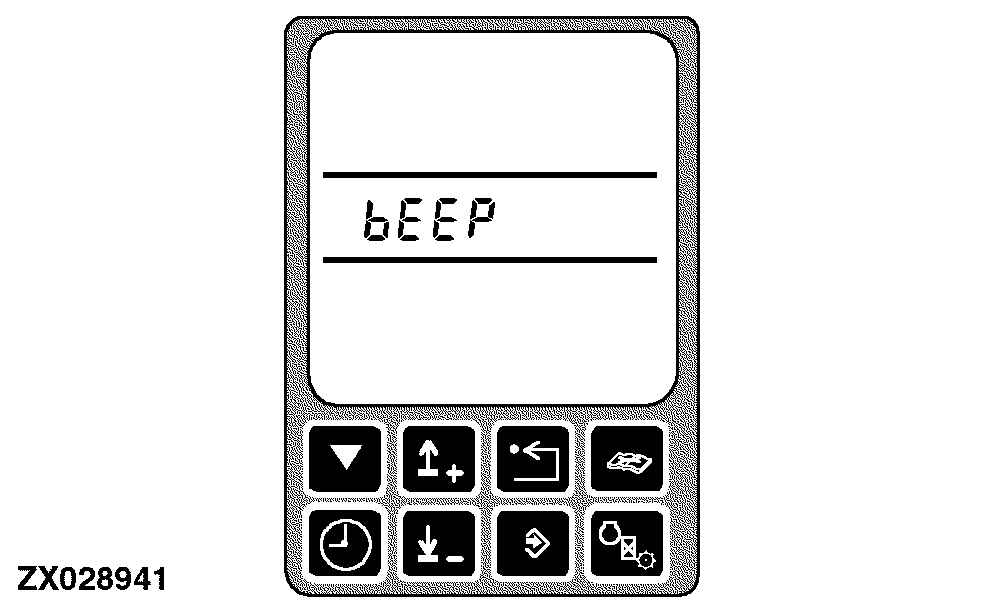

"BEEP" - to indicate that the diagnostic beep mode has been activated.
|
|
|
|
OUZXMAY,0000435 -19-26JUN02-9/11
|
|

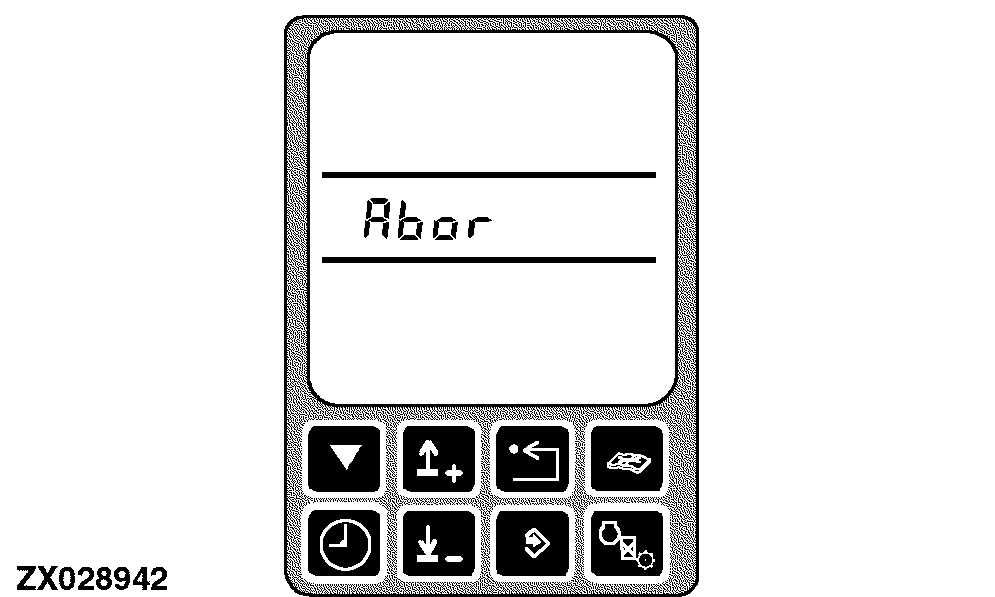

"ABOR" - to indicate that an abort of the interactive calibration has been processed.
|
|
|
|
OUZXMAY,0000435 -19-26JUN02-10/11
|
|
"ALL" - to indicate that the special device for recalling all codes has been accessed.
|
|
|
|
OUZXMAY,0000435 -19-26JUN02-11/11
|
|
