Reset Function

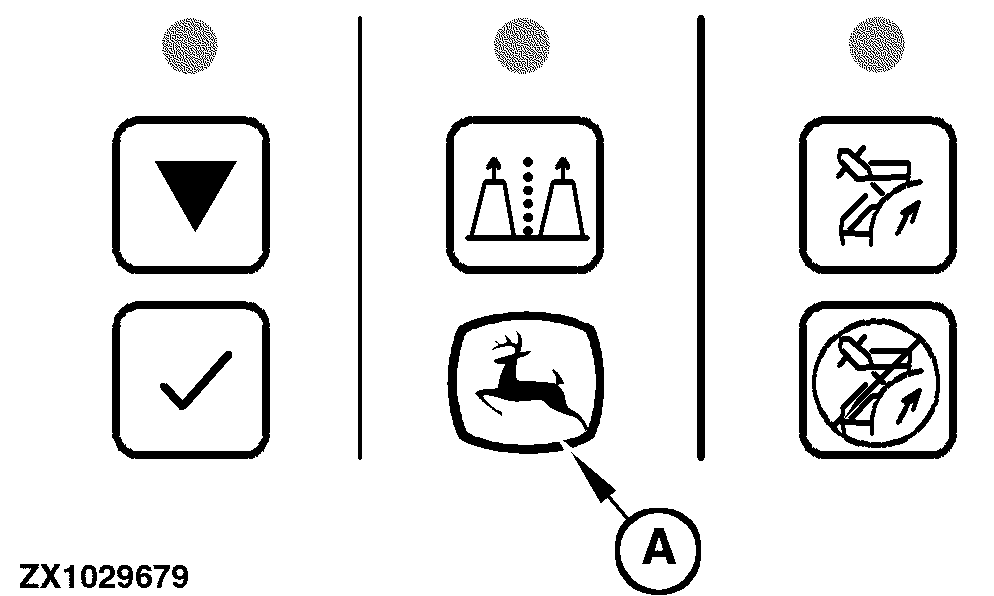

After pressing the Deere switch (A) for 10 seconds, the overhead control panel control unit will generate a message to the other control units to reset their calibration addresses to default settings (interactive calibrations will remain). The first default is factory default.

All calibration addresses of all control units will be reset to stored default values by the reset command from the overhead control panel control unit.

An acknowledgement by a short beep will sound after expiration of the 10-second period.

OUZXMAY,000043C -19-26JUN02-1/1
