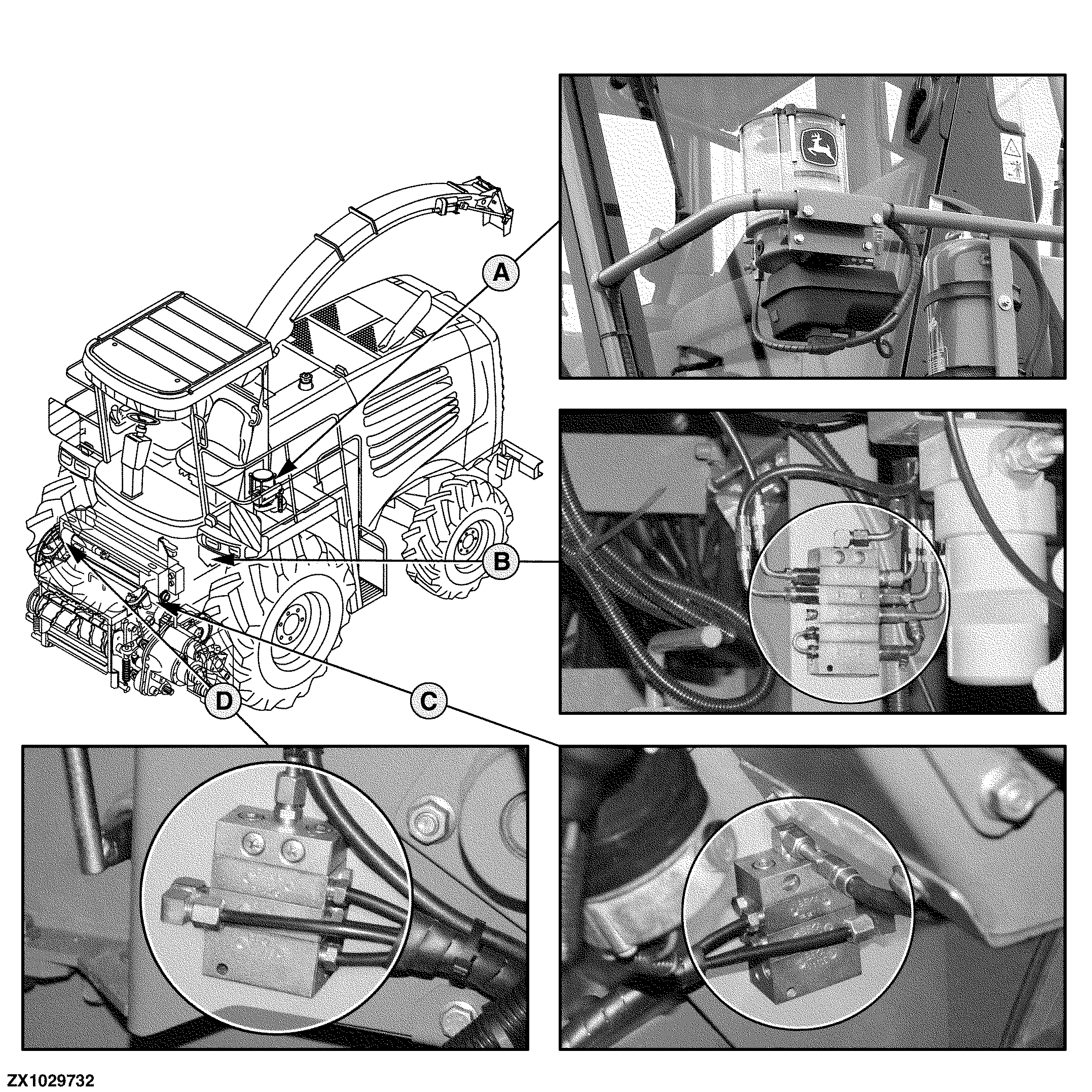

A-Pump housing with grease reservoir
|
B-Primary distributor on l.h. cab mounting
|
C-Secondary distributor on cutterhead, left-hand
|
D-Secondary distributor on cutterhead, right-hand
|

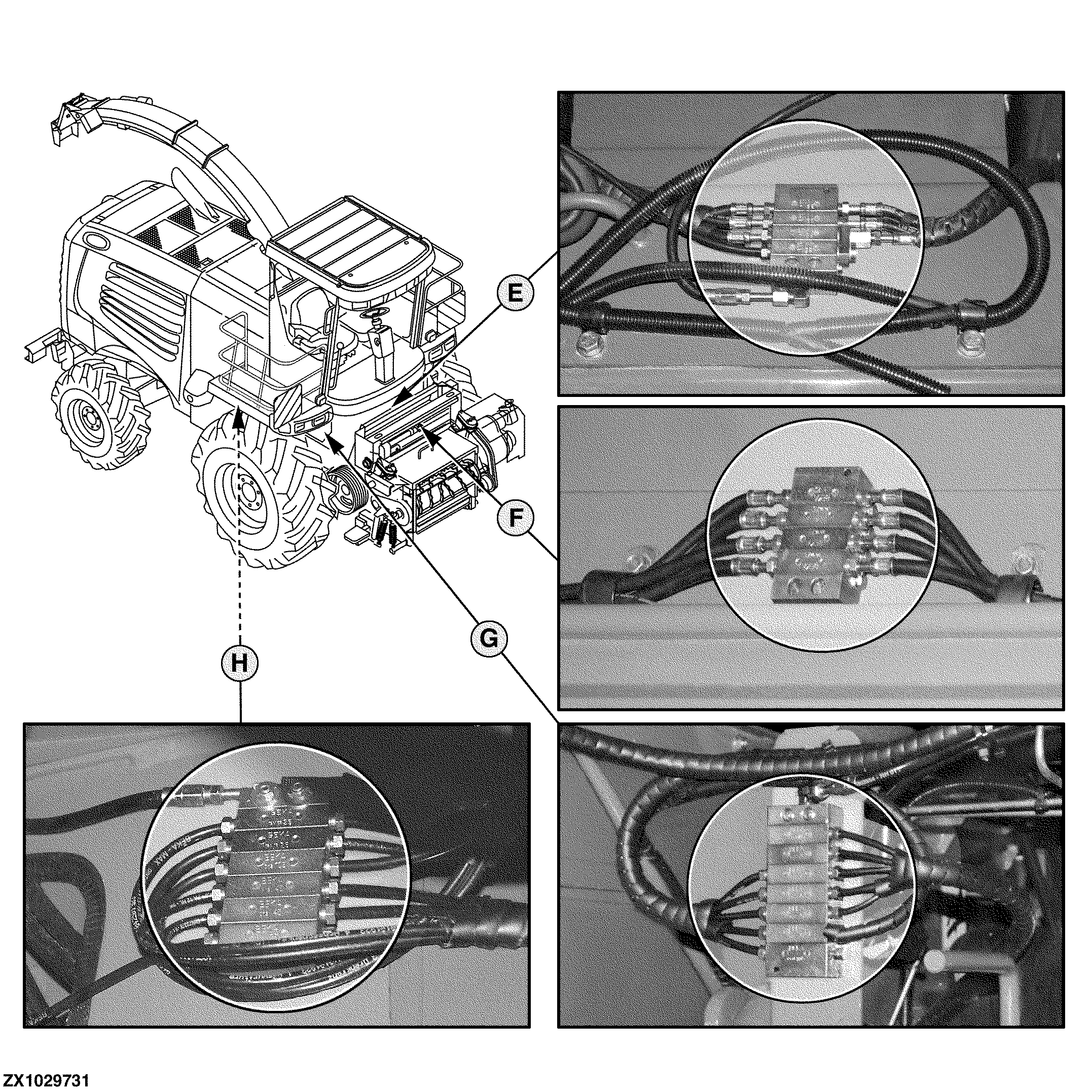

E-Secondary distributor on kernel processor (if equipped)
|
F-Secondary distributor on cutterhead
|
G-Secondary distributor on r.h. cab mounting
|
H-Secondary distributor on right of main frame behind fan crossmember
|
