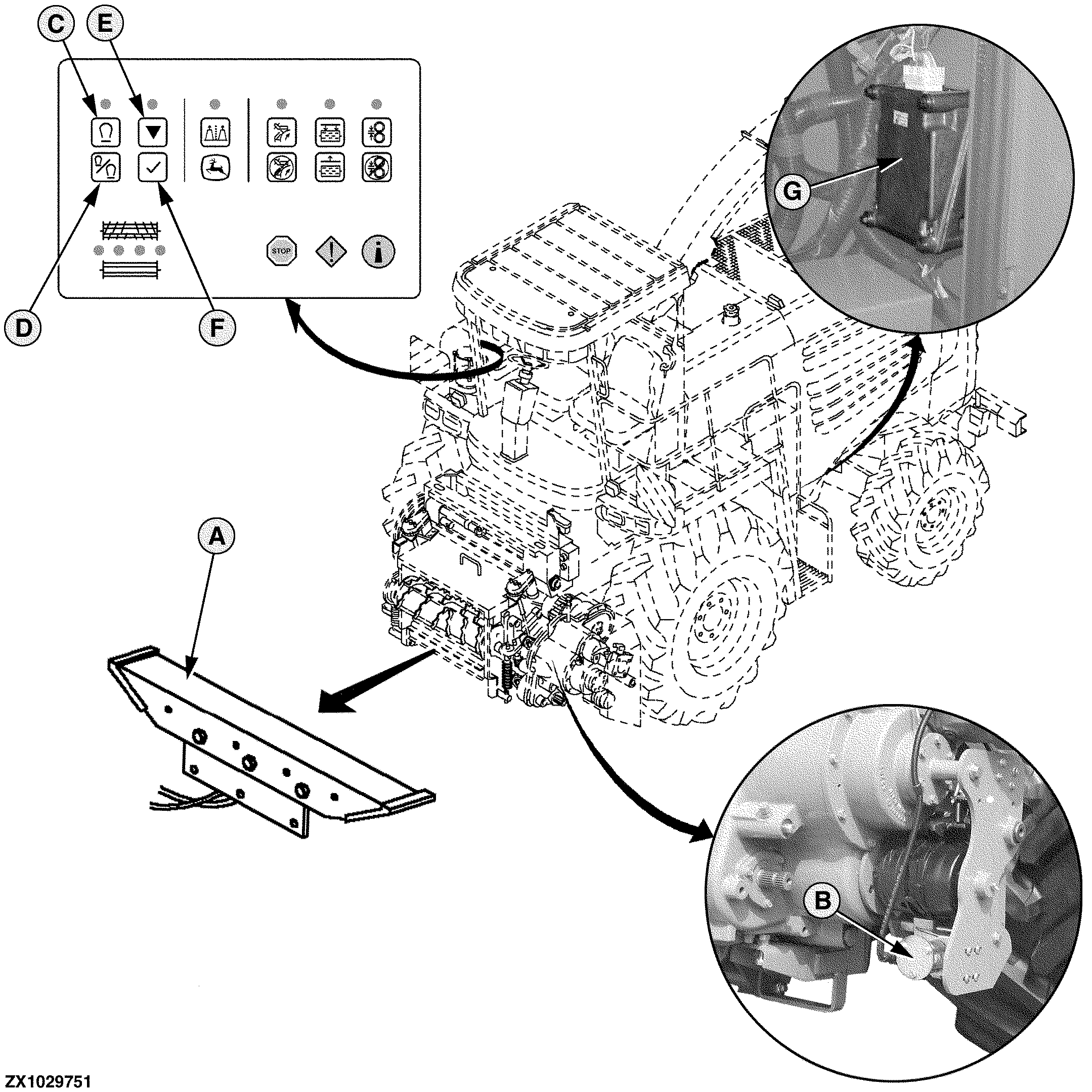

A-3 Coil Metal Detect Sensor
B-Electric / Hydraulic Locking Pawl Solenoids
C-Metal Detector Enable Switch

D-Metal Detector Initial Threshold Switch
E-Metal Detector Calibration Switch

F-Metal Detector Test Switch

G-Electronic Control System - Metal Detector Control Unit

INTELLIGUARD is a trademark of Deere & Company.

OUZXMAY,0000459 -19-08AUG02-1/2

Metal Detect System

The standard metal detector prevents that together with the crop ferrous metal is fed into the cutterhead and causes damage to the machine and injuries to the health of the animals.

As soon as sensor (A) in lower front feed roll detects a piece of ferrous metal, the four feed rolls and the harvesting unit are stopped immediately by means of the locking pawl solenoids (B).

At the same time power flow from cutterhead to length-of-cut transmission is interrupted by the input clutch.

The input clutch may also be shut off by operating the quick stop function of the multi-function lever. Feed rolls and harvesting unit are stopped immediately by this function.

The system must be reversed to reactivate the feed rolls.

A secondary winding (test winding) around permanent magnet of sensor (A) is supplied with voltage when operating test switch (F). The magnetic field of the secondary winding induces voltage in the primary winding, simulating detection of ferrous metal.

The metal detect system represents an important monitoring functionality and complies with the following requirements:

• Detection capability for ferromagnetic materials
• Metal location detection capability
• Sensitivity adjustment capability
• Self learning sensitivity calibration capability
• Diagnostic and self diagnostic capability

OUZXMAY,0000459 -19-08AUG02-2/2
