Y12-Solenoid, Turn Discharge Spout To Right
Y13-Solenoid, Turn Discharge Spout To Left
Y13.1-Solenoid, Turn Discharge Spout Fast
Y14-Solenoid, Lower Discharge Spout

Y15-Solenoid, Raise Discharge Spout
Y23-Solenoid, Fore-And-Aft Reel Adjustment, Forward / Fold Rotary Harvesting Unit In (Optional)

Y24-Solenoid, Fore-And-Aft Reel Adjustment, Back / Fold Rotary Harvesting Unit Out (Optional)
Y25-Solenoid, Lower Reel (Optional)
Y26-Solenoid, Raise Reel (Optional)

Y30-Solenoid, Unload Valve
Y31-Solenoid, Trailer Dump, Raise (Optional)
Y32-Solenoid, Trailer Dump, Lower (Optional)

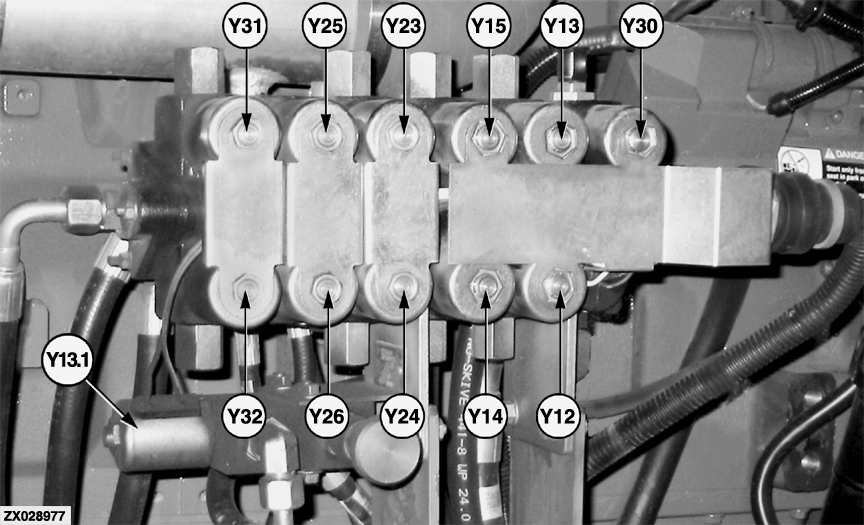

Solenoids, Main Hydraulic System

OUZXMAY,000045D -19-08AUG02-1/6

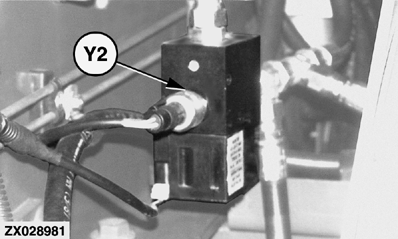

Solenoid, Shut Off Valve Automatic Header Control (Header Float)

Y2-Solenoid, Shut Off Valve Automatic Header Height Control (Header Float)

OUZXMAY,000045D -19-08AUG02-2/6

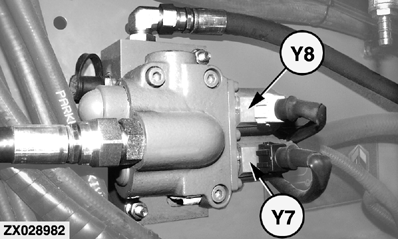

Solenoids, Proportional Valve

Y7-Solenoid, Proportional Valve Header Up
Y8-Solenoid, Proportional Valve Header Down

OUZXMAY,000045D -19-08AUG02-3/6

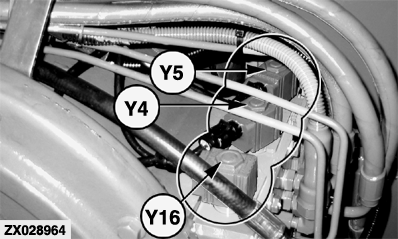

Solenoids IVLOC

Y4-Solenoid, IVLOC Brake
Y5-Solenoid, IVLOC Input Clutch
Y16-Solenoid, Header Speed Slow

OUZXMAY,000045D -19-08AUG02-4/6

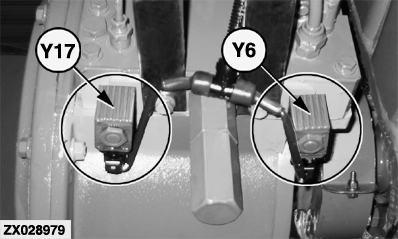

Y6-Solenoid, IVLOC Reversing Shaft
Y17-Solenoid, Header Speed Fast

OUZXMAY,000045D -19-08AUG02-5/6

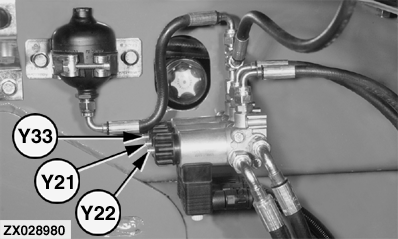

Solenoids, Low Pressure

Y21-Kernel Processor
Y22-Fan Clutch (7400 and 7500 Only)
Y33-Solenoid, Engage / Disengage Main Clutch

OUZXMAY,000045D -19-08AUG02-6/6
