Harvesting Unit On / Reverser Switch
Engaging feed rolls, harvesting unit and rotary crop dividers (option) is only possible with:
-
Engine running
-
Road safety switch in field operating mode
-
Feed roll housing closed
-
Main clutch engaged (for feedroll forward operation only)
Operating Switch (A)
-
To engage the feed rolls and the harvesting unit (forward rotation), press symbol (I) at switch (A) twice.
-
To reverse the feed rolls press and hold symbol (II) at switch (A).
-
Press symbol (II) at switch (A) three times and hold to reverse the feed rolls and the harvesting unit - without cutterhead running.

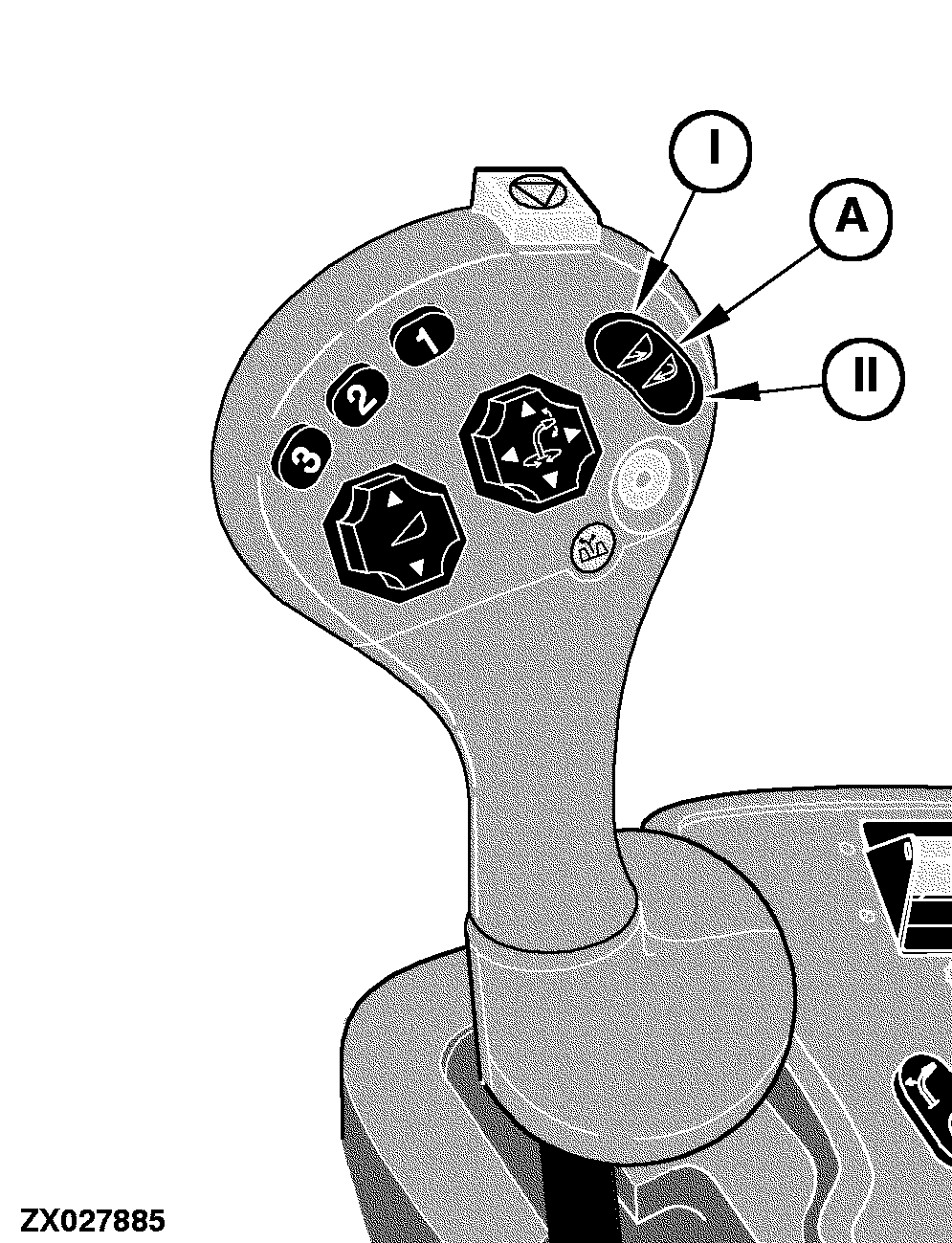

A-Harvesting Unit On / Reverser Switch
I-To Engage Feed Rolls And Harvesting Unit
II-Reverse Feed Rolls And Harvesting Unit
|
|
