Address RCP 116 Calibration - Rear Wheel Drive Control Unit Pressure Sensor

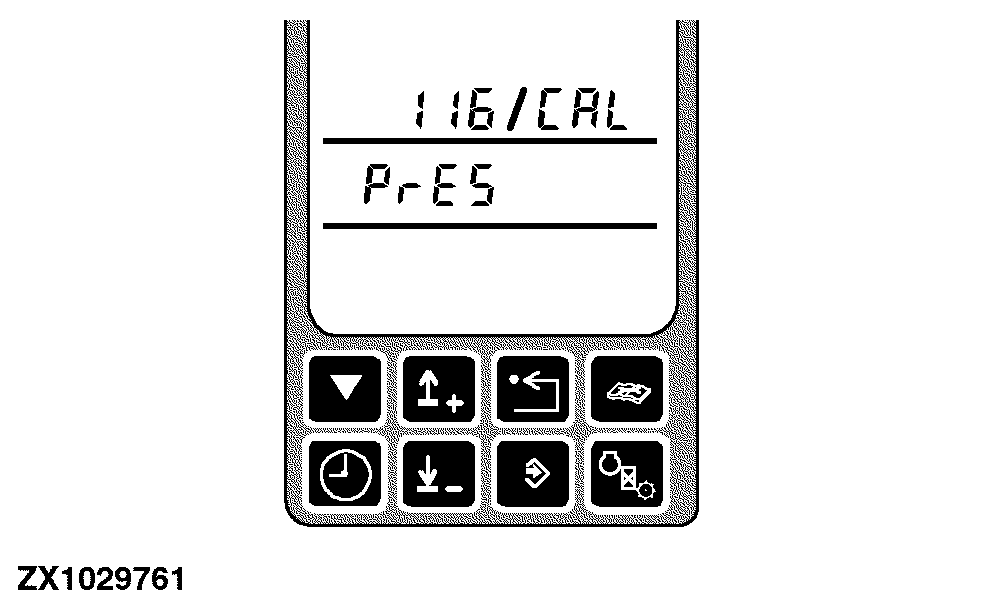

Entering this address, the corner post control unit displays alternately "116" and "CAL" and "PrES".

OUZXMAY,0000461 -19-10AUG02-1/7

After entering this address the corner post control unit checks if the engine is running or not.

If the engine is running the display shows alternately "EnG" and "On".

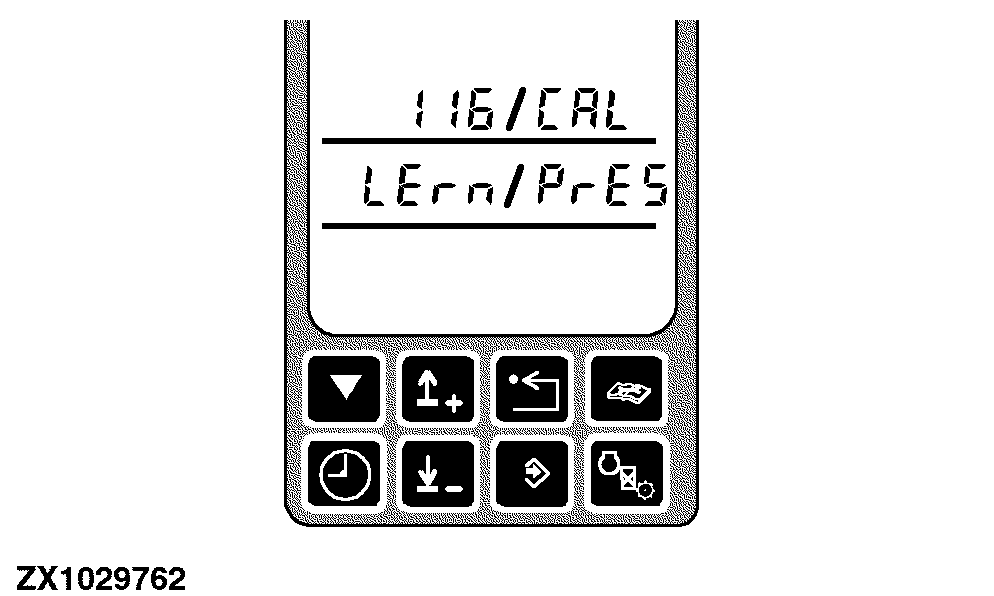

If the engine is not running the display shows alternately "LErn" and "PrES" and checks if the rear wheel drive is enabled or not.

OUZXMAY,0000461 -19-10AUG02-2/7

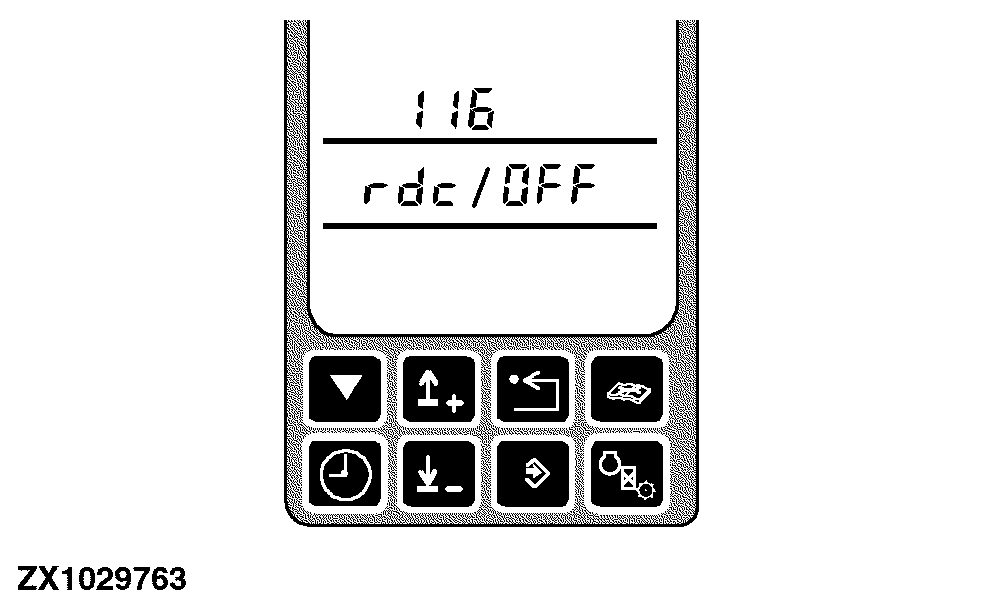

If the rear wheel drive is not enabled, the display shows "rdc" and "OFF".

OUZXMAY,0000461 -19-10AUG02-3/7

Engage the rear wheel drive.

OUZXMAY,0000461 -19-10AUG02-4/7

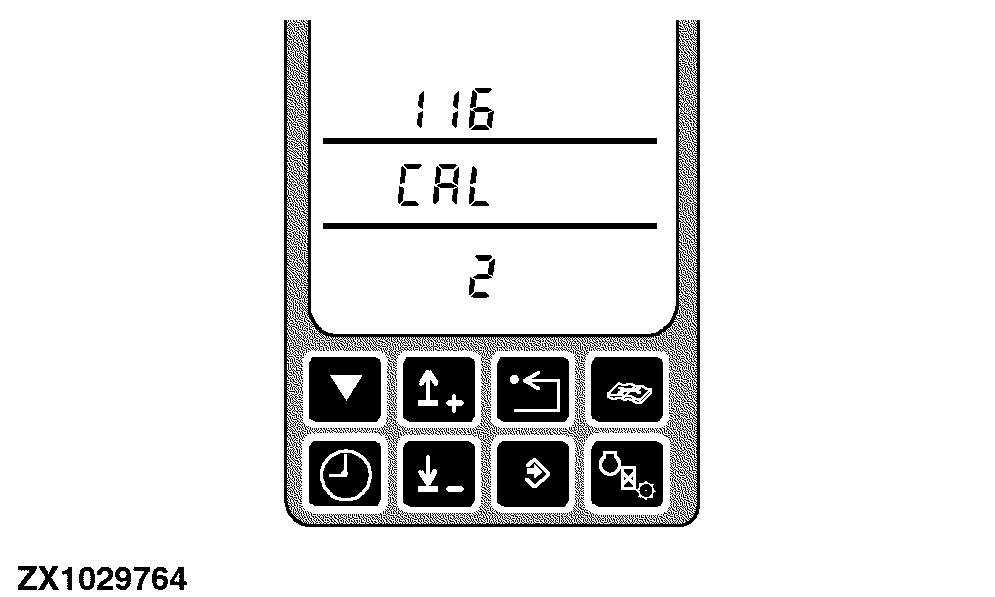

After engaging the rear wheel drive, the display shows "CAL" and the current pressure.

OUZXMAY,0000461 -19-10AUG02-5/7

If the calibration process finished correctly the rear wheel drive control unit stores the new value. This value will be used from this time as the off set value for the pressure calculation.

EOC will display the end of calibration mode.

OUZXMAY,0000461 -19-10AUG02-6/7

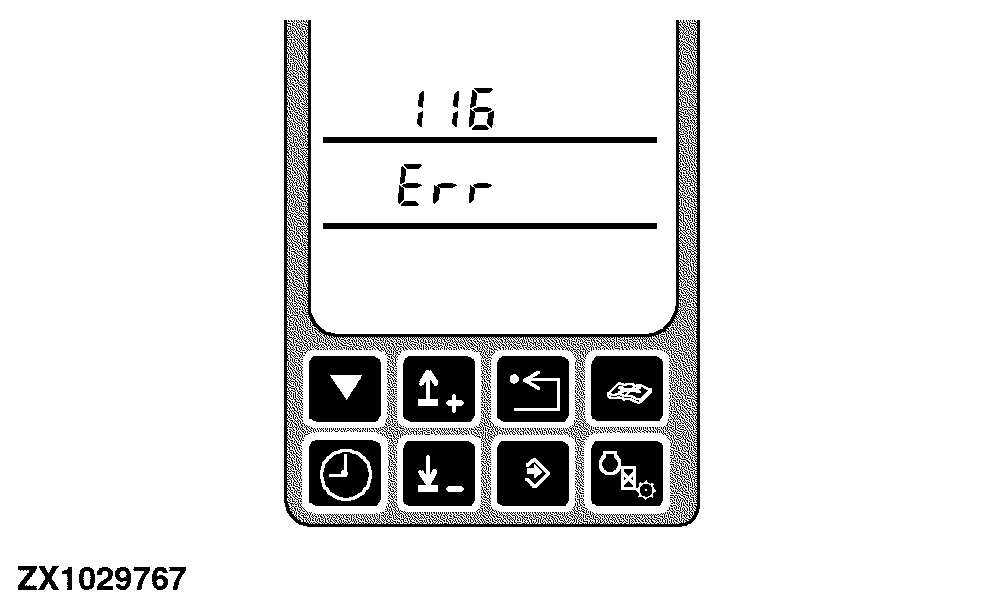

If an error occurs during the calibration process "Err" will be displayed.

The previously value is than used as off set value.

Repeat the calibration.

OUZXMAY,0000461 -19-10AUG02-7/7
