Warning Lights

The three position warning light switch controls all warning lights on forage harvester.

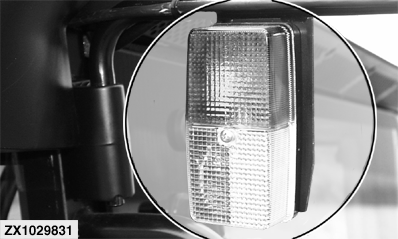

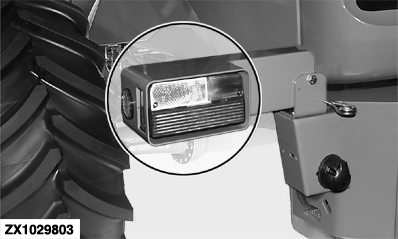

When transporting on a road, position lights give warning to other drivers. These lights are located on both sides at the front and rear of the forage harvester.

CAUTION: Lights must be turned on when transporting.

Road traffic regulations in some countries require that the hazard warning lights must be switched on whenever the forage harvester is stopped at the side of the road.

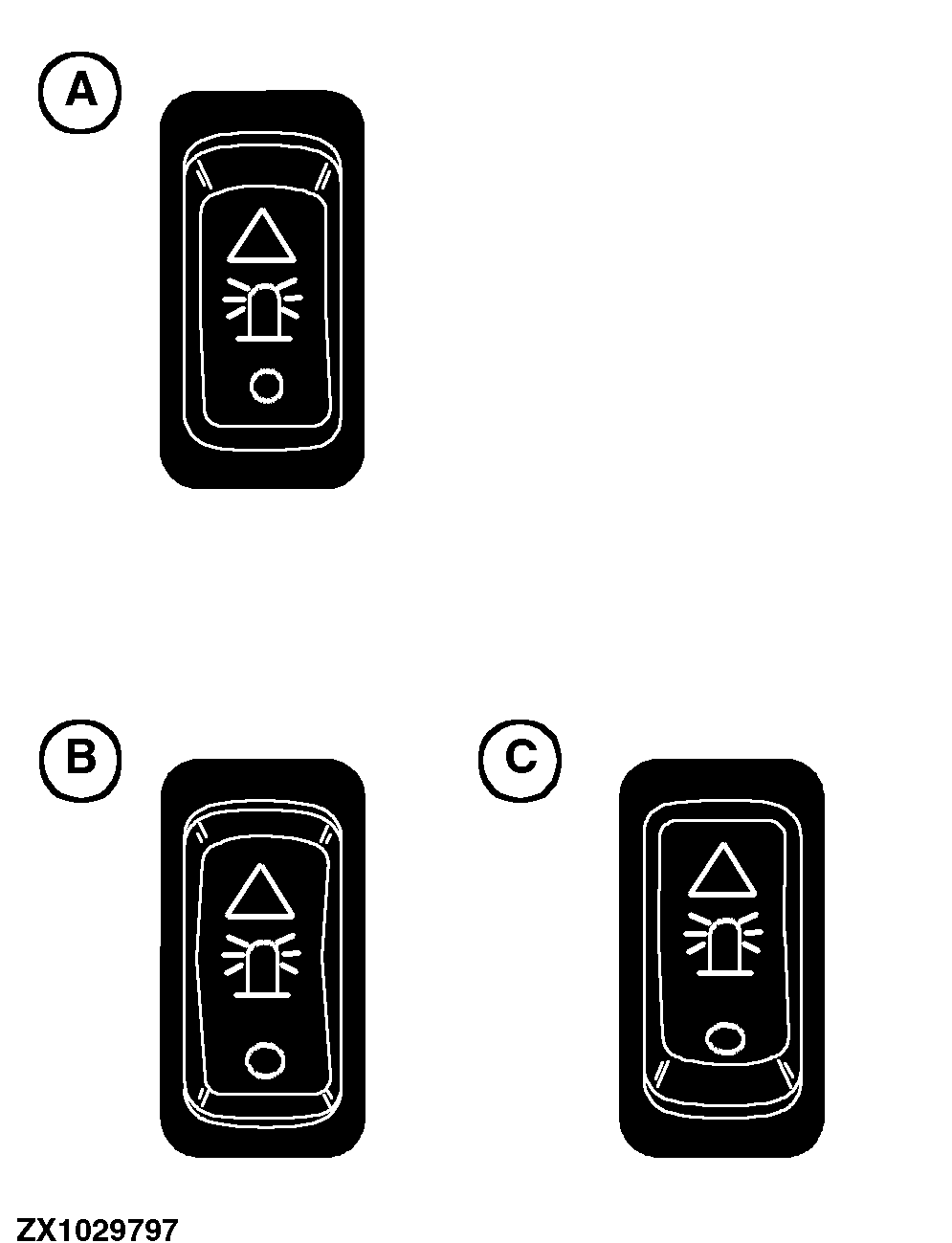

A-Hazard Warning Lights, Off
B-Not Used
C-Hazard Warning Lights, On

OUZXMAY,000047D -19-18AUG02-1/3

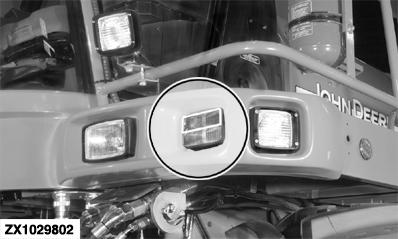

Additional warning lights (both sides) at the cab roof.

OUZXMAY,000047D -19-18AUG02-2/3

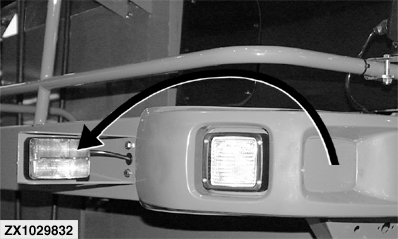

Depending on tires used, the warning lights (both sides) have to be mounted at the left and right side of the operator's station.

OUZXMAY,000047D -19-18AUG02-3/3
