Work / Rear Lights

CAUTION: To avoid motorist confusion, do not operate rear lights when transporting on public roadways.

Three position switch.

• Lower position turns lights off
• Middle position for work lights at cab roof, additional work lights at handrails and ladder light
• Top position for spout lights and rear door lights

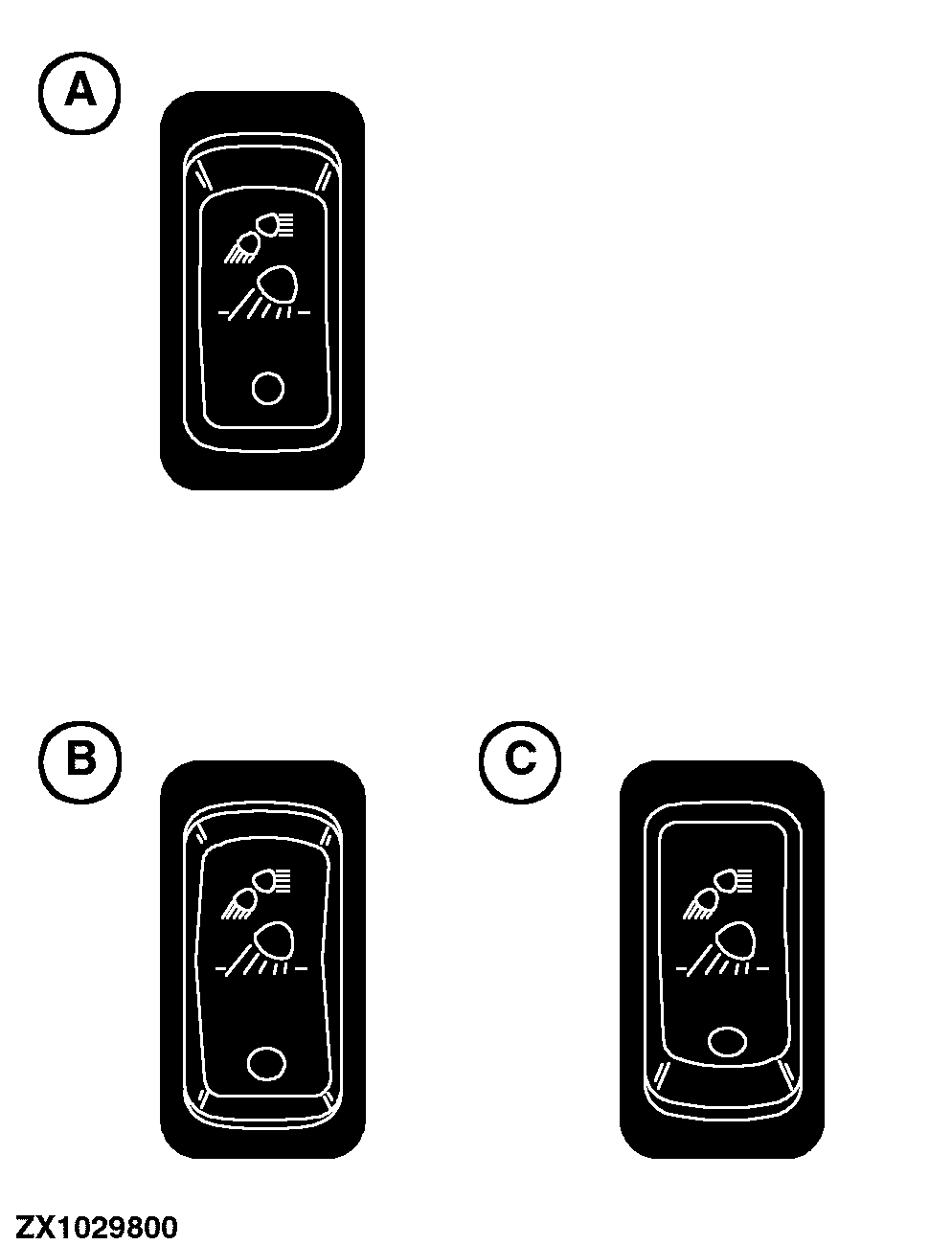

A-Work / Rear Lights, Off
B-Work / Rear Lights, On (Cab Roof, Handrails, Ladder)
C-Work / Rear Lights, On (Spout, Rear Door)

OUZXMAY,0000480 -19-18AUG02-1/5

NOTE: Only with road light switch in middle or top switch position.

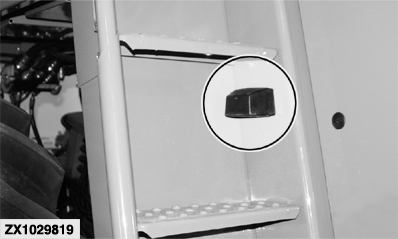

In middle switch position the work / rear light switch controls the work lights at cab roof, additional work lights at handrails and ladder light.

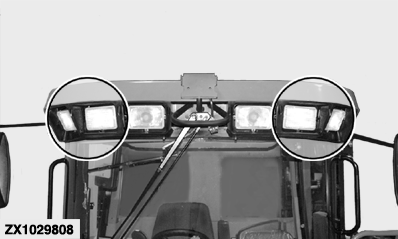

The work lights at the cab roof are available as:

1. 4x Worklights
2. 2x Worklights

2x Xenon Worklights

OUZXMAY,0000480 -19-18AUG02-2/5

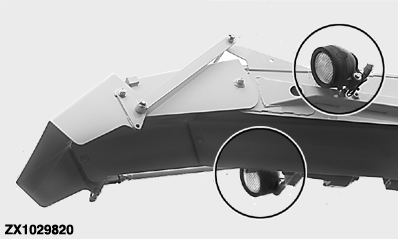

Discharge Spout Lights

With road safety switch in field operating mode, the spout lights can also be controlled with work / rear light switch in middle switch position.

OUZXMAY,0000480 -19-18AUG02-3/5

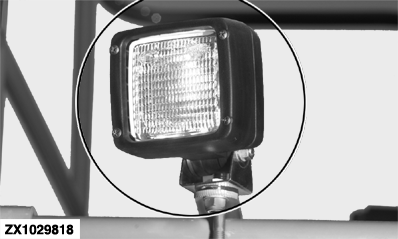

Rear Door Light

Operates when the field light switch is in on position.

OUZXMAY,0000480 -19-18AUG02-4/5

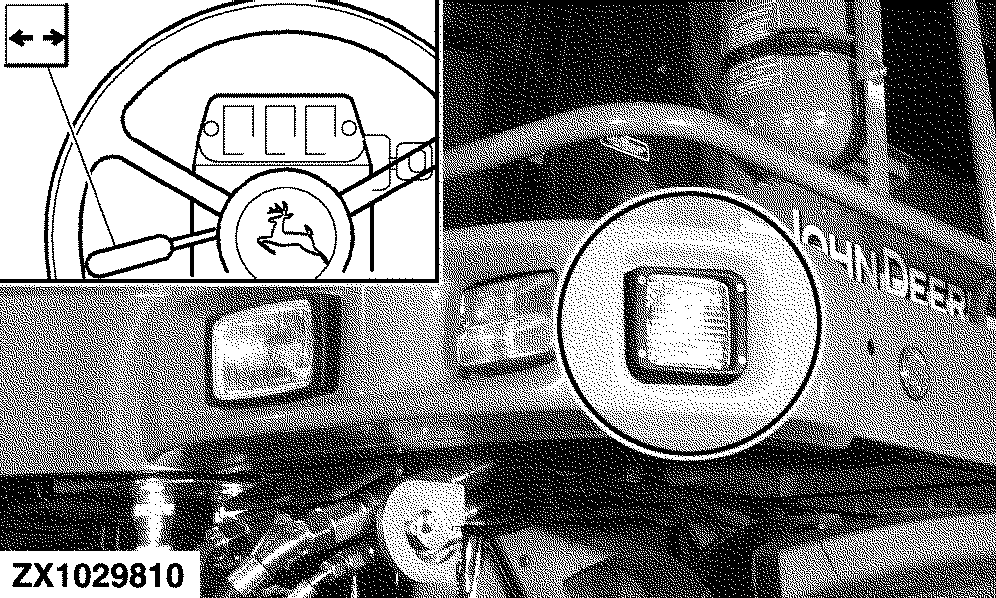

Additional lights are available for better overall visibility of the ends of the header and for improved visibility in front of the header.

Operation

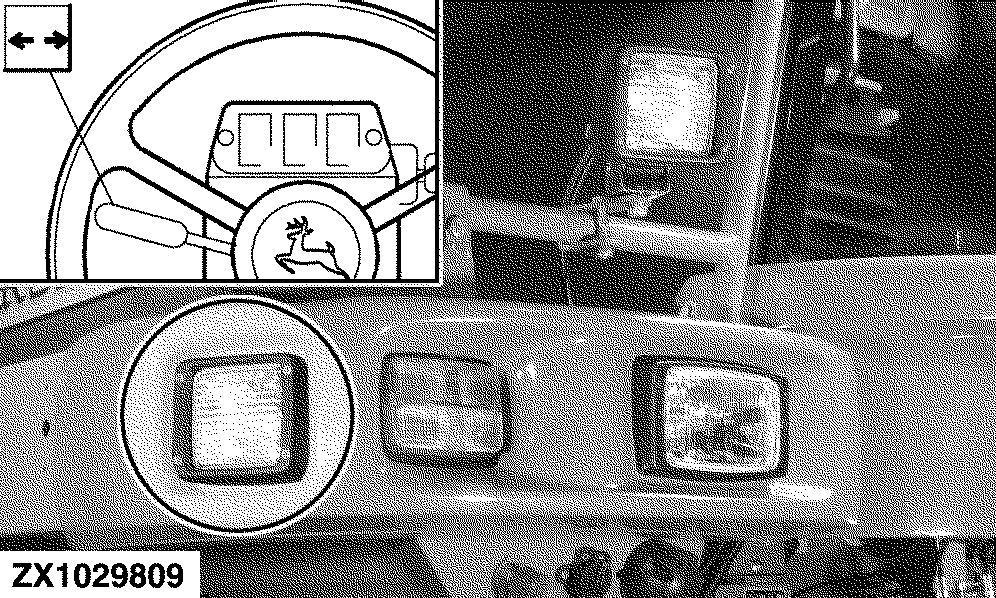

With road light switch in middle switch position, road safety switch in field operating mode and upper / lower road light switch in top switch position, move the turn signal switch to the corresponding direction to switch on the left or right row finder light.

OUZXMAY,0000480 -19-18AUG02-5/5
