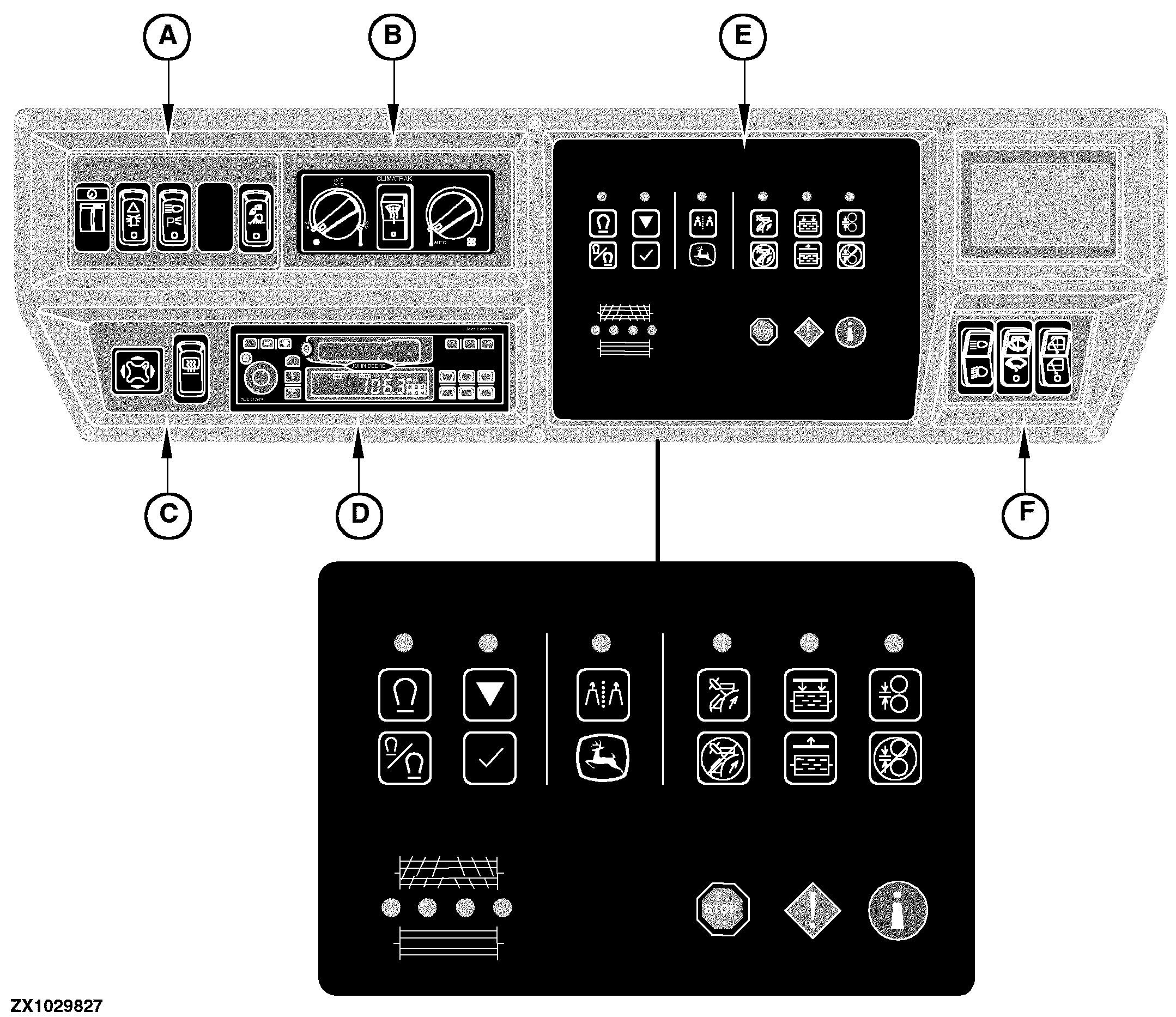

A-Light Switches and Hazard Warning Light Switch
B-CLIMATRAK™ Control Switches (optional)

C-Electrically Adjustable Outside Mirrors and Mirror Heater (optional)
D-Radio / Citizen Band (Special Equipment)

E-Automatic Function Control

F-High / Low Beam, Windshield Wiper and Windshield Washer Switches

NOTE: Dimensions for the installation of (D) are standard ones: 182 mm (7.17 in.) wide, 53 mm (2.1 in.) high.

CLIMATRAK is a trademark of Deere & Company

OUZXMAY,00004A1 -19-24AUG02-1/1
