Road Lights

causym CAUTION: Lights must be turned on when transporting.

The three position road light switch controls parking lights, instrument lights and turn signals when turn signal lever is used (middle switch position).


A-Road Lights, Off
B-Road Lights, On (Parking Lights, Instrument Lighting)
C-Road Lights, On (Low-Beam)

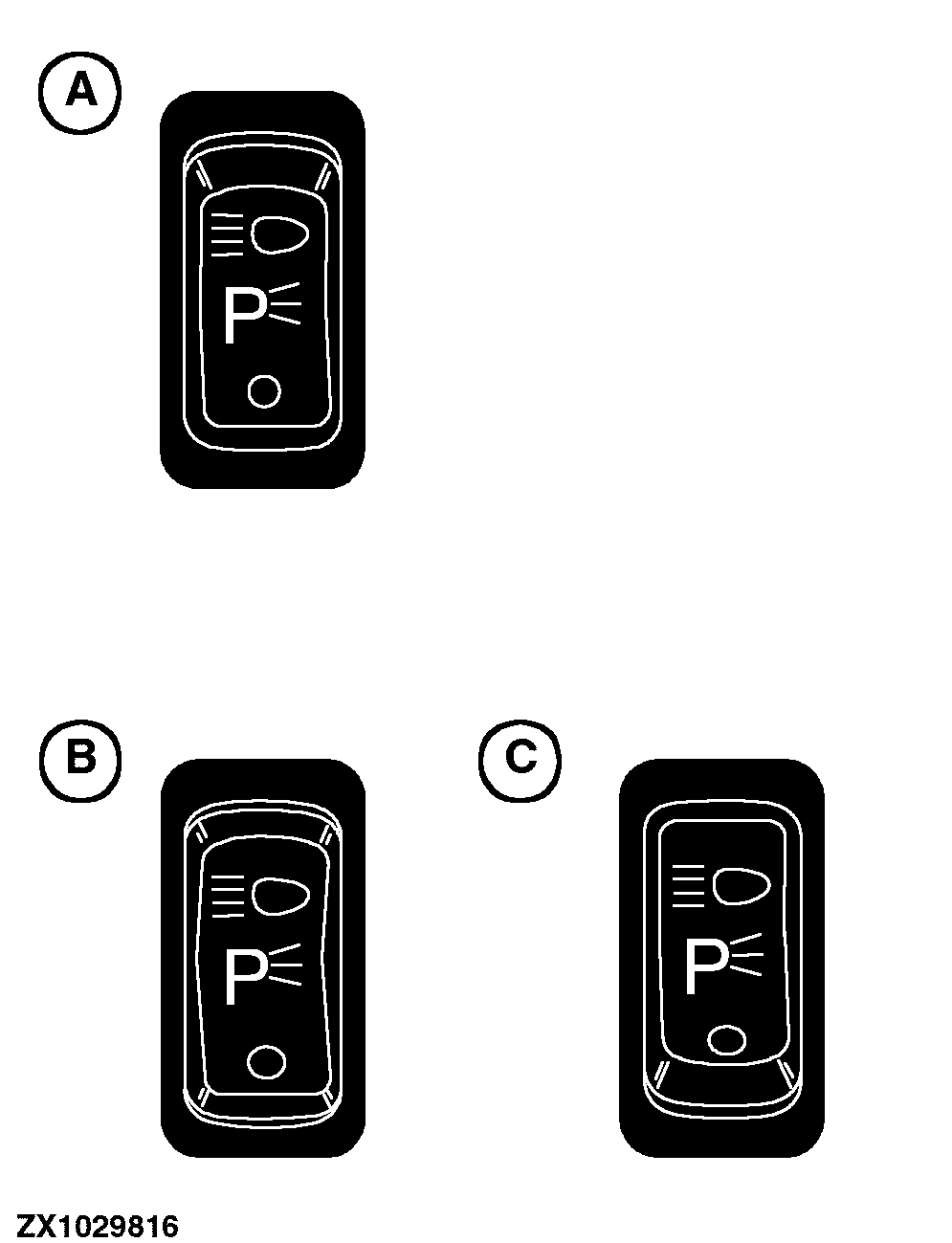

ZX1029816

Road Light Switch

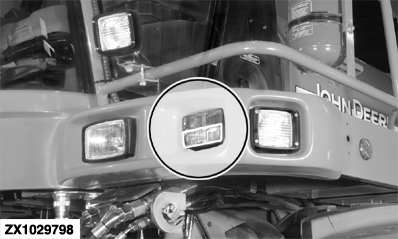

ZX1029798

Warning Lights, Front

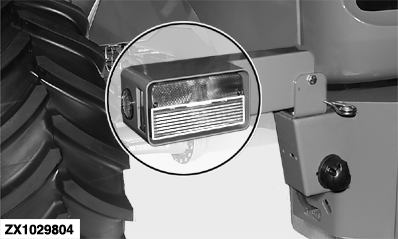

ZX1029804

Warning Lights, Rear

OUZXMAY,00004A4 -19-24AUG02-1/3

The three position road light switch also controls road lights (top switch position).

The road lights at the operator's station are available as:

1. H3 Headlights
2. Double Beam Headlights
3. Xeneon Headlights

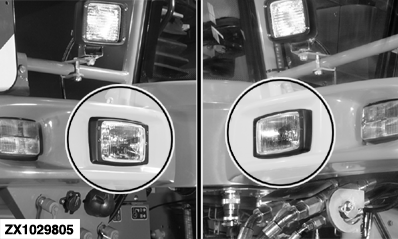

ZX1029805

Road Lights

OUZXMAY,00004A4 -19-24AUG02-2/3

Stop Lights (Acting as Brake Lights)

Additional stop lights for discharge spout extension light up when foot brakes are operated (with ignition turned on).

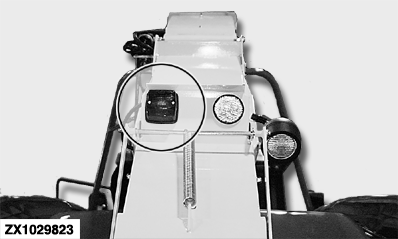

ZX1029823

Stop Lights - Discharge Spout Extension

OUZXMAY,00004A4 -19-24AUG02-3/3
