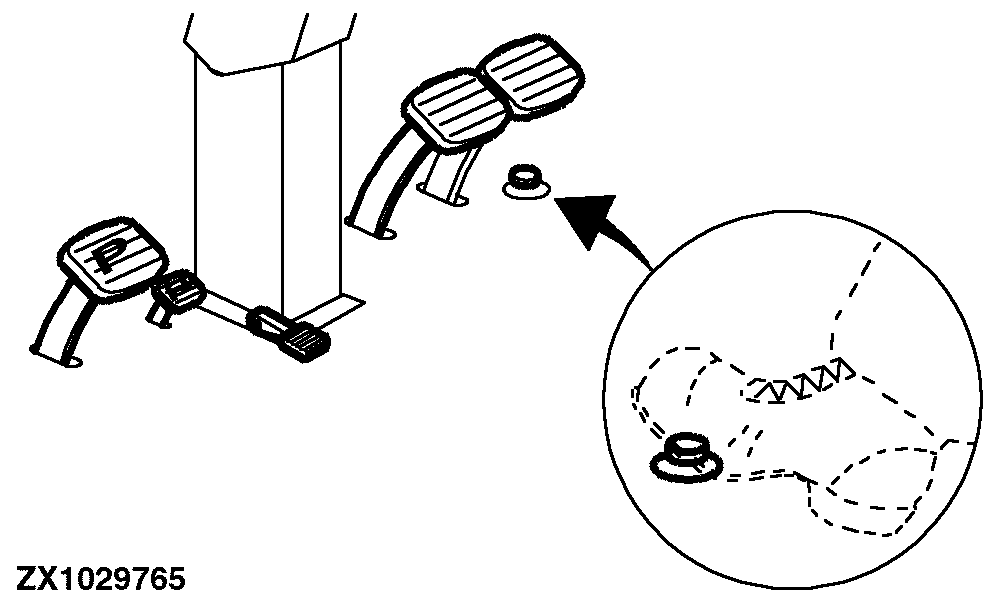

Rear Wheel DriveIMPORTANT: Do not switch rear wheel drive on or off while driving forage harvester in 3rd gear (road gear) at maximum travel speed. Move multi-function lever to a neutral to midway position before switching rear wheel drive on or off. The rear wheel drive system is designed for use in poor traction conditions or when needed to improve steering control. To engage the drive, depress foot switch. To disengage the drive, depress foot switch once again. It is not necessary to engage rear wheel drive for driving forage harvester, except in soft or muddy conditions. In extremely muddy conditions, it may be necessary to apply both brakes momentarily to increase hydrostatic pressure and flow to rear wheels. |
|
OUZXMAY,00004BC -19-24AUG02-1/1 |
