Securing Harvesting Unit Lift Cylinders

causym CAUTION: Before working on raised harvesting unit, install locking pin (A) into guide (B).

Working on Raised Harvesting Unit

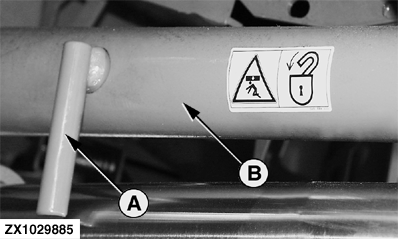

Before working on raised harvesting unit, install locking pin (A) into guide (B).

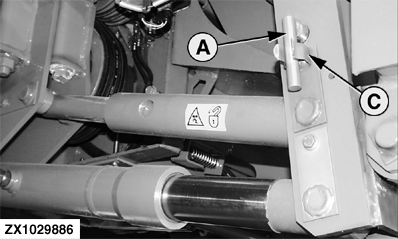

Prior to field operation, reinstall locking pin (A) into mounting (C).

ZX1029885
ZX1029886

OUZXMAY,00004DA -19-28AUG02-1/1
