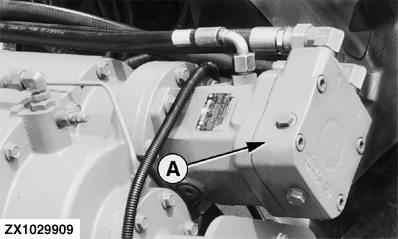

Hydraulic Reverser Motor (IVLOC)

By means of the reverser motor the harvesting unit and the feed rolls can be turned backwards when operating (e.g. metal detector reacts or wrapping of crop in the feeding system); during reversing operation the cutterhead is separated from the length-of-cut transmission by automatic disengagement of the input clutch.

As a second function the hydraulic reverser motor turns cutterhead backwards with input clutch engaged (e.g. when sharpening knives).

NOTE: Reverser motor operation can be interrupted by means of quick stop switch at multi-function lever.
