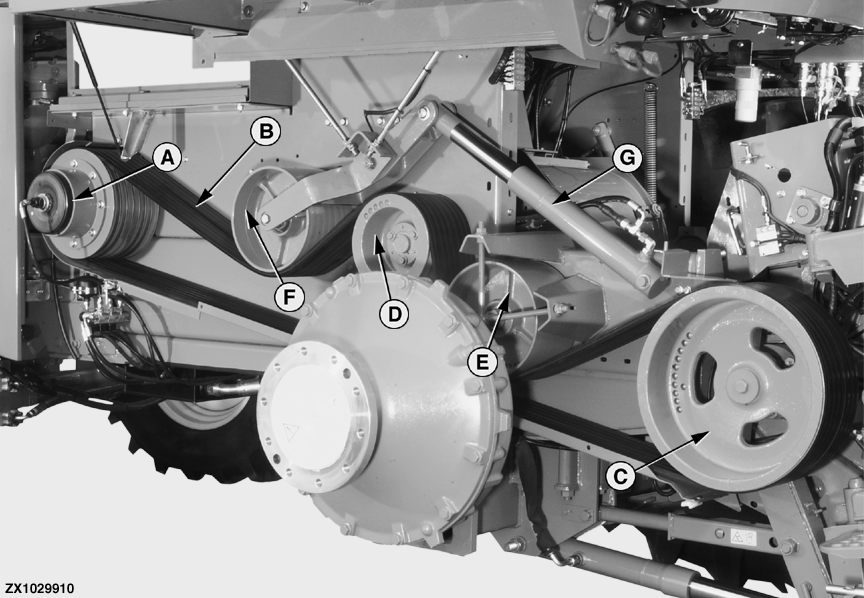

A-Main clutch
B-Multiple V-belts

C-Cutterhead drive pulley
D-Blower fan drive pulley

E-Idler pulley
F-Belt tensioner pulley

G-Tension cylinder

Power is directly transmitted from main clutch (A) to cutterhead drive pulley (C) via multiple V-belts (B).

The multiple V-belts also transmit power to blower fan drive pulley (D).

Idler pulley (E) and tensioner pulley (F) ensure sufficient belt contact with drive pulley (D).

Tension cylinder (G) is supplied with pressure from the charge pump of the hydrostatic drive. When charge pressure drops below 1000 kPa (10 bar; 145 psi), the buzzer will sound and an indicator light will glow.
