Check Main Clutch - In Case of Leaks

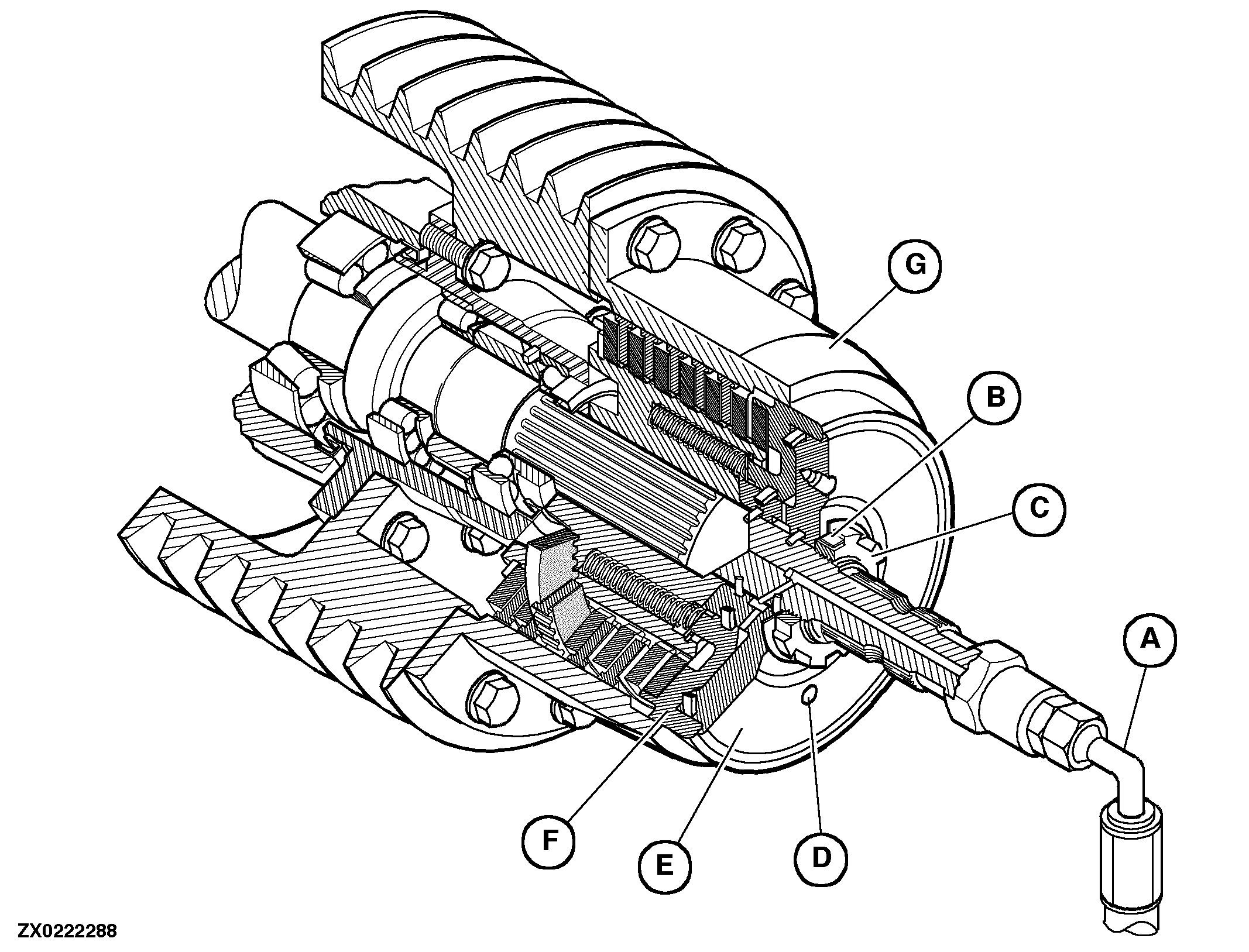

ZX022288


A-Elbow fitting
B-Snap ring


C-Slotted nut
D-Jacking hole


E-Pressure plate
F-Cylinder


G-Clutch housing

causym CAUTION: Before carrying out any adjustment or service work always disengage all drives, shut off engine and wait until all moving parts have stopped.

Remove elbow fitting (A).

Remove snap ring (B) and slotted nut (C).

Install one M10 x 50 screw in each jacking hole (D).

Use screws to pull pressure plate (E) and cylinder (F) out of clutch housing (G).

NOTE: Check seals of pressure plate (E) and cylinder (F) as well and replace, if necessary. Coat new seals slightly with oil and install carefully.

Install by reversing removal procedure.

  • Torque: Slotted nut (C) 300 - 350 N·m (220 - 260 lb-ft).

Specification

Slotted Nut -Torque 300-350 N·m (220-260 lb-ft)

OUZXMAY,000051B -19-07SEP02-1/1
