By means of the fuel shut-off valve located on the left-hand side of the fire wall, fuel flow to the engine can be interrupted (e.g. for service or repair work).

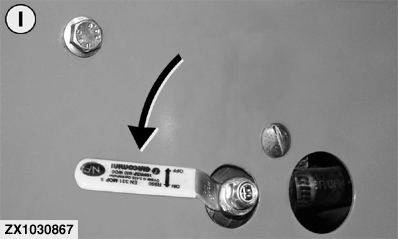

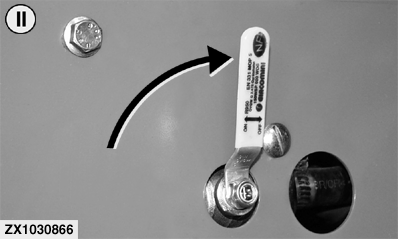

I-Shut-Off Valve Open II-Shut-Off Valve Closed
OUZXMAY,000056D -19-17SEP02-1/1
