Rotary Radiator Screen - Winter Operation

IMPORTANT: Clean rotary radiator screen before starting the engine when iced or covered with snow.

Avoid damage to the drive belt.

When operating forage harvester at temperatures below 0°C (32°F), make sure that rotary radiator screen is free to turn before starting the engine.

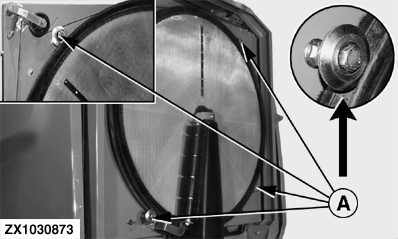

Every 500 hours of operation check rollers (A) for wear.

OUZXMAY,0000576 -19-19SEP02-1/1
