Removing Air Cleaner Primary Element

IMPORTANT: Remove and clean air cleaner element only when red air cleaner indicator light glows.

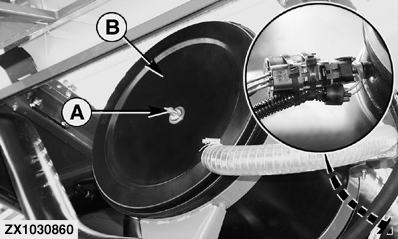

Remove wing nut (A).

Lift off filter cover (B).

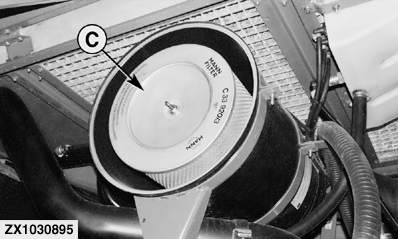

Lift out air cleaner element (C).

IMPORTANT: Never run engine without air cleaner element installed.

A-Wing Nut
B-Filter Cover
C-Air Cleaner (Primary Element)

OUZXMAY,0000582 -19-20SEP02-1/1
