Installing Air Cleaner Element

IMPORTANT: Never use a wet or damp element. Make sure that rear rubber sealing rings are absolutely clean and seated correctly.

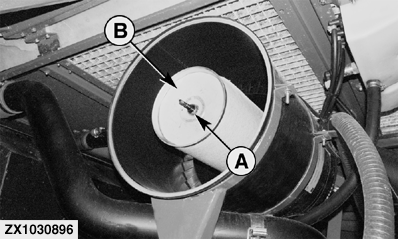

Install safety (secondary) element (B).

Tighten wing nut (A).

Install primary element (C).

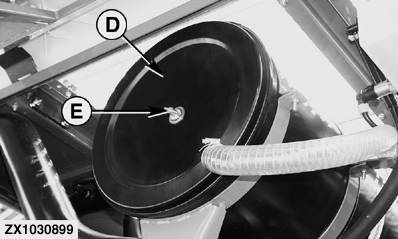

Install filter cover (D) and secure with hex. nut (E).


A-Hex. Nut
B-Safety (Secondary) Element
C-Primary Filter Element
D-Filter Cover
E-Wing Nut

ZX1030896
ZX1030895
ZX1030899

OUZXMAY,0000586 -19-20SEP02-1/1
