Replacing Sharpening Stone

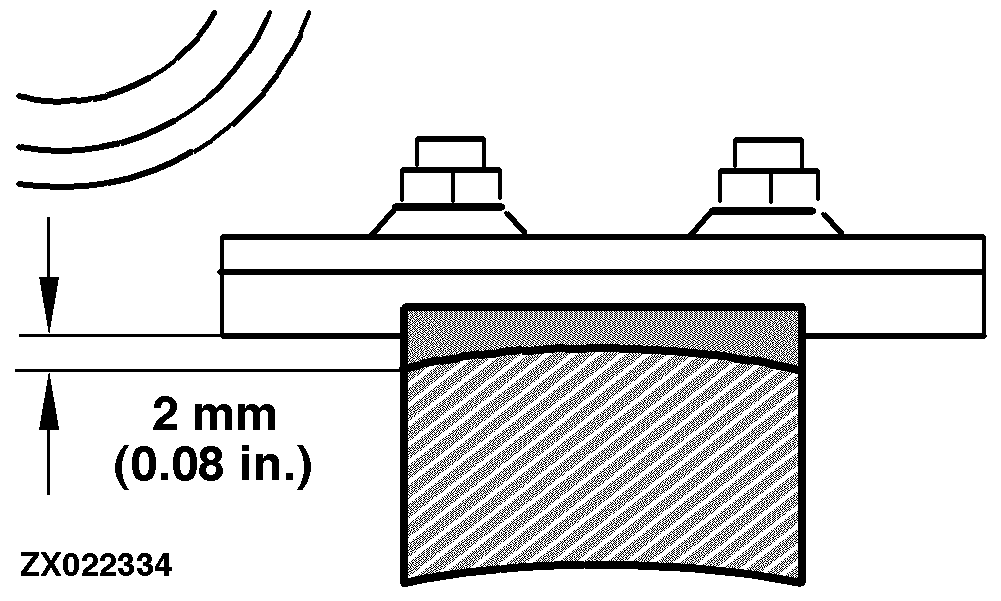

Replace sharpening stone when a distance of 2 mm (0.08 in.) between stone and bracket is reached at the point that is worn most.

CAUTION: Fan and cutterhead may continue to rotate for several minutes after the power is shut off. To avoid bodily injury, do not open or remove any doors or shields until all rotating parts have stopped completely.

NOTE: When replacing stone, make sure that removed parts will not drop into cutterhead.

Open cutterhead guards.

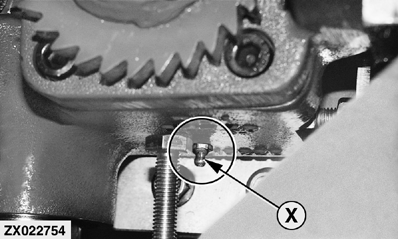

Apply grease at fitting (X) until grease becomes visible around sharpening stone rod guide.

A-Ratchet Stop
B-Ratchet Assembly
C-Fixing Screws
D-Sheets
E-Sharpening Stone
F-Stone Carrier
X-Grease Fitting

OUZXMAY,0000599 -19-22SEP02-1/2

IMPORTANT: Thoroughly clean the complete rod guide before turning back the sharpening stone to the home position.

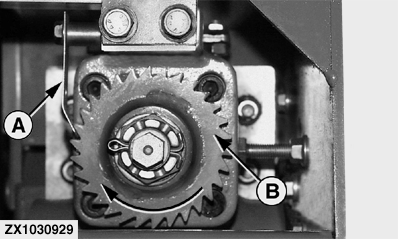

Remove the ratchet stop (A) then turn ratchet assembly (B) clockwise as far as possible so that a new stone can be installed.

Remove sheets (D).

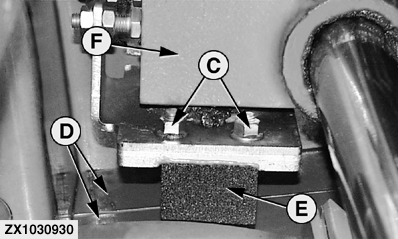

Remove the four stone fixing screws (C).

Replace stone (E) through opening below carrier (F).

Completing Stone Replacement

Re-install sheets (D).

Re-install ratchet stop (A).

Close cutterhead guards.

OUZXMAY,0000599 -19-22SEP02-2/2
