Spiral Floor Adjustment Chart

Adjusting for Corn (Maize)

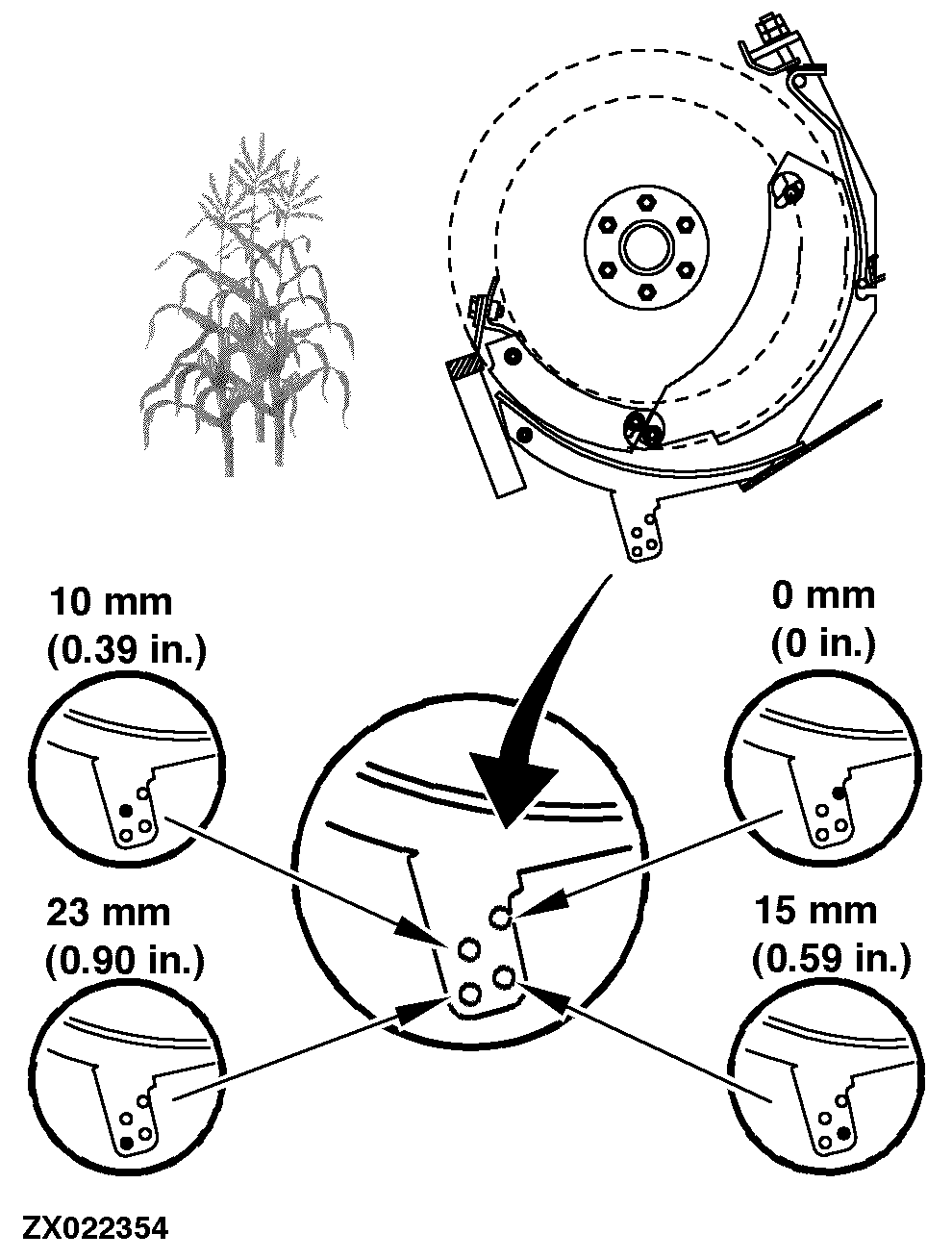

Move the harvesting unit to its operating position (the operating position of the spiral floor is determined by the position of the header and the size of tires fitted to the forage harvester). When using the kernel processor, it is important that the crop is fed between the kernel processor rolls.

ZX022354

OUZXMAY,000059F -19-22SEP02-1/2

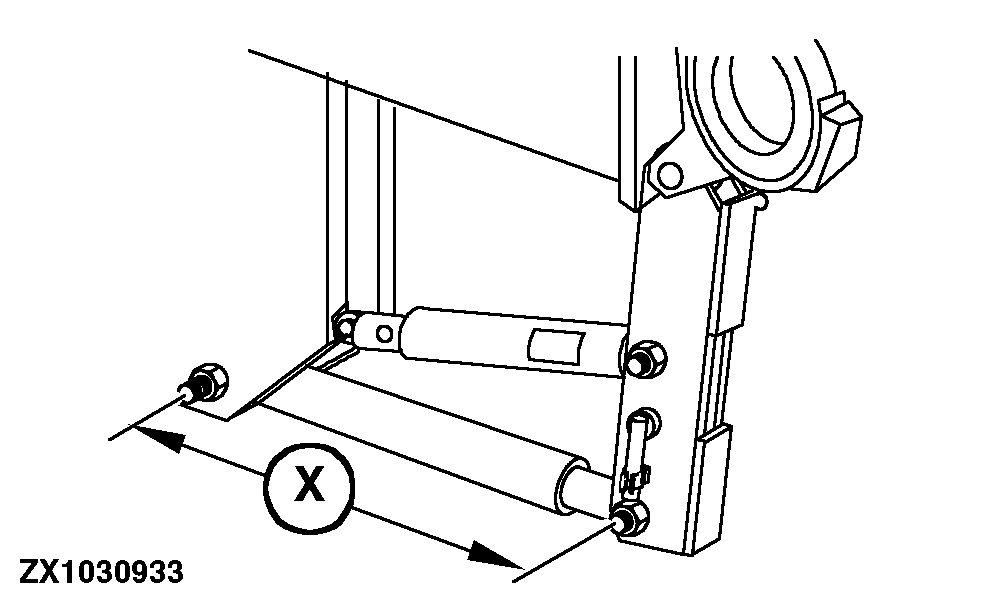

When the header is at its operating height, measure the length of lift cylinder (X) and compare with chart to obtain the correct pin holes you should use.

NOTE: The following chart shows the cylinder length (X) at an operating height of min. 120 mm (0.47 in.).

Lift cylinder length (X) Pin holes
Min. 670 mm (26.4 in. )
Best possible position 680 mm (26.8 in.)
Max. 700 mm (27.6 in.)		 Pin in 0 mm
(0.0 in.) hole
(top rear)

Min. 690 mm (27.2 in.)
Best possible position 700 mm (27.6 in.)
Max. 730 mm (28.7 in.)		 Pin in 10 mm
(0.39 in.) hole
(top front)

Min. 695 mm (27.4 in.)
Best possible position 710 mm (27.9 in.)
Max. 730 mm (28.7 in.)		 Pin in 15 mm
(0.59 in.) hole
(bottom rear)

Min. 710 mm (27.9 in.)
Best possible position 725 mm (28.5 in.)
Max. 750 mm (29.5 in.)		 Pin in 23 mm
(0.90 in.) hole
(bottom front)



Adjust the service cover (see this section and the "Kernel Processor" section).

ZX1030933

OUZXMAY,000059F -19-22SEP02-2/2
