Adjust the Service Cover on the Transition Chute

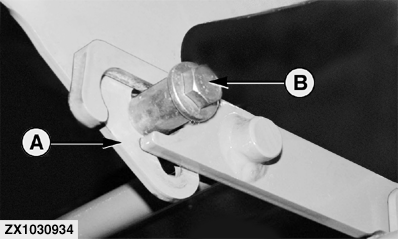

Once the spiral floor has been adjusted (see this Section), set the service cover (A) to the highest possible position. To do this, slacken off screws (B), push the service cover (A) up by hand, and then retighten the screws.

OUZXMAY,00005A0 -19-22SEP02-1/1
