Moving Kernel Processor into Working Position

  • Lift kernel processor slightly by means of chain hoist (A).
    ZX1030952

OUZXMAY,00005A9 -19-24SEP02-1/4

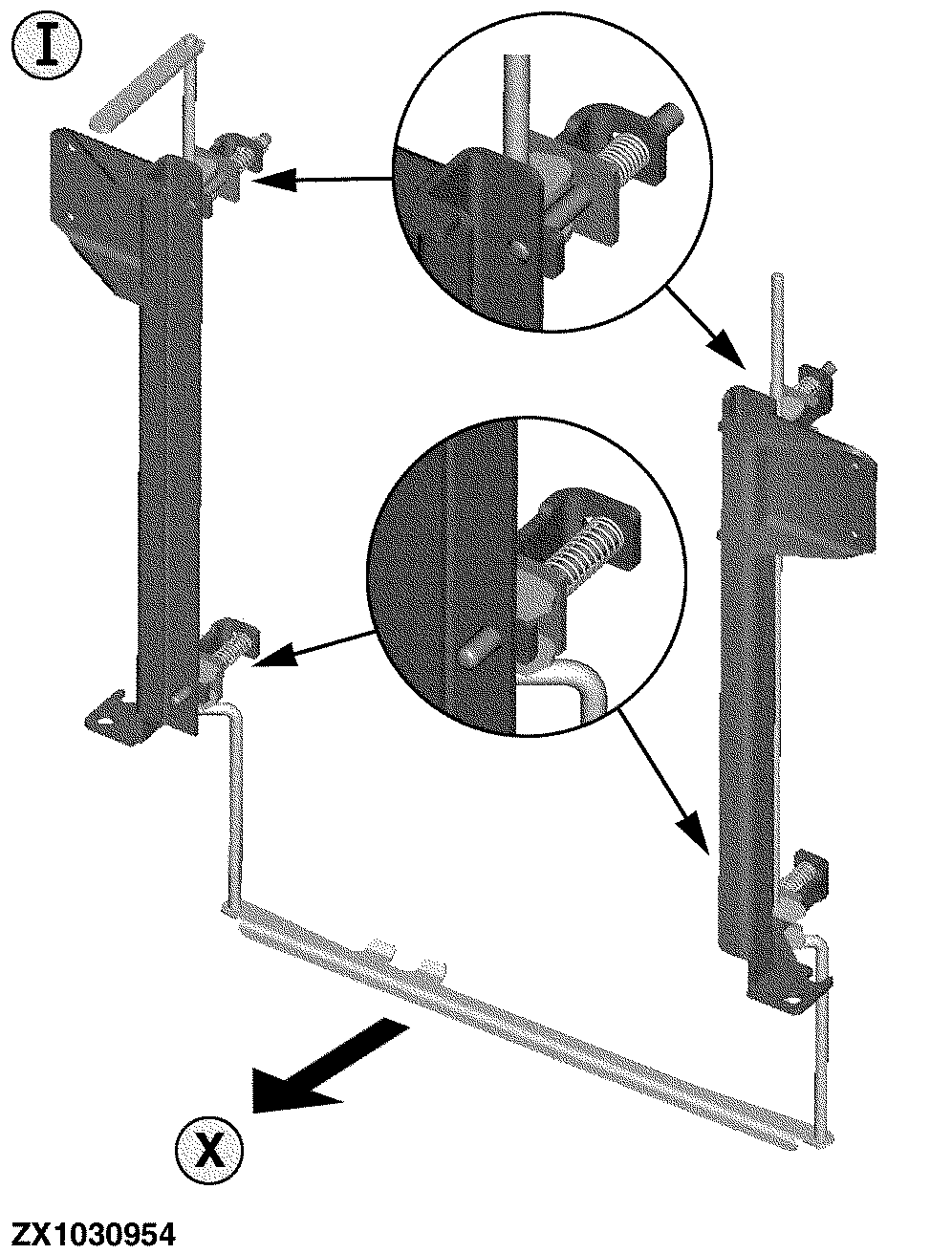

    Lever in work position = Unlock kernel processor to lower from non-operating position to work position.


    I-Locking Device - Work Position
    X-Direction of Travel

    ZX1030954

OUZXMAY,00005A9 -19-24SEP02-2/4

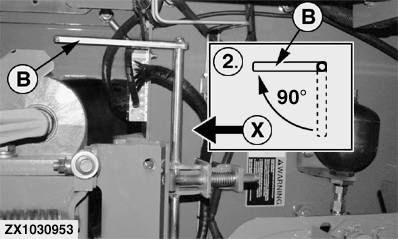

    • Rotate lever (B) 90° to the front.
    • Lower kernel processor by means of chain hoist until it is secured in attaching pins of front axle.
    ZX1030953

OUZXMAY,00005A9 -19-24SEP02-3/4

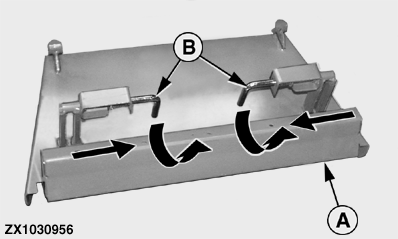

      • Hold upper section of grass transition chute with one hand.
      • On both sides move lock (B) inward and rotate 90° (to the bottom).
      • Disengage upper section (A).
