Adjust the Feed Plate On the Kernel Processor

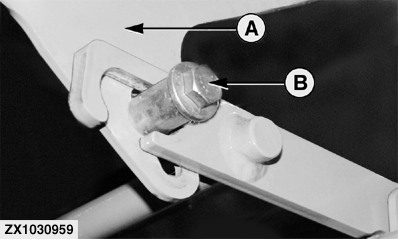

Once the spiral floor has been adjusted (see the "Cutterhead, Drive, Guards, Covers" Section), set the feed plate (A) to the highest possible position. To do this, slacken off screws (B), push the feed plate (A) up by hand, and then retighten the screws.

OUZXMAY,00005AB -19-25SEP02-1/1
