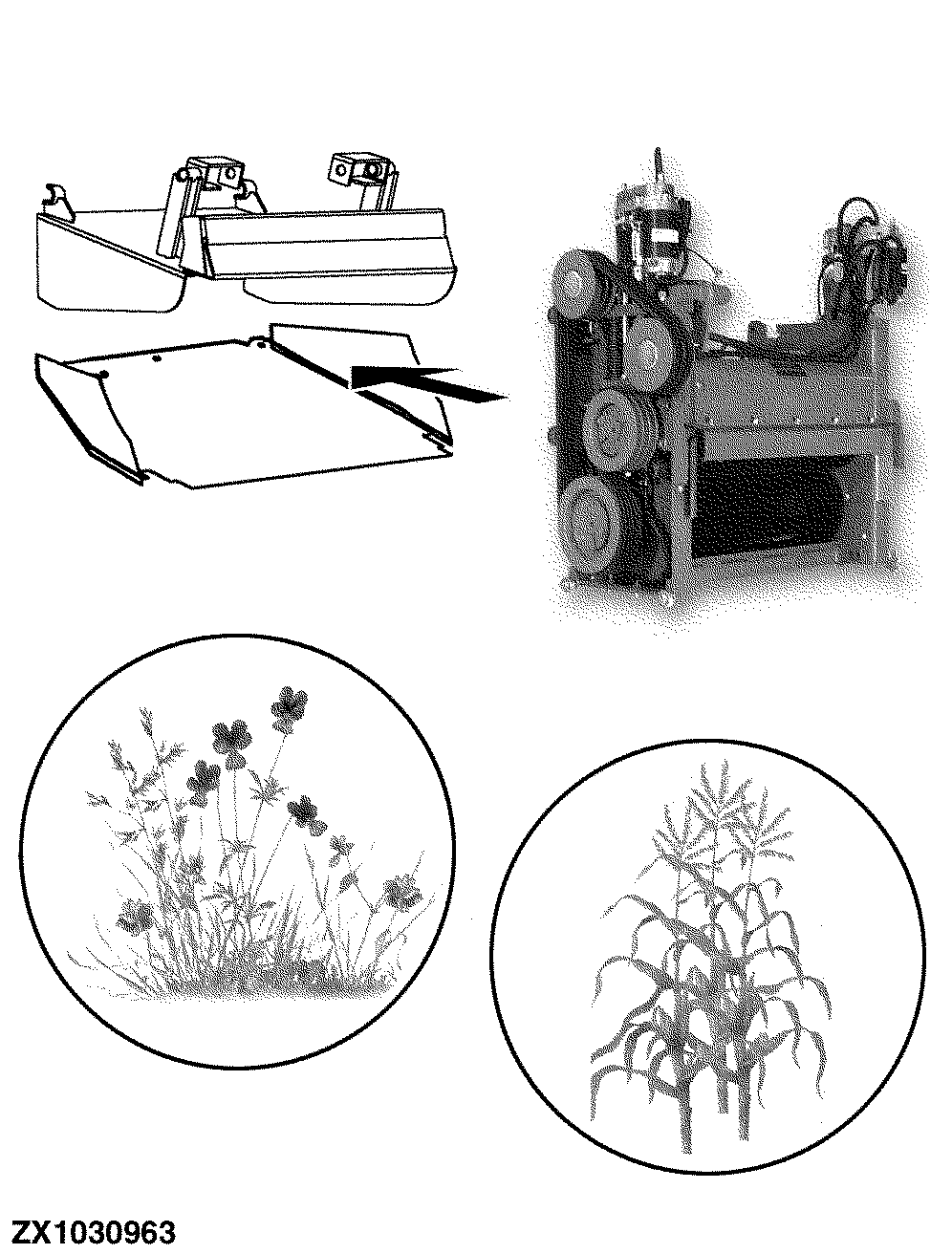

Changing From Kernel Processor to Grass Transition Chute

NOTE: For changing from kernel processor to grass transition chute, reverse the order used for conversion from grass transition chute to kernel processor.

IMPORTANT: Locking device lever must face to the left when raising kernel processor to non-operating position.

Rotate lever (B) 90° to the left.

Lever in non-operating position = Unlock kernel processor to raise from work position to non-operating position.

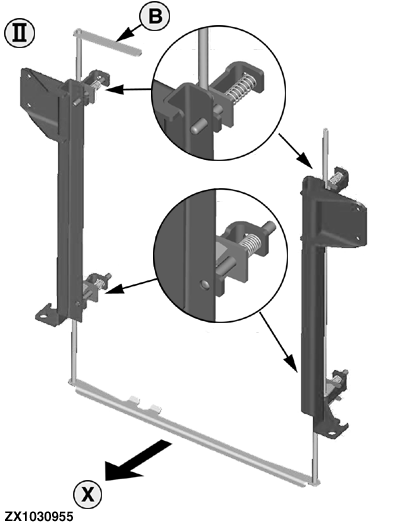

II-Locking Device - Non-Operating Position
X-Direction of Travel

OUZXMAY,00005AD -19-25SEP02-1/1
