Stop Screws for Roll Clearance Adjustment

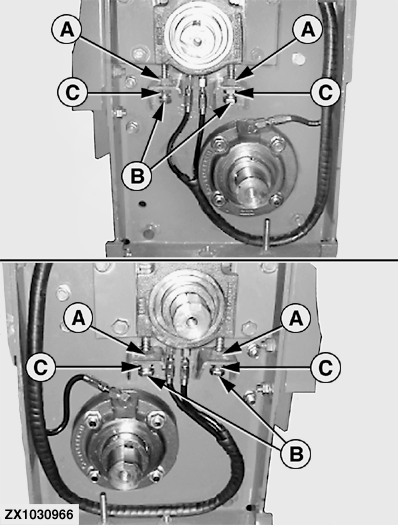

After loosening lock nuts (A), screw the stop screws (B) all the way out.

Set roll clearance to 1 mm (0.04 in.) at right and left (see above).

At both ends, tighten the stop screws (B) until they touch the bearing support.

Retighten lock nuts (A) and (C).
