Adjusting Clearance Indicator

Before adjusting indicator, determine roll clearance on both sides by means of a feeler gauge. Adjust rolls until parallel, if necessary.

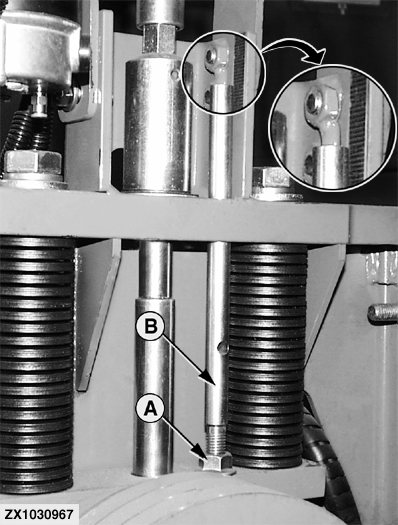

Adjusting Clearance on Scale:

Loosen lock nut (A).

Adjust top edge of indicator rod (B) to the determined measure on the scale (2 mm scale dial).

Tighten lock nut (A).
